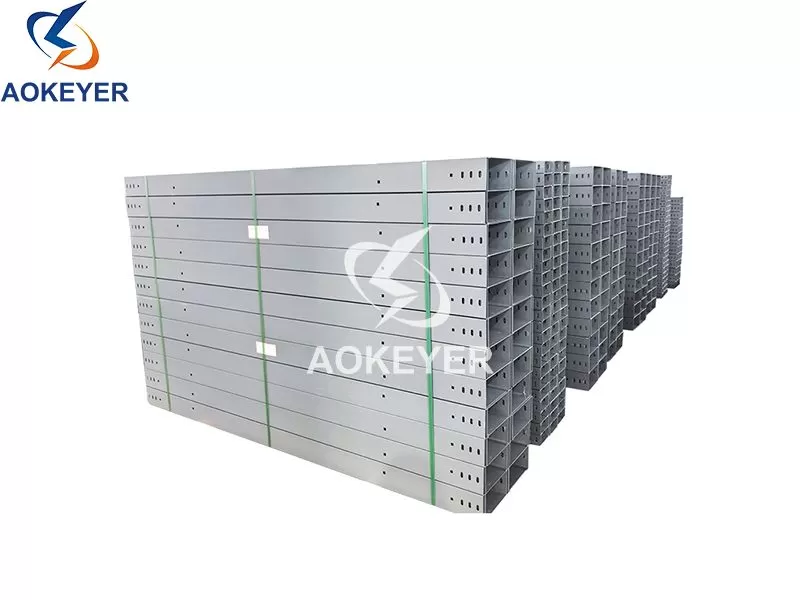

Trough Cable Tray
Trough Cable Tray
XQJ-C type of channel-type cable is fully sealed. It is suitable for Laying computer cable, Communication cable, thermo-coupel cable and control cable with other sensitive system.It has a good effect on the screen interference of control cable and the protection of cable in heavy corrosion envionment.
Download Brochure

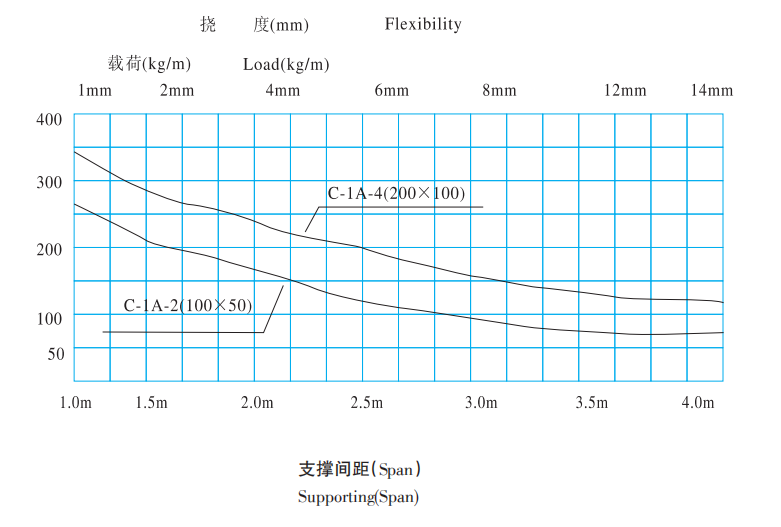

The diagram of the maximumly-permitted uniform load of channel-type cable under different spans

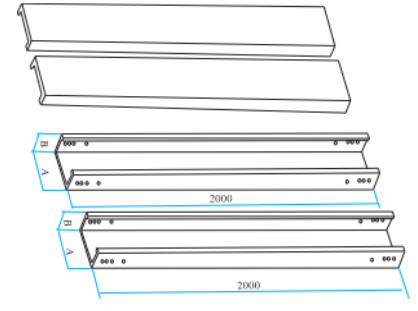

Channel Type Platoid Straight Cable Tray Model XQJ-C-01A
Note: The price of locks is exclusive.
| Model | A×B Specification | kg Weight | Weight | Remark |
| C-1A-1 | 50×25 | 4.81 | 2.12 | When H＞125, each end has 12 connection holes |
| C-1A-2 | 100×50 | 8.81 | 4 | |
| C-1A-3 | 150×75 | 12.82 | 5.8 | |
| C-1A-4 | 200×100 | 22.98 | 8.05 | |
| C-1A-5 | 250×125 | 28.92 | 9.3 | |
| C-1A-6 | 300×150 | 41.58 | 13.53 | |
| C-1A-7 | 400×200 | 69.85 | 21.89 | |
| C-1A-8 | 500×200 | 80.41 | 26.84 | |
| C-1A-9 | 600×200 | 86.10 | 38.17 | |
| C-1A-10 | 800×200 | 101.71 | 58.15 |

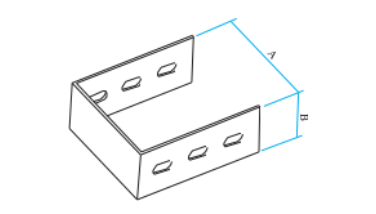

Platiod Straight Cable Tray End Blockate Model XQJ-C-01B
Note: The price of locks is exclusive.
| Model | A×B Specification | kg Weight | Remark |
| C-1B-1 | 43×18 | 0.065 | When B≥140, the connection holes are double-row holes. |
| C-1B-2 | 93×43 | 0.182 | |
| C-1B-3 | 143×68 | 0.351 | |
| C-1B-4 | 190×90 | 0.689 | |
| C-1B-5 | 240×115 | 1.0 | |
| C-1B-6 | 290×140 | 1.37 | |
| C-1B-7 | 387×187 | 2.76 | |
| C-1B-8 | 487×187 | 3.24 | |
| C-1B-9 | 587×187 | 3.72 | |
| C-1B-10 | 787×187 | 4.68 |

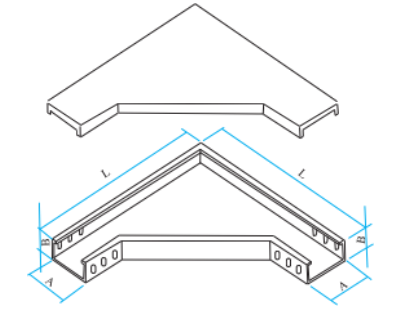

Platiod Horizontal Equant Elbow Jiont Cable Tray Model XQJ-C-2A
Note: The price of locks is exclusive.
| Model | A×B Specification | L | kg Weight | Weight | Remark |
| C-2A-1 | 50×25 | 350 | 3.8 | 1.32 | When H ＞125, 12 connection holes at each end |
| C-2A-2 | 100×50 | 400 | 5.86 | 1.9 | |
| C-2A-3 | 150×75 | 450 | 8.43 | 2.73 | |
| C-2A-4 | 200×100 | 500 | 13.76 | 3.66 | |
| C-2A-5 | 250×125 | 550 | 17.49 | 4.62 | |
| C-2A-6 | 300×150 | 600 | 23.51 | 10.92 | |
| C-2A-7 | 400×200 | 700 | 35.09 | 21.97 | |
| C-2A-8 | 500×200 | 800 | 46.30 | 27.21 | |
| C-2A-9 | 600×200 | 900 | 61.00 | 32.29 | |
| C-2A-10 | 800×200 | 1100 | 82.18 | 46.7 |

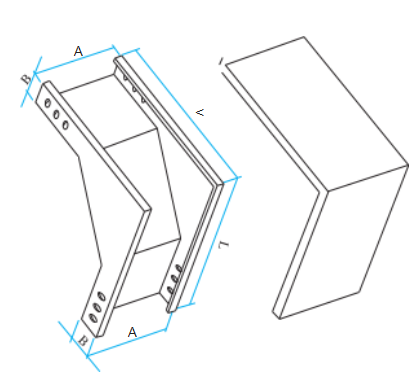

Vertical Equnt Upper Elbow Cable Tray Model XQJ-C-2B
Note: The price of locks is exclusive.
| Model | A×B Specification | L | kg Weight | Weight | Remark |
| C-2B-1 | 50×25 | 325 | 2.71 | 0.81 | When H ＞125, 12 connection holes at each end |
| C-2B-2 | 100×50 | 350 | 4.92 | 1.65 | |
| C-2B-3 | 150×75 | 375 | 6.32 | 2.52 | |
| C-2B-4 | 200×100 | 400 | 11.67 | 3.95 | |
| C-2B-5 | 250×125 | 425 | 13.88 | 4.35 | |
| C-2B-6 | 300×150 | 450 | 18.35 | 5.59 | |
| C-2B-7 | 400×200 | 500 | 31.77 | 11.05 | |
| C-2B-8 | 500×200 | 500 | 36.13 | 13.65 | |
| C-2B-9 | 600×200 | 500 | 40.28 | 16.12 | |
| C-2B-10 | 800×200 | 500 | 51.69 | 21.26 |
Vertical Equnt Lower Elbow Jiont Cable Tray Model XQJ-C-2C
Note: The price of locks is exclusive.
| Model | A×B Specification | L | kg Weight | Weight | Remark |
| C-2C-1 | 50×25 | 325 | 2.52 | 0.66 | When H ＞125, 12 connection holes at each end |
| C-2C-2 | 100×50 | 350 | 4.76 | 1.26 | |
| C-2C-3 | 150×75 | 375 | 6.11 | 1.9 | |
| C-2C-4 | 200×100 | 400 | 11.30 | 2.17 | |
| C-2C-5 | 250×125 | 425 | 12.14 | 2.62 | |
| C-2C-6 | 300×150 | 450 | 17.29 | 3.1 | |
| C-2C-7 | 400×200 | 500 | 30.25 | 5.72 | |
| C-2C-8 | 500×200 | 500 | 35.45 | 7.61 | |
| C-2C-9 | 600×200 | 500 | 39.75 | 8.32 | |
| C-2C-10 | 800×200 | 500 | 48.25 | 10.97 |

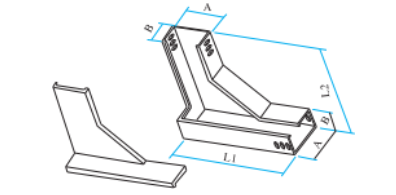

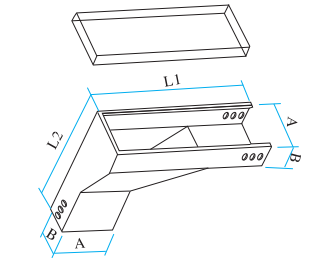

Vertical Equnt Left Lower Elbow Jiont Tray Model XQJ-C-2D
Vertical Equnt Right Lower Elbow Jiont Tray Model XQJ-C-2E
Note: The price of locks is exclusive.
| A×B Specification | kg Weight | Weight | Remark | ||
| A×B | L1 | L2 | |||
| 50×25 | 350 | 325 | 2.55 | 0.81 | When H ＞125, 12 connection holes at each end |
| 100×50 | 400 | 350 | 4.92 | 1.41 | |
| 150×75 | 450 | 375 | 7.38 | 1.99 | |
| 200×100 | 500 | 400 | 12.72 | 2.62 | |
| 250×125 | 550 | 425 | 16.43 | 3.23 | |
| 300×150 | 600 | 450 | 20.56 | 3.89 | |
| 400×200 | 700 | 500 | 43.75 | 8.9 | |
| 500×200 | 800 | 500 | 53.94 | 12.5 | |
| 600×200 | 900 | 500 | 67.32 | 20.76 | |
| 800×200 | 1100 | 500 | 92.61 | 32.8 | |

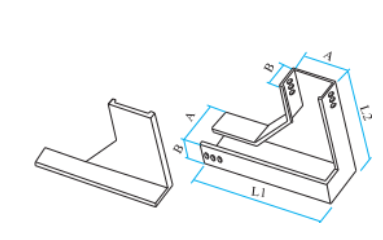

Vertical Equnt Left Upper Elbow Jiont Cable Tray Model XQJ-C-2F
Vertical Equnt Right Upper Elbow Jiont Cable Tray Model XQJ-C-2G
Note: The price of locks is exclusive.
| A×B Specification | kg Weight | Weight | Remark | ||
| A×B | L1 | L2 | |||
| 50×25 | 350 | 325 | 3.12 | 0.45 | When H ＞125, 12 connection holes at each end |
| 100×50 | 400 | 350 | 5.63 | 0.98 | |
| 150×75 | 450 | 375 | 8.5 | 1.58 | |
| 200×100 | 500 | 400 | 14.08 | 2.2 | |
| 250×125 | 550 | 425 | 18.68 | 2.95 | |
| 300×150 | 600 | 450 | 22.2 | 3.72 | |
| 400×200 | 700 | 500 | 45.4 | 8.5 | |
| 500×200 | 800 | 500 | 56.1 | 11.7 | |
| 600×200 | 900 | 500 | 69.4 | 19.23 | |
| 800×200 | 1100 | 500 | 94.32 | 30.18 | |

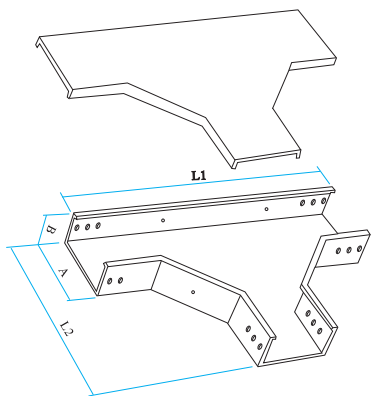

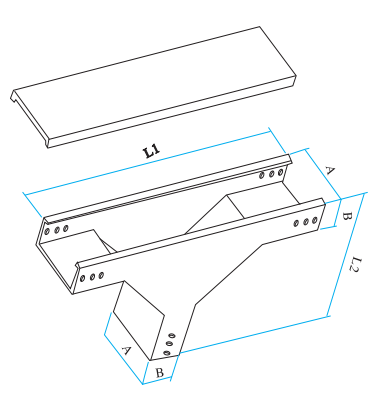

XQJ-C-3A Platiod Horzonal Equant T-jiont Cable Tray
Note: The price of locks is exclusive.
| Model | A×B Specification | kg Weight | Weight | Remark | ||
| A×B | L1 | L2 | ||||
| C-3A-1 | 50×25 | 650 | 350 | 5.75 | 1.95 | When H ＞125, 12 connection holes at each end |
| C-3A-2 | 100×50 | 700 | 400 | 8.49 | 2.91 | |
| C-3A-3 | 150×75 | 750 | 450 | 11.55 | 3.96 | |
| C-3A-4 | 200×100 | 800 | 500 | 18.50 | 5.1 | |
| C-3A-5 | 250×125 | 850 | 550 | 22.65 | 6.37 | |
| C-3A-6 | 300×150 | 900 | 600 | 30.67 | 11.2 | |
| C-3A-7 | 400×200 | 1000 | 700 | 52.2 | 13.2 | |
| C-3A-8 | 500×200 | 1100 | 800 | 63.10 | 17.94 | |
| C-3A-9 | 600×200 | 1200 | 900 | 76.54 | 27.55 | |
| C-3A-10 | 800×200 | 1400 | 1100 | 104.25 | 39.29 | |

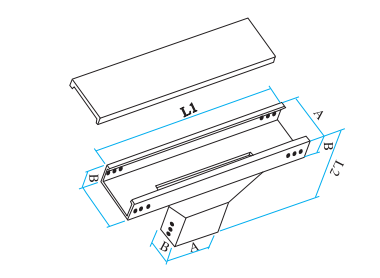

XQJ-C-3B Upper Vertical Equant T-jiont Cable Tray
Note: The price of locks is exclusive.
| Model | A×B Specification | kg Weight | Weight | Remark | ||
| A×B | L1 | L2 | ||||
| C-3B-1 | 50×25 | 625 | 325 | 3.915 | 0.78 | When H ＞125, 12 connection holes at each end |
| C-3B-2 | 100×50 | 650 | 350 | 7.21 | 1.53 | |
| C-3B-3 | 150×75 | 675 | 375 | 10.15 | 2.27 | |
| C-3B-4 | 200×100 | 700 | 400 | 16.14 | 2.97 | |
| C-3B-5 | 250×125 | 725 | 425 | 19.67 | 3.72 | |
| C-3B-6 | 300×150 | 750 | 450 | 23.42 | 4.5 | |
| C-3B-7 | 400×200 | 800 | 500 | 30.12 | 7.02 | |
| C-3B-8 | 500×200 | 800 | 500 | 39.15 | 10.88 | |
| C-3B-9 | 600×200 | 800 | 500 | 44.03 | 12.9 | |
| C-3B-10 | 800×200 | 800 | 500 | 53.84 | 17.00 | |

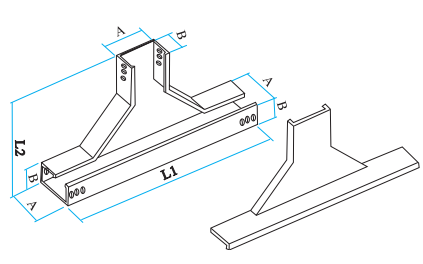

XQJ-C-3C Lower Vertical Equant T-jiont Cable Tray
Note: The price of locks is exclusive.
| Model | A×B Specification | kg Weight | Weight | Remark | ||
| A×B | L1 | L2 | ||||
| C-3C-1 | 50×25 | 625 | 325 | 3.91 | 0.65 | When H > 125, each end has 12 connection holes |
| C-3C-2 | 100×50 | 650 | 350 | 7.11 | 1.23 | |
| C-3C-3 | 150×75 | 675 | 375 | 10.08 | 1.76 | |
| C-3C-4 | 200×100 | 700 | 400 | 16.28 | 2.2 | |
| C-3C-5 | 250×125 | 725 | 425 | 19.93 | 2.67 | |
| C-3C-6 | 300×150 | 750 | 450 | 23.77 | 3.14 | |
| C-3C-7 | 400×200 | 800 | 500 | 37.51 | 4.54 | |
| C-3C-8 | 500×200 | 800 | 500 | 41.12 | 5.59 | |
| C-3C-9 | 600×200 | 800 | 500 | 47.54 | 8.33 | |
| C-3C-10 | 800×200 | 800 | 500 | 57.57 | 10.93 | |

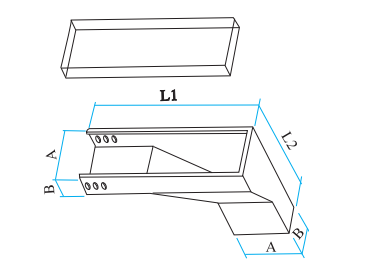

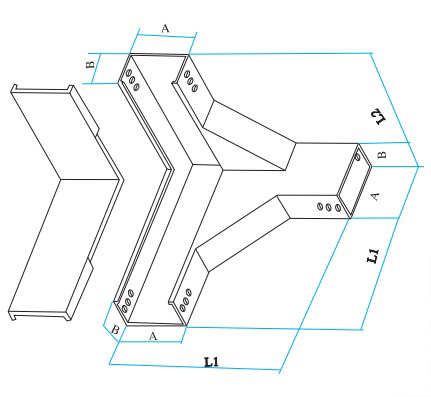

XQJ-C-3D Catadrome Side Vertical Equant T-jiont Cable Tray
Note: The price of locks is exclusive.
| Model | Specification | kg Weight | Weight | Remark | ||
| A×B | L1 | L2 | ||||
| C-3D-1 | 50×25 | 650 | 325 | 3.75 | 0.81 | When H > 125, each end has 12 connection holes |
| C-3D-2 | 100×50 | 700 | 350 | 7.03 | 1.65 | |
| C-3D-3 | 150×75 | 750 | 375 | 10.41 | 2.52 | |
| C-3D-4 | 200×100 | 800 | 400 | 17.02 | 3.39 | |
| C-3D-5 | 250×125 | 850 | 450 | 21.51 | 4.35 | |
| C-3D-6 | 300×150 | 900 | 500 | 26.29 | 5.4 | |
| C-3D-7 | 400×200 | 1000 | 500 | 45.40 | 8.8 | |
| C-3D-8 | 500×200 | 1100 | 500 | 52.31 | 14.96 | |
| C-3D-9 | 600×200 | 1200 | 500 | 63.3 | 19.4 | |
| C-3D-10 | 800×200 | 1300 | 500 | 82.34 | 27.63 | |
XQJ-C-3E Catadrome Side Vertical Equant T-jiont Cable Tray
Note: The price of locks is exclusive.
| Model | A×B Specification | kg Weight | Weight | Remark | ||
| A×B | L1 | L2 | ||||
| C-3E-1 | 50×25 | 650 | 325 | 4.23 | 0.64 | When H > 125, each end has 12 connection holes |
| C-3E-2 | 100×50 | 700 | 350 | 8.16 | 1.48 | |
| C-3E-3 | 150×75 | 750 | 375 | 11.21 | 2.08 | |
| C-3E-4 | 200×100 | 800 | 400 | 18.3 | 2.71 | |
| C-3E-5 | 250×125 | 850 | 450 | 22.4 | 3.64 | |
| C-3E-6 | 300×150 | 900 | 500 | 27.43 | 5.33 | |
| C-3E-7 | 400×200 | 1000 | 500 | 53.2 | 7.41 | |
| C-3E-8 | 500×200 | 1100 | 500 | 59.8 | 10.92 | |
| C-3E-9 | 600×200 | 1200 | 500 | 71.2 | 15.01 | |
| C-3E-10 | 800×200 | 1300 | 500 | 93.3 | 24.05 | |

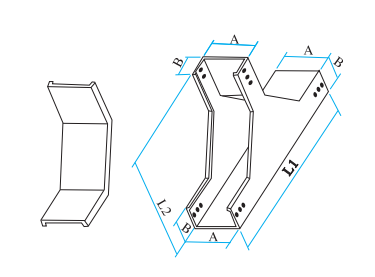

XQJ-C-3F Upper Corner Vertical T-jiont Cable Tray
Note: The price of locks is exclusive.
| Model | A×B Specification | kg Weight | Weight | Remark | ||
| A×B | L1 | L2 | ||||
| C-3F-1 | 50×25 | 350 | 325 | 4.92 | 1.32 | When H > 125, each end has 12 connection holes |
| C-3F-2 | 100×50 | 400 | 350 | 7.83 | 1.9 | |
| C-3F-3 | 150×75 | 450 | 375 | 11.29 | 2.73 | |
| C-3F-4 | 200×100 | 500 | 400 | 15.58 | 3.66 | |
| C-3F-5 | 250×125 | 550 | 425 | 23.56 | 4.62 | |
| C-3F-6 | 300×150 | 600 | 450 | 30.53 | 7.56 | |
| C-3F-7 | 400×200 | 700 | 500 | 52.3 | 10.92 | |
| C-3F-8 | 500×200 | 800 | 500 | 68.5 | 14.78 | |
| C-3F-9 | 600×200 | 900 | 500 | 81.2 | 19.11 | |
| C-3F-10 | 800×200 | 1100 | 500 | 103.5 | 30.81 | |
XQJ-C-3G Upper Corner Vertical T-jiont Cable Tray
Note: The price of locks is exclusive.
| Model | A×B Specification | kg Weight | Weight | Remark | ||
| A×B | L1 | L2 | ||||
| C-3G-1 | 50×25 | 350 | 325 | 4.41 | 0.79 | When H > 125, each end has 12 connection holes |
| C-3G-2 | 100×50 | 400 | 350 | 7.77 | 1.53 | |
| C-3G-3 | 150×75 | 450 | 375 | 11.32 | 2.27 | |
| C-3G-4 | 200×100 | 500 | 400 | 19.02 | 2.96 | |
| C-3G-5 | 250×125 | 550 | 425 | 23.61 | 3.71 | |
| C-3G-6 | 300×150 | 600 | 450 | 28.92 | 4.5 | |
| C-3G-7 | 400×200 | 700 | 500 | 50.1 | 7.07 | |
| C-3G-8 | 500×200 | 800 | 500 | 59.3 | 10.25 | |
| C-3G-9 | 600×200 | 900 | 500 | 68.5 | 16.1 | |
| C-3G-10 | 800×200 | 1100 | 500 | 92.3 | 25.5 | |

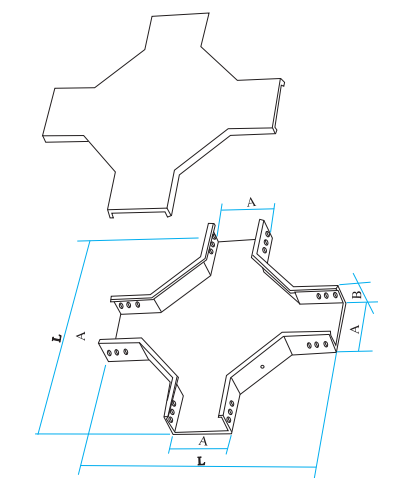

XQJ-C-4A Horizonal Equant Cross Cable Tray
| Model | A×B Specification | kg Weight | Weight | Remark | |
| A×B | L | ||||
| C-4A-1 | 50×25 | 650 | 7.85 | 2.79 | When H > 125, each end has 12 connection holes |
| C-4A-2 | 100×50 | 700 | 10.63 | 4.08 | |
| C-4A-3 | 150×75 | 750 | 14.97 | 5.39 | |
| C-4A-4 | 200×100 | 800 | 25.19 | 6.74 | |
| C-4A-5 | 250×125 | 850 | 27.91 | 8.33 | |
| C-4A-6 | 300×150 | 900 | 36.2 | 12.99 | |
| C-4A-7 | 400×200 | 1000 | 62.3 | 17.8 | |
| C-4A-8 | 500×200 | 1100 | 72.1 | 23.13 | |
| C-4A-9 | 600×200 | 1200 | 85.5 | 29.87 | |
| C-4A-10 | 800×200 | 1400 | 112.25 | 43.21 | |

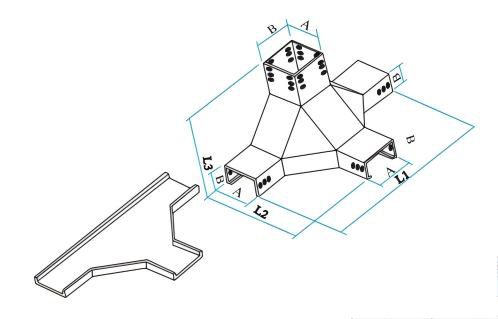

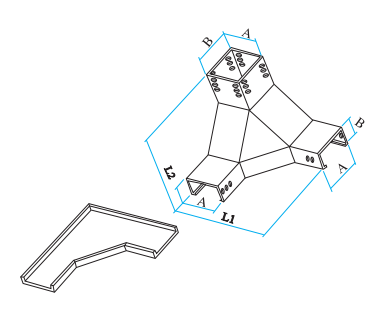

XQJ-C-4B Upper Vertical Equant Cross Cable Tray
Model | Specification | kg Weight | Weight | Remark | |||
| A×B | L1 | L2 | L3 | ||||
| C-4B-1 | 50×25 | 650 | 325 | 325 | 5.22 | 1.95 | When H > 125, each end has 12 connection holes |
| C-4B-2 | 100×50 | 700 | 350 | 350 | 8.82 | 2.91 | |
| C-4B-3 | 150×75 | 750 | 375 | 375 | 12.62 | 3.96 | |
| C-4B-4 | 200×100 | 800 | 400 | 400 | 20.34 | 5.12 | |
| C-4B-5 | 250×125 | 850 | 425 | 425 | 25.41 | 6.38 | |
| C-4B-6 | 300×150 | 900 | 450 | 450 | 34.16 | 11.2 | |
| C-4B-7 | 400×200 | 1000 | 700 | 600 | 63.21 | 13.2 | |
| C-4B-8 | 500×200 | 1100 | 800 | 600 | 82.31 | 17.94 | |
| C-4B-9 | 600×200 | 1200 | 900 | 600 | 91.56 | 27.55 | |
| C-4B-10 | 800×200 | 1400 | 1100 | 600 | 118.5 | 39.29 | |
XQJ-C-5A Upper Flat Reducing Jiont Cable Tray
XQJ-C-5B Upper Flat Reducing Jiont Cable Tray
XQJ-C-5C Lower Flat Reducing Jiont Cable Tray
XQJ-C-5D Lower Flat Reducing Jiont Cable Tray
Note: The price of locks is exclusive.
| Model | Specification A1×B1-A2×B2 | L | kg Weight | Weight | Remark |
| C-5B-1 | 50×25-100×50 | 350 | 1.28 | 0.9 | When H＞125, each end has 12 connection holes |
| C-5B-2 | 50×25-150×75 | 400 | 2.01 | 1.41 | |
| C-5B-3 | 50×25-200×100 | 450 | 3.59 | 2.51 | |
| C-5B-4 | 50×25-250×125 | 500 | 4.49 | 3.14 | |
| C-5B-5 | 50×25-300×150 | 550 | 8.64 | 6.05 | |
| C-5B-6 | 50×25-400×200 | 700 | 16.24 | 11.37 | |
| C-5B-7 | 50×25-500×200 | 800 | 20.90 | 14.63 | |
| C-5B-8 | 50×25-600×200 | 900 | 26.41 | 18.49 | |
| C-5B-9 | 50×25-800×200 | 1100 | 40.35 | 28.25 | |
| C-5B-10 | 100×50-150×75 | 350 | 2.23 | 1.56 | |
| C-5B-11 | 100×50-200×100 | 400 | 3.85 | 2.78 | |
| C-5B-12 | 100×50-250×125 | 450 | 4.77 | 3.34 | |
| C-5B-13 | 100×50-300×150 | 500 | 8.86 | 6.20 | |
| C-5B-14 | 100×50-400×200 | 650 | 16.59 | 11.61 | |
| C-5B-15 | 100×50-500×200 | 750 | 21.33 | 14.93 | |
| C-5B-16 | 100×50-600×200 | 850 | 26.64 | 18.65 | |
| C-5B-17 | 100×50-800×200 | 1050 | 38.85 | 27.20 | |
| C-5B-18 | 150×75-200×100 | 350 | 3.61 | 2.53 | |
| C-5B-19 | 150×75-250×125 | 400 | 4.92 | 3.44 | |
| C-5B-20 | 150×75-300×100 | 450 | 8.64 | 6.05 | |
| C-5B-21 | 150×75-400×200 | 600 | 16.31 | 11.42 | |
| C-5B-22 | 150×75-500×200 | 700 | 21.19 | 14.83 | |
| C-5B-23 | 150×75-600×200 | 800 | 26.53 | 18.57 | |
| C-5B-24 | 150×75-800×200 | 1000 | 39.11 | 27.38 | |
| C-5B-25 | 200×100-250×125 | 350 | 4.42 | 3.10 | |
| C-5B-26 | 200×100-300×150 | 400 | 8.16 | 5.71 | |
| C-5B-27 | 200×100-400×200 | 450 | 15.70 | 11.00 | |
| C-5B-28 | 200×100-500×200 | 650 | 20.60 | 14.42 | |
| C-5B-29 | 200×100-600×200 | 750 | 26.07 | 18.25 | |
| C-5B-30 | 200×100-800×200 | 950 | 38.67 | 27.00 | |
| C-5B-31 | 250×125-300×125 | 350 | 7.54 | 5.28 | |
| C-5B-32 | 250×125-400×200 | 500 | 14.94 | 10.46 | |
| C-5B-33 | 250×125-500×200 | 600 | 19.95 | 13.97 | |
| C-5B-34 | 250×125-600×200 | 700 | 25.78 | 18.05 | |
| C-5B-35 | 250×125-800×200 | 900 | 38.43 | 26.90 | |
| C-5B-36 | 300×150-400×200 | 450 | 16.72 | 11.70 | |
| C-5B-37 | 300×150-500×200 | 550 | 21.86 | 15.30 | |
| C-5B-38 | 300×150-600×200 | 650 | 27.50 | 19.25 | |
| C-5B-39 | 300×150-800×200 | 850 | 39.04 | 27.33 | |
| C-5B-40 | 400×200-500×200 | 500 | 42.93 | 30.05 | |
| C-5B-41 | 400×200-600×200 | 600 | 55.64 | 38.95 | |
| C-5B-42 | 400×200-800×200 | 800 | 71.74 | 50.22 | |
| C-5B-43 | 500×200-600×200 | 500 | 48.74 | 34.12 | |
| C-5B-44 | 500×200-800×200 | 700 | 77.58 | 46.55 | |
| C-5B-45 | 600×200-800×200 | 600 | 69.30 | 41.58 |
