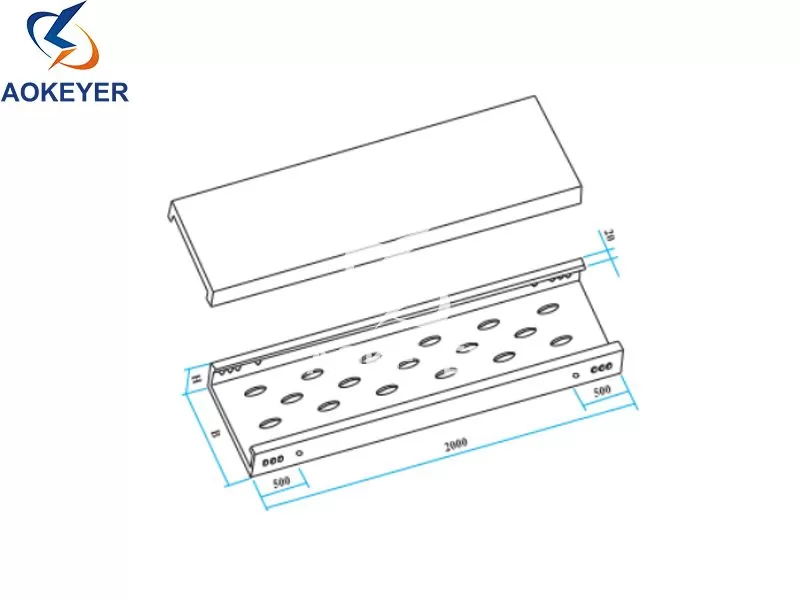

Tray-type Cable XQJ-P1

Product Detail

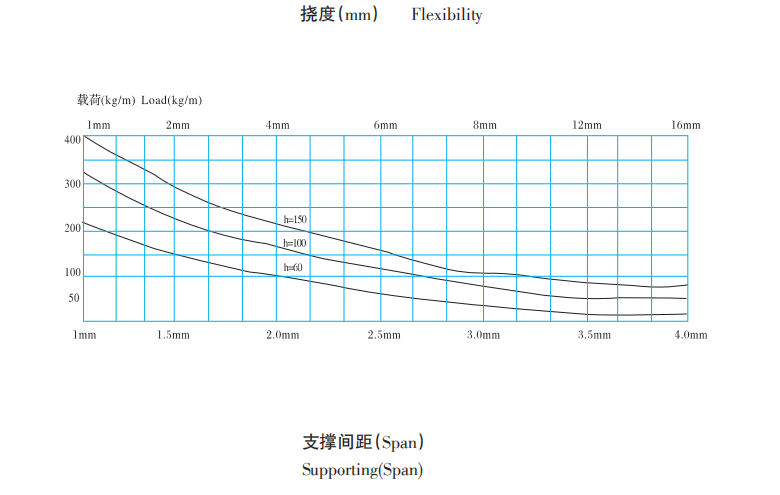

The diagram of the maximumly-permitted uniform Load of Tray-type cable under different spans

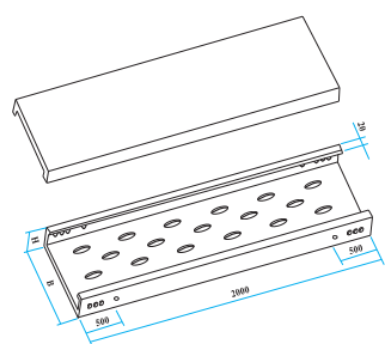

Tray Type Straight Cable Tray Model XQJ-P1-01

Tray-type Cable XQJ-P1

Note: The price of locks is exclusive.

Model	B	H	kg Weight	Weight	Remark
P1-01-6-2	200	60	16.85	8.69	When H=60 H=100, each end has 6 connection holes When H=150, each end has 12 connection holes
P1-01-10-2		100	20.76
P1-01-15-2		150	25.68
P1-01-6-3	300	60	21.22	14.60
P1-01-10-3		100	25.68
P1-01-15-3		150	30.6
P1-01-6-4	400	60	26.64	23.60
P1-01-10-4		100	38.28
P1-01-15-4		150	49.01
P1-01-6-5	500	60	45.5	26.84
P1-01-10-5		100	50.67
P1-01-15-5		150	57.22
P1-01-6-6	600	60	52.14	38.17
P1-01-10-6		100	60.71
P1-01-15-6		150	63.7
P1-01-6-8	800	60	65.39	50.05
P1-01-10-8		100	70.59
P1-01-15-8		150	77.22

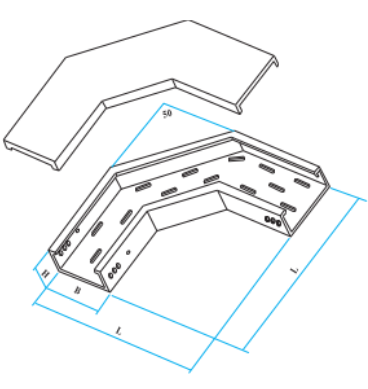

Tray Type Horizontal Elbow Jiont Cable Tray Model XQJ-P1-02

Tray-type Cable XQJ-P1

Note: The price of locks is exclusive.

Model	B	H	L	kg Weight	Weight	Remark
P1-02-6-2	200	60	500	6.72	3.47	When H=60 H=100, each end has 6 connection holes When H=150, each end has 12 connection holes
P1-02-10-2		100	500	7.95
P1-02-15-2		150	600	10.47
P1-02-6-3	300	60		9.23	6.14
P1-02-10-3		100		10.65
P1-02-15-3		150	700	13.65
P1-02-6-4	400	60		13.2	10.36
P1-02-10-4		100		18.6
P1-02-15-4		150	800	22.8
P1-02-6-5	500	60		22.44	14.56
P1-02-10-5		100		24.96
P1-02-15-5		150	900	31.9
P1-02-6-6	600	60		28.08	21.28
P1-02-10-6		100		30.84
P1-02-15-6		150	1000	36.51
P1-02-6-8	800	60	1100	40.89	32.75
P1-02-10-8		100	1100	44.14
P1-02-15-8		150	1200	50.2

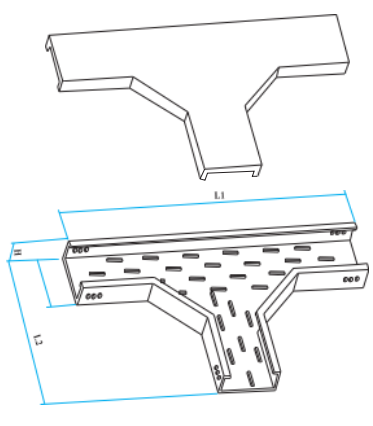

Tray Type Horizontal T-jiont Cable Tray Model XQJ-P1-03

Tray-type Cable XQJ-P1

Note: The price of locks is exclusive.

Model	B	H	L1	L2	kg Weight	Weight	Remark
P1-03-6-2	200	60	800	500	10.95	5.1	When H=60 H=100, each end has 6 connection holes When H=150, each end has 12 connection holes
P1-03-10-2		100	800	500	13.54
P1-03-15-2		150	800	500	20.1
P1-03-6-3	300	60	900	600	15.6	11.2
P1-03-10-3		100	900	600	18.3
P1-03-15-3		150	900	600	24.5
P1-03-6-4	400	60	900	600	24.28	13.2
P1-03-10-4		100	1000	700	27.95
P1-03-15-4		150	1000	700	31.2
P1-03-6-5	500	60	1100	800	30.6	17.94
P1-03-10-5		100	1100	800	34.5
P1-03-15-5		150	1100	800	41.8
P1-03-6-6	600	60	1200	900	38.5	27.55
P1-03-10-6		100		900	42.5
P1-03-15-6		150		900	52.3
P1-03-6-8	800	60	1400	1100	56.1	39.29
P1-03-10-8		100		1100	59.5
P1-03-15-8		150		1100	68.3

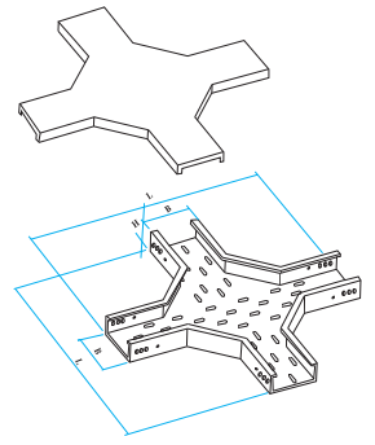

Tray Type Horizontal Cross Cable Tray Model XQJ-P1-04

Tray-type Cable XQJ-P1

Note: The price of locks is exclusive.

Model	B	H	L	kg Weight	Weight	Remark
P1-04-6-2	200	60	800	12.93	6.74	When H=60 H=100, each end has 6 connection holes When H=150, each end has 12 connection holes
P1-04-10-2		100	800	16.5
P1-04-15-2		150	800	26.1
P1-04-6-3	300	60	900	19.36	12.99
P1-04-10-3		100	900	21.3
P1-04-15-3		150	900	30.5
P1-04-6-4	400	60	1000	28.9	17.8
P1-04-10-4		100	1000	32.5
P1-04-15-4		150	1000	43.2
P1-04-6-5	500	60	1100	34.3	23.13
P1-04-10-5		100	1100	39.6
P1-04-15-5		150	1100	53.6
P1-04-6-6	600	60	1200	45.2	29.87
P1-04-10-6		100	1200	49.3
P1-04-15-6		150	1200	62.8
P1-04-6-8	800	60	1400	64.6	43.21
P1-04-10-8		100	1400	67.6
P1-04-15-8		150	1400	82.3

Tray Type Horizontal Concave Elbow Jiont Cable Tray Model XQJ-P1-05A

Tray-type Cable XQJ-P1

Note: The price of locks is exclusive.

Model	B	H	L	kg Weight	Weight	Remark
P1-05A-6-2	200	60	360	5.98	2.17	When H=60H=100, each end has 6 connection holes When H=150, each end has 12 connection holes
P1-05A-10-2		100	400	7.83
P1-05A-15-2		150	450	13
P1-05A-6-3	300	60	360	10.79	3.1
P1-05A-10-3		100	400	12.78
P1-05A-15-3		150	450	15.24
P1-05A-6-4	400	60	360	12.34	4.4
P1-05A-10-4		100	400	14.85
P1-05A-15-4		150	450	19.6
P1-05A-6-5	500	60	360	13.56	5.39
P1-05A-10-5		100	400	17.23
P1-05A-15-5		150	450	23.06
P1-05A-6-6	600	60	360	24.54	6.4
P1-05A-10-6		100	400	27.83
P1-05A-15-6		150	450	33.64
P1-05A-6-8	800	60	360	32.33	8.44
P1-05A-10-8		100	400	36.45
P1-05A-15-8		150	450	45.68

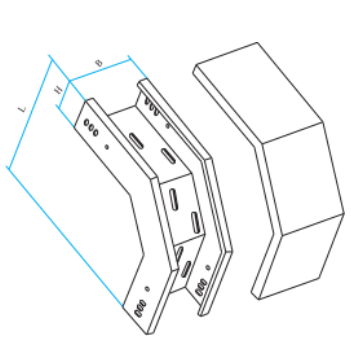

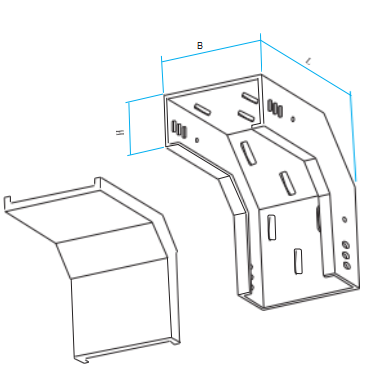

Tray Type Vertical Elbow Jiont Cable Tray Model XQJ-P1-05B

Tray-type Cable XQJ-P1

Note: The price of locks is exclusive.

Model	B	H	L	kg Weight	Weight	Remark
P1-05B-6-2	200	60	360	5.54	4.26	When H=60H=100, each end has 6 connection holes When H=150, each end has 12 connection holes
P1-05B-10-2		100	400	7.08
P1-05B-15-2		150	450	11.91
P1-05B-6-3	300	60	360	10.01	6.03
P1-05B-10-3		100	400	11.64
P1-05B-15-3		150	450	13.53
P1-05B-6-4	400	60	360	11.65	10.30
P1-05B-10-4		100	400	13.25
P1-05B-15-4		150	450	18.3
P1-05B-6-5	500	60	360	12.1	12.64
P1-05B-10-5		100	400	15.45
P1-05B-15-5		150	450	22.43
P1-05B-6-6	600	60	360	23.65	16.01
P1-05B-10-6		100	400	26.59
P1-05B-15-6		150	450	32.53
P1-05B-6-8	800	60	360	31.24	20.78
P1-05B-10-8		100	400	35.21
P1-05B-15-8		150	450	43.26

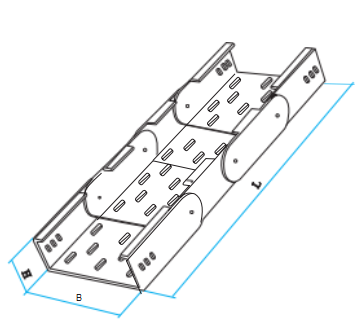

Tray Type Vertical Turn Elbow Jiont Cable Tray Model XQJ-P1-05C

Tray-type Cable XQJ-P1

Note: The price of locks is exclusive.

Model	B	H	L	kg Weight	Weight	Remark
P1-05C-6-2	200	60	780	8.2	3.77	When H=60H=100, each end has 6 connection holes When H=150, each end has 12 connection holes
P1-05C-10-2		100	900	12.3	4.35
P1-05C-15-2		150	1050	19.14	5.07
P1-05C-6-3	300	60	780	9.61	6.33
P1-05C-10-3		100	900	13.7	7.31
P1-05C-15-3		150	1050	21.18	8.53
P1-05C-6-4	400	60	780	19.27	10.25
P1-05C-10-4		100	900	21.67	11.82
P1-05C-15-4		150	1050	35.44	13.79
P1-05C-6-5	500	60	780	21.91	12.56
P1-05C-10-5		100	900	24.41	14.49
P1-05C-15-5		150	1050	39.41	16.91
P1-05C-6-6	600	60	780	24.41	17.86
P1-05C-10-6		100	900	27.13	20.61
P1-05C-15-6		150	1050	41.64	24.05
P1-05C-6-8	800	60	780	29.52	23.42
P1-05C-10-8		100	900	32.57	27.03
P1-05C-15-8		150	1050	50.22	31.53
