The support, which is made up of stand, stand base and bracket arm, is the main part to support the cables. The support produced in our factory is designed to the same kind ofproduct in both Japan and Germany. It has such advantages as simple structure, Light weight, Low cost, big strength and wonderful modelling. It can meet different environmental conditions (such as, on the technological piping frame, on the floors, on the walls and cable ditches) to be installed in different forms (such as, hanging style, standing style, side style, single, double and multilateral styles).
When hoisted with multilateral heavy Load, the cables should be Laid bilaterally to avoid being over Loaded.
Connecting bolts ofthe support can be provided together. If necessary, installation bolts can be ordered according to the type. The surface dealing of the support has 4 kinds ofways.
Electroplating, zinc-plating, paint spraying and plastics spraying. If you need other variefies of support, you can order by sending your pictures, writing to us and coming to have a face-to-face talk with us.
Download Brochure

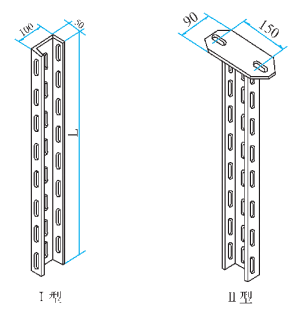

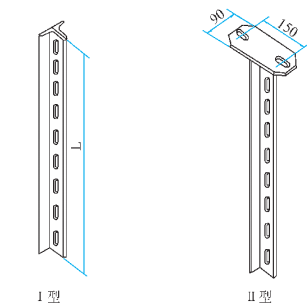

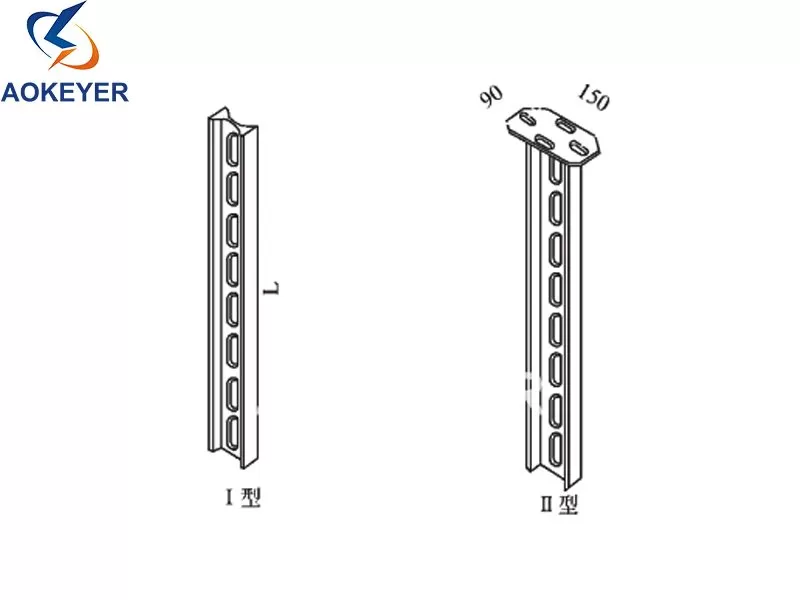

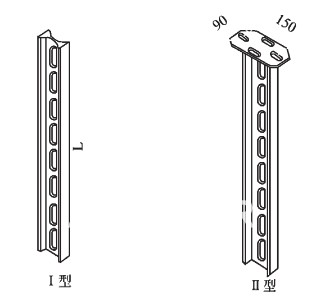

XQJ-H-01A I-steel pos
| No. | Model | Specification | Weightkg/pc | Remark |
| 1 | H-01A-3 | 300 | 4.07 | additional 1.61kg per piece for Type Ⅱ |
| 2 | H-01A-5 | 500 | 6.78 | |
| 3 | H-01A-8 | 800 | 10.85 | |
| 4 | H-01A-10 | 1000 | 13.53 | |
| 5 | H-01A-15 | 1500 | 20.35 | |
| 6 | H-01A-20 | 2000 | 27.06 | |
| 7 | H-01A-25 | 2500 | 33.88 | additional 4.8kg per piece for Type Ⅱ |
| 8 | H-01A-30 | 3000 | 40.7 |
XQJ-H-01B 丁-steel post Type post
| No. | Model | Specification | Weight kg/pc | Remark |
| 1 | H-01B-3 | 300 | 3.24 | additional 1.61kg per piece for Type Ⅱ |
| 2 | H-01B-5 | 500 | 5.42 | |
| 3 | H-01B-8 | 800 | 8.65 | |
| 4 | H-01B-10 | 1000 | 10.81 | |
| 5 | H-01B-15 | 1500 | 16.22 | |
| 6 | H-01B-20 | 2000 | 21.61 |

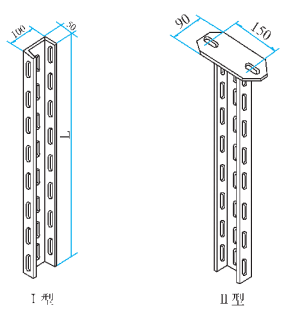

XQJ-H-01C Trough-steel post
| No. | Model | Specification | Weight kg/pc | Remark |
| 1 | H-01C-3 | 300 | 3.63 | additional 1.61kg per piece for Type Ⅱ |
| 2 | H-01C-5 | 500 | 6.05 | |
| 3 | H-01C-8 | 800 | 9.68 | |
| 4 | H-01C-10 | 1000 | 12.1 | |
| 5 | H-01C-15 | 1500 | 18.15 | |
| 6 | H-01C-20 | 2000 | 24.2 |
XQJ-H-01D Angle-sted post
| No. | Model | Specification | Weight kg/pc | Remark |
| 1 | H-01D-3 | 300 | 1.62 | additional 1.61kg per piece for Type Ⅱ |
| 2 | H-01D-5 | 500 | 2.71 | |
| 3 | H-01D-8 | 800 | 4.33 | |
| 4 | H-01D-10 | 1000 | 5.40 | |
| 5 | H-01D-15 | 1500 | 8.11 | |
| 6 | H-01D-20 | 2000 | 10.80 |

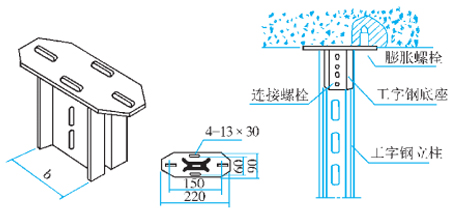

XQJ-H-02A I-steel post Base
| Type | b(mm) | kg / pieceUnit price | Remark |
| H-02A-8# | 70 | 4.2 | fitting with8#I-Steel |
| H-02A-10# | 90 | 4.5 | fitting with10#I-Steel |

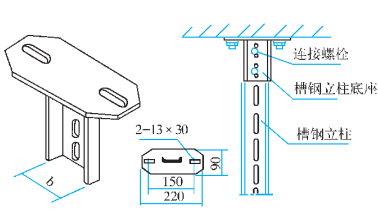

XQJ-H-02C Trough-steel post Base
| Type | b(mm) | kg / pieceUnit price | Remark |
| H-02C-8# | 70 | 2.5 | fitting with8#-uprightpost |
| H-02C-10# | 90 | 2.8 | fitting with10 #-upright post |

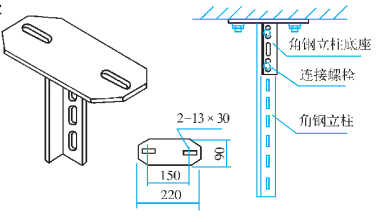

XQJ-H-02D Ange-steel post Base
H- 02D andle iron post foundaion is linked weight 2.9kg

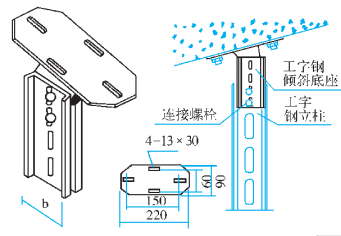

XQJ-H-03A I-steel Tilt
| Model | b(mm) | kg / pieceUnit price | Remark |
| H-03A-8# | 70 | 6.1 | fitting with8#-Steel post |
| H-03A-10# | 90 | 6.3 | fitting with10#-Steel post |

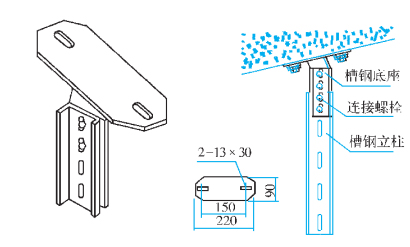

XQJ-H-03C Trough-steel Tilt Base
H- 03C channl iron indined foundation can be linled weight 6.2kg.

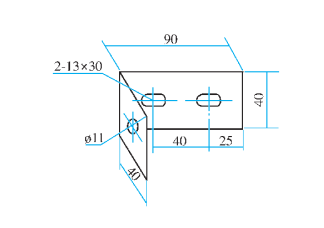

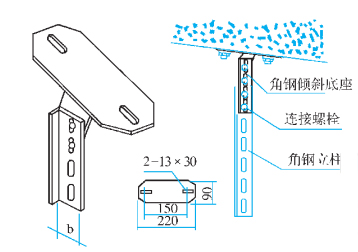

XQJ-H-03D Angle-steel Tilt Base
| Model | b(mm) | kg / pieceUnit price | Remark | |
| H-01D | 40 | 5.4 | fitting H-01D、H-01B | |

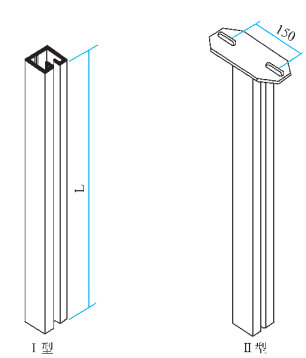

XQJ-H-01E Dianeler- type post
| No. | Model | Specification | Weightkg/pc | Remark |
| 1 | H-01E-3 | 300 | 2.11 | additional 1.61kg per piece for Type Ⅱ |
| 2 | H-01E-5 | 500 | 3.53 | |
| 3 | H-01E-8 | 800 | 5.67 | |
| 4 | H-01E-10 | 1000 | 7.08 | |
| 5 | H-01E-15 | 1500 | 10.62 | |
| 6 | H-01E-20 | 2000 | 14.15 |

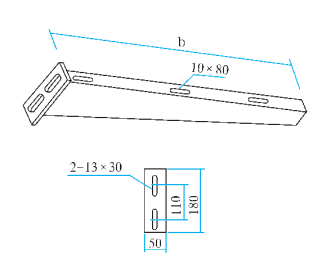

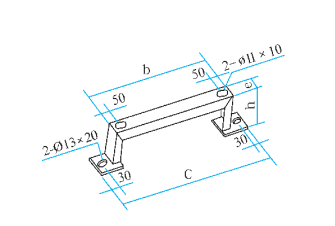

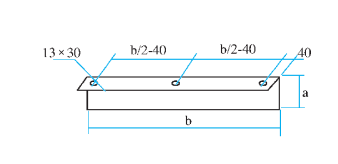

XQJ-ZJ1 Frame
| Model | b mm | a mm | c mm | kg Weight |
| ZJ1-2 | 250 | 250 | 4.05 | |
| ZJ₁-3 | 350 | 4.59 | ||
| ZJ₁-4 | 450 | 4.93 | ||
| ZJi-5 | 550 | 280 | 7.89 | |
| ZJi-6 | 650 | 8.64 | ||
| ZJi-10 | 1050 | 470 | 12.10 | |
| ZJ1-12 | 1250 | 570 | 13.60 |

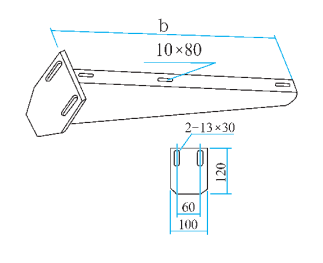

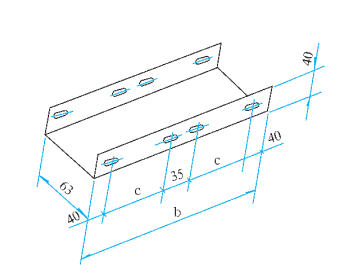

XQJ-ZJ2 Frame
| Model | b (mm) | C(mm) | kgWeight |
| ZJ₂-2 | 250 | 1.83 | |
| ZJ₂-3 | 350 | 2.66 | |
| ZJ₂-4 | 450 | 3.29 | |
| ZJ₂-5 | 550 | 4.02 | |
| ZJ₂-6 | 650 | 4.75 | |
| ZJ₂-10 | 1050 | 470 | 7.72 |
| ZJ₂-12 | 1250 | 570 | 9.19 |

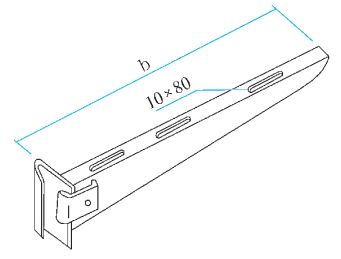

XQJ-ZJ3 Frame
| Model | b(mm) | a(mm) | C(mm) | e(mm) | kgWeight |
| ZJ3-1 | 150 | 270 | 90 | 40×4 | 2.61 |
| ZJ₃-2 | 250 | 370 | 3.1 | ||
| ZJ₃-3 | 350 | 470 | 110 | 50×5 | 4.4 |
| ZJ₃-4 | 450 | 570 | 4.9 | ||
| ZJ₃-5 | 550 | 670 | 5.5 | ||
| ZJ₃-6 | 650 | 770 | 6.1 | ||
| ZJ₃-10 | 1050 | 1170 | 8.1 | ||
| ZJ₃-12 | 1250 | 1370 | 120 | 63×6 | 12.4 |

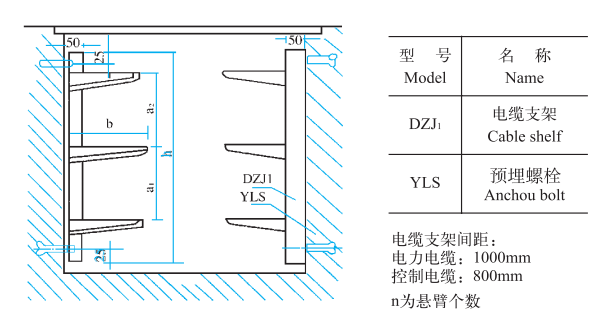

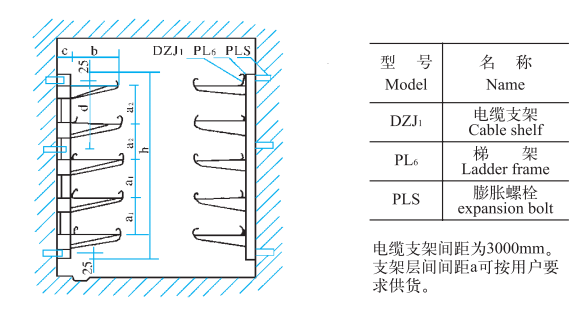

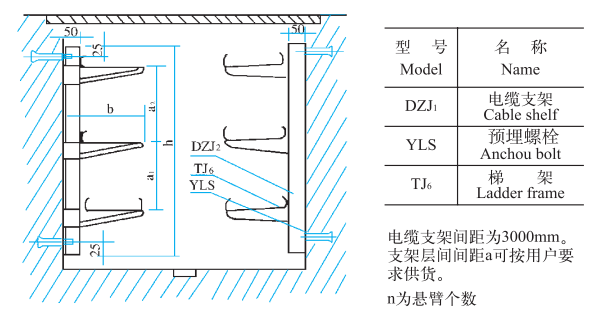

Installation ofcable Tray Inside cable channel
| Model | n piece | a(mm) | b(mm) | h(mm) | Weight(kg) |
| DZJ1-22 | 2 | a2=240 | 210 | 390 | 3.82 |
| -23 | 310 | 4.65 | |||
| -24 | 410 | 8.08 | |||
| -25 | 510 | 9.37 | |||
| -26 | 610 | 10.65 | |||
| DZJ₁-32 | 3 | a1=180 a2=240 | 210 | 570 | 8.06 |
| -33 | 310 | 10.01 | |||
| -34 | 410 | 11.96 | |||
| -35 | 510 | 13.96 | |||
| -36 | 610 | 15.82 | |||
| DZJ1-42 | 4 | a1=180 a2=240×2 | 210 | 810 | 11.02 |
| -43 | 310 | 13.62 | |||
| -44 | 410 | 16.22 | |||
| -45 | 510 | 18.81 | |||
| -46 | 610 | 21.36 | |||
| DZJ1-52 | 5 | a1=180×2 a2=240×2 | 210 | 990 | 14.26 |
| -53 | 310 | 16.95 | |||
| -54 | 410 | 20.30 | |||
| -55 | 510 | 23.44 | |||
| -56 | 610 | 26.63 |
Installation ofcable Inside cable channel
| Model | n piece | a(mm) | b(mm) | d(mm) | c(mm) | h(mm) | Weight(kg) |
| DZJi-62 | 6 | a1=180×2 a2=240×3 | 210 | 385 | 56(<56×5) | 1230 | 16.61 |
| -63 | 310 | 20.50 | |||||
| -64 | 410 | 24.40 | |||||
| -65 | 510 | 28.29 | |||||
| -66 | 610 | 32.12 | |||||
| DZJ₁-72 | 7 | a1=180×2 a2=240×4 | 210 | 625 | 63(<63×6) | 1470 | 22.67 |
| -73 | 310 | 27.21 | |||||
| -74 | 410 | 31.76 | |||||
| -75 | 510 | 36.30 | |||||
| -76 | 610 | 40.77 | |||||
| DZJi-82 | 8 | a1=180×2 a2=240×5 | 210 | 625 | 40(<6.3) | 1710 | 26.14 |
| -83 | 310 | 31.33 | |||||
| -84 | 410 | 36.52 | |||||
| -85 | 510 | 41.71 | |||||
| -86 | 610 | 46.82 | |||||
| DZJ1-92 | 9 | a1=180×2 a2=240×5 | 210 | 865 | 40(□6.3) | 1890 | 29.15 |
| -93 | 310 | 34.99 | |||||
| -94 | 410 | 40.83 | |||||
| -95 | 510 | 46.67 | |||||
| -96 | 610 | 52.42 |

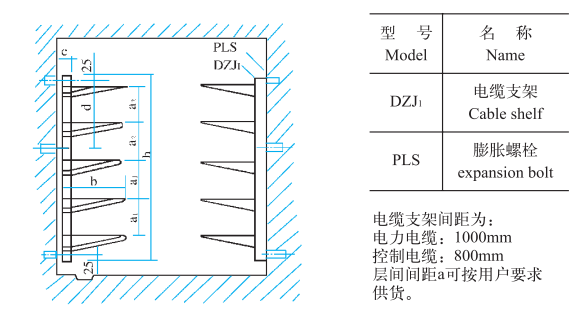

Installation ofcable shelfInside cable channel
| Model | n piece | a(mm) | b(mm) | h(mm) | Weight(kg) |
| DZJi-22 | 2 | a2=280 | 210 | 430 | 5.72 |
| -23 | 310 | 7.19 | |||
| -24 | 410 | 8.42 | |||
| -25 | 510 | 9.70 | |||
| -26 | 610 | 10.98 | |||
| DZJ₁-32 | 3 | a1=230 a2=280 | 210 | 660 | 8.55 |
| -33 | 310 | 10.49 | |||
| -34 | 410 | 12.44 | |||
| -35 | 510 | 14.44 | |||
| -36 | 610 | 16.30 | |||
| DZJ1-42 | 4 | a1=230 a2=280×2 | 210 | 940 | 11.73 |
| -43 | 310 | 14.32 | |||
| -44 | 410 | 16.92 | |||
| -45 | 510 | 19.52 | |||
| -46 | 610 | 22.07 | |||
| DZJi-52 | 5 | a1=230×2 a2=280×2 | 210 | 1170 | 15.22 |
| -53 | 310 | 17.92 | |||
| -54 | 410 | 21.26 | |||
| -55 | 510 | 24.41 | |||
| -56 | 610 | 27.60 |
Installation ofcable shelfInside cable channel

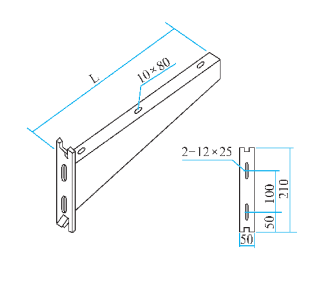

| Model | n piece | a(mm) | b(mm) | d(mm) | c(mm) | h(mm) | Weight(kg) |
| DZJi-62 | 6 | a1=230×2 a2=280×3 | 210 | 470 | 56(□56×5) | 1450 | 17.80 |
| -63 | 310 | 21.69 | |||||
| -64 | 410 | 25.59 | |||||
| -65 | 510 | 29.48 | |||||
| -66 | 610 | 33.31 | |||||
| DZJi-72 | 7 | a1=230×2 a2=280×4 | 210 | 750 | 63(□63×6) | 1730 | 24.63 |
| -73 | 310 | 29.17 | |||||
| -74 | 410 | 33.72 | |||||
| -75 | 510 | 38.26 | |||||
| -76 | 610 | 42.72 | |||||
| DZJ1-82 | 8 | a1=230×2 a2=280×5 | 210 | 750 | 40(□6.3) | 2010 | 28.39 |
| -83 | 310 | 33.58 | |||||
| -84 | 410 | 38.78 | |||||
| -85 | 510 | 43.97 | |||||
| -86 | 610 | 49.70 | |||||
| DZJ1-92 | 9 | a1=230×2 a2=280×5 | 210 | 750 | 40(□6.3) | 2240 | 31.78 |
| -93 | 310 | 37.62 | |||||
| -94 | 410 | 43.46 | |||||
| -95 | 510 | 49.30 | |||||
| -96 | 610 | 55.04 |
| No. | Model | Specification | Weight kg/pc | Remark |
| 1 | TB-01A-150 | 170 | 1.63 | Remarks bolts andfastener savailable 10.73 Chinese yuan/pc |
| 2 | TB-01A-200 | 220 | 1.94 | |
| 3 | TB-01A-300 | 320 | 2.59 | |
| 4 | TB-01A-400 | 420 | 3.23 | |
| 5 | TB-01A-500 | 520 | 3.88 | |
| 6 | TB-01A-600 | 620 | 4.53 | |
| 7 | TB-01A-800 | 820 | 5.83 |
| No. | Model | Specification | Weight kg/pc | Remark |
| 1 | TB-01B-150 | 170 | 1.60 | Linked to bolt M12 |
| 2 | TB-01B-200 | 220 | 1.87 | |
| 3 | TB-01B-300 | 320 | 2.56 | |
| 4 | TB-01B-400 | 420 | 3.21 | |
| 5 | TB-01B-500 | 520 | 3.85 | |
| 6 | TB-01B-600 | 620 | 4.51 | |
| 7 | TB-01B-800 | 820 | 5.81 |
| No. | Model | Specification | Weight kg/pc | Remark |
| 1 | TB-02-150 | 170 | 1.41 | Linked to bolts IS-05 M12×35 |
| 2 | TB-02-200 | 220 | 1.74 | |
| 3 | TB-02-300 | 320 | 2.38 | |
| 4 | TB-02-400 | 420 | 3.03 | |
| 5 | TB-02-500 | 520 | 3.67 | |
| 6 | TB-02-600 | 620 | 4.31 | |
| 7 | TB-02-800 | 820 | 5.62 |
| No. | Model | Specification | Weight kg/pc | Remark |
| 1 | TB-03-100 | 120 | 1.01 | Linked to bolts IS-03M12×25 |
| 2 | TB-03-150 | 170 | 1.34 | |
| 3 | TB-03-200 | 220 | 1.66 | |
| 4 | TB-03-300 | 320 | 2.31 | |
| 5 | TB-03-400 | 420 | 2.96 | |
| 6 | TB-03-500 | 520 | 3.61 | |
| 7 | TB-03-600 | 620 | 4.25 | |
| 8 | TB-03-800 | 820 | 5.56 |
| No. | Model | Specification | Weight kg/pc | Remark |
| 1 | TB-04-150 | 170 | 0.97 | Fix to bolt IS-06/12M12×110 |
| 2 | TB-04-200 | 220 | 1.12 | |
| 3 | TB-04-300 | 320 | 1.43 | |
| 4 | TB-04-400 | 420 | 1.74 | |
| 5 | TB-04-500 | 520 | 2.03 | |
| 6 | TB-04-600 | 620 | 3.16 | |
| 7 | TB-04-800 | 820 | 3.97 |

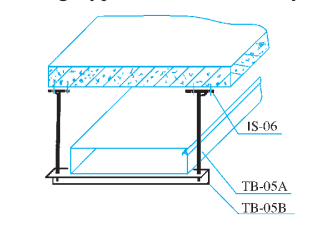

Hoisting-Type Isstauation of Tray
| Model | Name | Page |
| IS | Expansion Bolt | |
| TPC-08 | Cover | |
| C-01A | Cable Tray | |
| TB-05A | SlingStay | |
| TB-05B | Beam |
TB-05B crossbeam
| Model | b(mm) | a(mm) | Wt kg/pc |
| TB-05B-7 | 700 | L63×6 | 4.00 |
| -10 | 1000 | 5.72 | |
| -16 | 1600 | L80×8 | 13.27 |
| -21 | 2100 | 17.42 |
TB-05A Hoisting pole
| Model | H | Wt kg/pc |
| TB-05A-5 | 500 | 2.32 |
| -10 | 1000 | 2.75 |
| -16 | 1500 | 3.17 |
| -21 | 2000 | 3.60 |

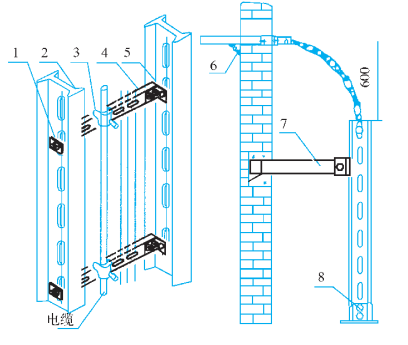

XQJ-ZYS Hold Up Guides
| No. | Name | Model | Remarks |
| 1 | Gasket | XQJ-DP50 | |
| 2 | I-beam | XQJ-H-01A | |
| 3 | Cable clamp | XQJ-K-08A | |
| 4 | Crossbeam | XQJ-HL | |
| 5 | Fixing plate | XQJ-GDB3 | |
| 6 | Bracket | XQJ-ZJ2 | |
| 7 | Clamp-type clamp | XQJ-QJB | |
| 8 | I-beam column base | XQJ-H-02A |
QJB pincerlike tong board
| Model | a | L | I-beam # | kg | kg |
| QJB5-5 | 55 | 500 | 8# | 3.09 | M10×24 |
| QJB5-10 | 55 | 1000 | 10# | 5.28 | M10×24 |
| QJB6-5 | 68 | 500 | 8# | 3.3 | M10×40 |
| QJB6-10 | 68 | 1000 | 10# | 5.72 | M10×40 |
DP spacer
piece weight: 0.16kg
GDB3 fixing board
piece weight: 0.15kg

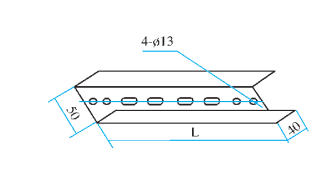

HL cuoss beam
 Type | HL-5 | HL-9 | HL-12 | HL-15 |
| L | 500 | 900 | 1200 | 1500 |
| kg Weight | 2.60 | 5.10 | 6.30 | 7.20 |
Cable Slide Model
| Model | b(mm) | unitprice($) |
| TPC-17-10 | 90 | 4.75 |
| TPC-17-20 | 190 | 9.63 |
| TPC-17-30 | 290 | 11.35 |
| TPC-17-40 | 390 | 14.38 |
| TPC-17-50 | 490 | 15.58 |
| TPC-17-60 | 530 | 20.43 |

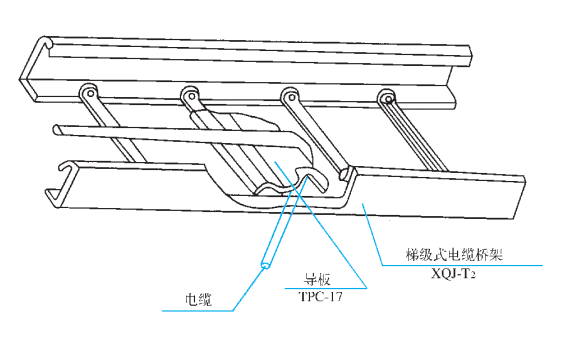

The cable slide can protect from being damaged

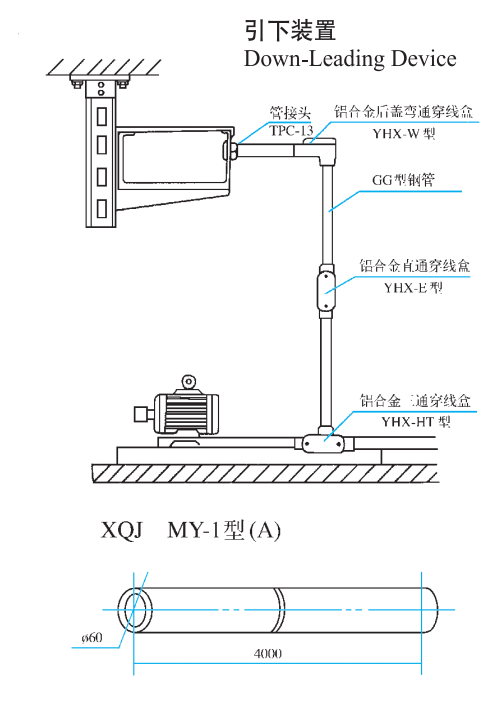

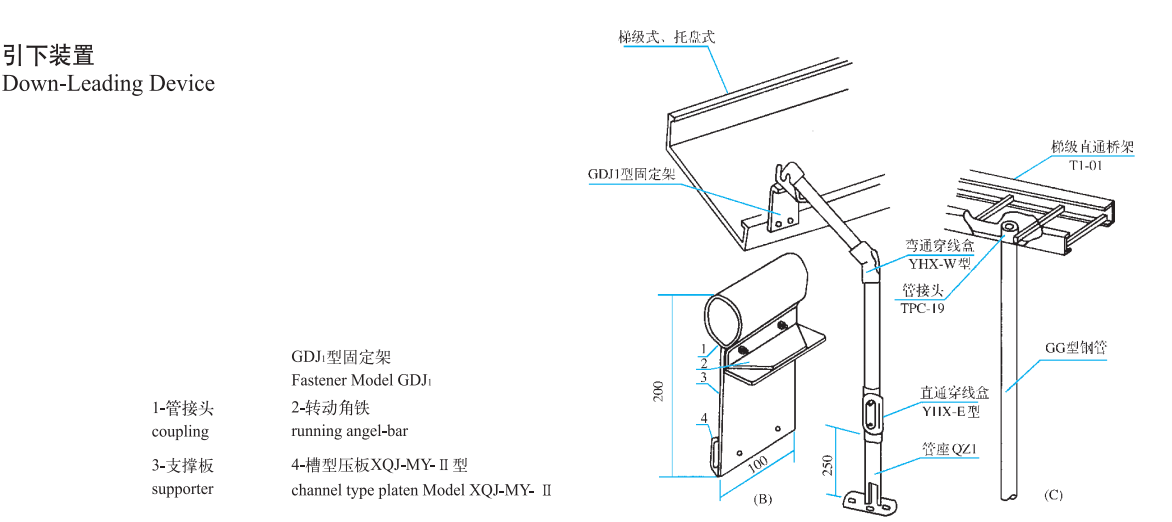

Steel Pipe Model GG-60
| Model | omm | Weight (kg) |
| GG-60 | 60 | 24.51 |
Note: Allunimium alloythreading box, functioning as connection steel pipe, maybe used in the installation ofconduits. The threadingbox, an integral spare part, falls into
following categories: straight, T-joint, leftjoint, rightjoint backjoint and cross. The used ofthreading box makes-easy installation, beautiful appearance, ect. please refer to the Instruction on Threading Box for its installation.
