Accessories

This part mainly contains common fittings of XQJ Series of cables, including width-adjusting plate, height-adjusting plate and separation board, this is the small-angieadjusting plate, connection plate, angle- adjustment in the changing of width and height, connection, horizontal and vertical tread in the installation of cables, and also the necessary accesories for the separation between power cable and control cables.

Download Brochure

Product Detail

XQJ-TPC-01A width-Adjusting Flake

Accessories

No.	Model	Height	hi	L	Unit price ($)	Remark
1	TPC-01A-6-1	60	50	100	9.80	3 holes in either end of width modulator with a height of 60mm and 100mm
2	TPC-01A-6-2			200	10.50
3	TPC-01A-6-3			300	11.80
4	TPC-01A-6-4			400	12.70
5	TPC-01A-10-1	100	90	100	13.70
6	TPC-01A-10-2			200	18.20
7	TPC-01A-10-3			300	21.20
8	TPC-01A-10-4			400	23.40
9	TPC-01A-15-1	150	140	100	27.10	12 holes in either end of width modulator with a height of 150mm
10	TPC-01A-15-2			200	30.50
11	TPC-01A-15-3			300	33.90
12	TPC-01A-15-4			400	37.30

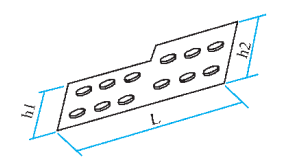

XQJ-TPC-01B Height-Adjusting Flake

Accessories

No.	Model	Li	L₂	L	Unit price ($)	Remark
1	TPC-01B-60/100	50	90	205	10.60	From 60mm to 100mm
2	TPC-01B-60/150	50	140	205	15.10	From 60mm to 150mm
3	TPC-01B-100/150	90	140	205	17.10	From 100mm to 150mm
4	TPC-01B-150/200	140	190	385	25.30	From 150mm to 200mm

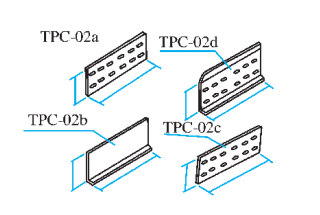

XQJ-TPC-02 straight connecting Flake

Accessories

No.	Model	Height	h₁	h₂	L	Unit price ($)	Remark
1	TPC-02a-50	50、60	35	32	205	9.80	6 holes in connectors when cable tray is below 125mm high.
2	TPC-02b-50	50、60				9.50
3	TPC-02a-75	75	50	47		10.60
4	TPC-02b-75	75				10.20
5	TPC-02a-100	100	75	71		13.80
6	TPC-02b-100	100				13.50
7	TPC-02a-125	125	100	96		16.50	12 holes in connectors when cable tray isover 150mm high.
8	TPC-02b-125	125				16.00
9	TPC-02a-150	150	125	120		19.50
10	TPC-02b-150	150				18.50
11	TPC-02a-200	200	175	170	205	28.50
12	TPC-02b-200	200	175		205	27.00
13	TPC-02c-60	60		30	205	10.60	6 holes in connectors when cable tray isbelow 100mm high.
14	TPC-02d-60	60		30		10.20
15	TPC-02c-100	100		35		13.80
16	TPC-02d-100	100		35		13.50
17	TPC-02c-150	150		80		19.50	12 holes in connectors when cable tray isover 150mm high.
18	TPC-02d-150	150		80		18.50
19	TPC-02c-200	200		130		28.50
20	TPC-02d-200	200		130		27.00

XQJ-TPC-03 curved connecting Flake

Accessories

No.	Model	Height	hi	L	Unit price ($)	Remark
1	TPC-03-50	50、60	35	300	10.10
2	TPC-03-75	75	50		12.20
3	TPC-03-100	100	75		17.90
4	TPC-03-125	125	100		20.90
5	TPC-03-150	150	125	600	31.60
6	TPC-03-200	200	175	600	36.10

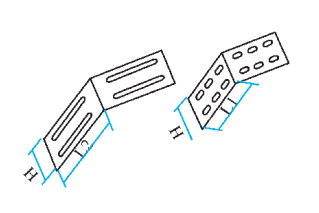

XQJ-TPC-04 Angle-Adjusting Flake

Accessories

No.	Model	Height	hi	L	Unit price ($)	Remark
1	TPC-04-60	60	50	260	9.00	used with ladder type, tray typeand channel type cable tray used with long span and channel type cable tray
2	TPC-04-100	100	90	300	15.60
3	TPC-04-150	150	140	350	20.90

XQJ-TPC-05 Fixed pressure plate

Accessories

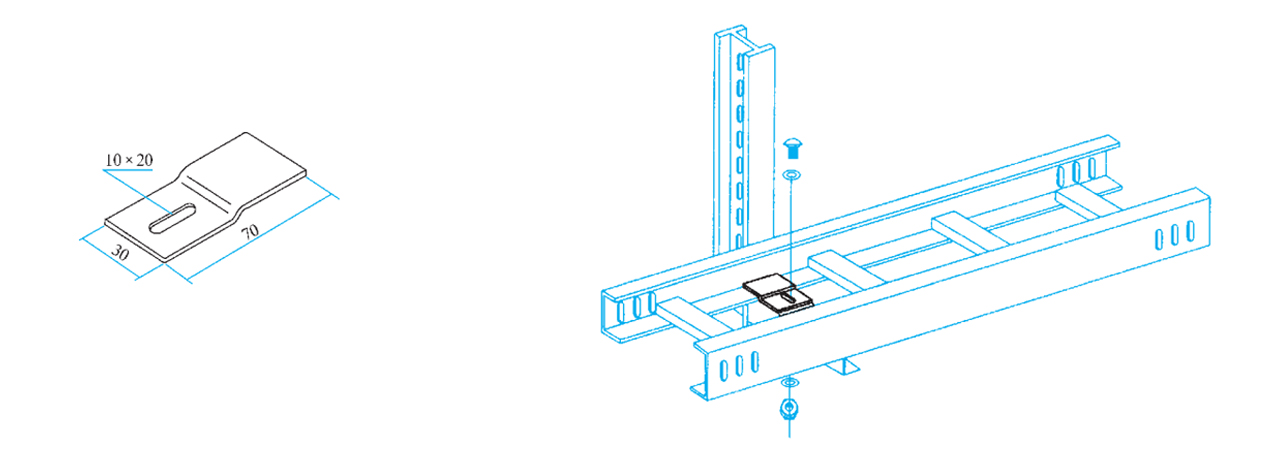

TPC-05 fixing pressed bosrdis mainly usedin the fixing of stair-trpe bridge frame with bracd etarm and the fixing of stair-type bridge frame with wall when installed vertically

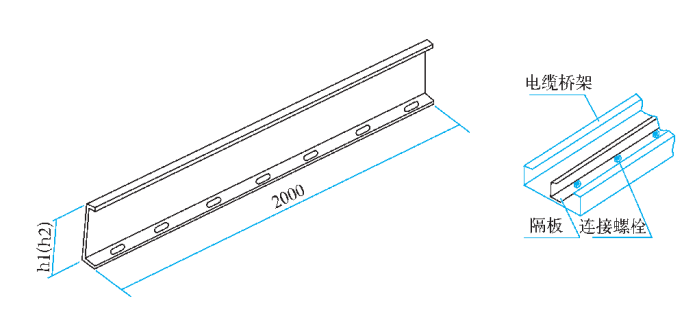

XQJ-TPC-07 partition

h1 for ladder bridges

h2 for tray and trough bridges

Accessories

Model	Supporting height	h1 mm	h2 mm	kg
Model	Supporting height	h1 mm	h2 mm	h1	h2
TPC-07-50	50、60	35	40	2.78	3.60
TPC-07-75	75		65		4.87
TPC-07-100	100	75	90	4.49	6.17
TPC-07-125	125		115		7.16
TPC-07-150	150	125	140	8.29	10.92
TPC-07-200	200		190		14.69

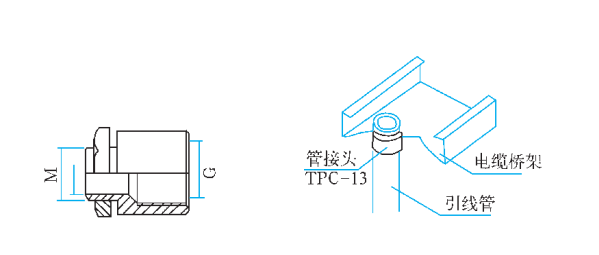

XQJ-TPC-13 pipe joint

Accessories

No.	Model	size of pipe	M	d	S	unit price(s)
1	TPC-13-½"	½"	M22×1.5	18	27	6.20
2	TPC-13-¾"	¾"	M27×1.5	22	32	6.60
3	TPC-13-1"	1"	M33×1.5	28	41	12.30
4	TPC-13-1½"	1½"	M48×2	38	55	24.50
5	TPC-13-2"	2"	M56×2	48	65	32.90
