Low Voltage Distribution Cabinet
Low Voltage Distribution Cabinet

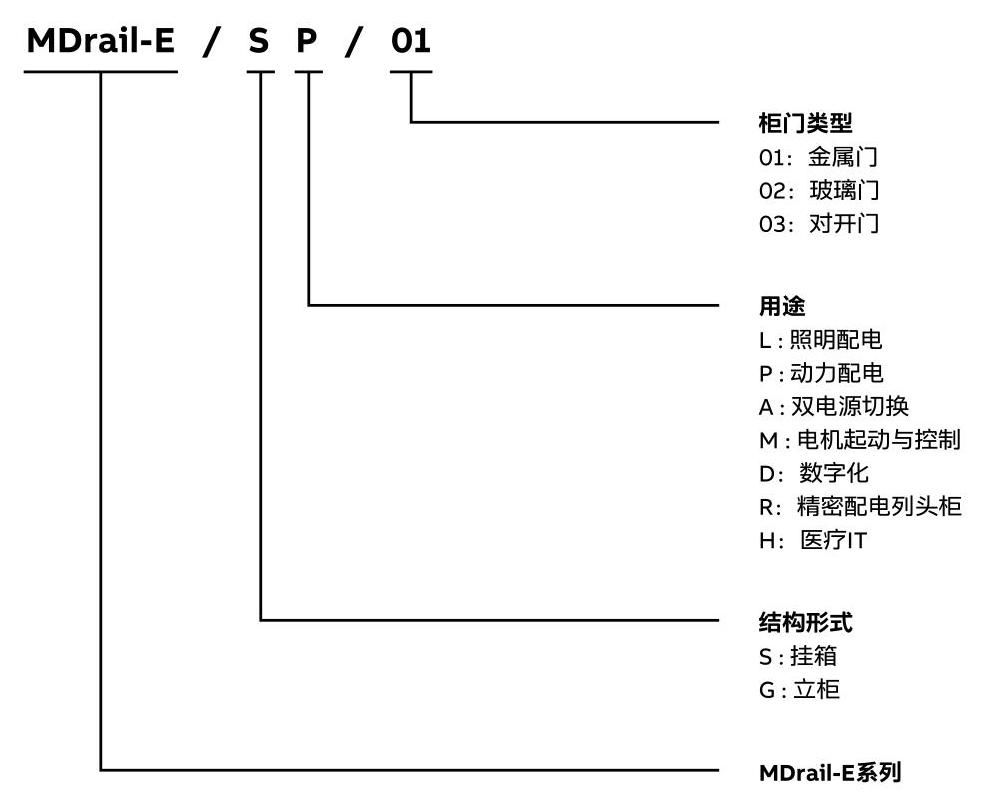

MDrail-E | ||
Product standards | GB 7251.1, GB 7251.12, IEC 61439-1, IEC 61439-2 | |
Maximum rated insulation voltage | 1000 V AC | |
Rated operating voltage | 400 V/690 V AC | |
Rated current | Wall-mounted box | 250 /400 A |
Standing cabinet | 630 A | |
Rated short-time withstand current | Wall-mounted box | 10 kA/1s |
Standing cabinet | 20 kA/1s | |
Door type | Metal door/Glass door/French door | |
Protection level | Up to IP54 (30/31/40/41) | |

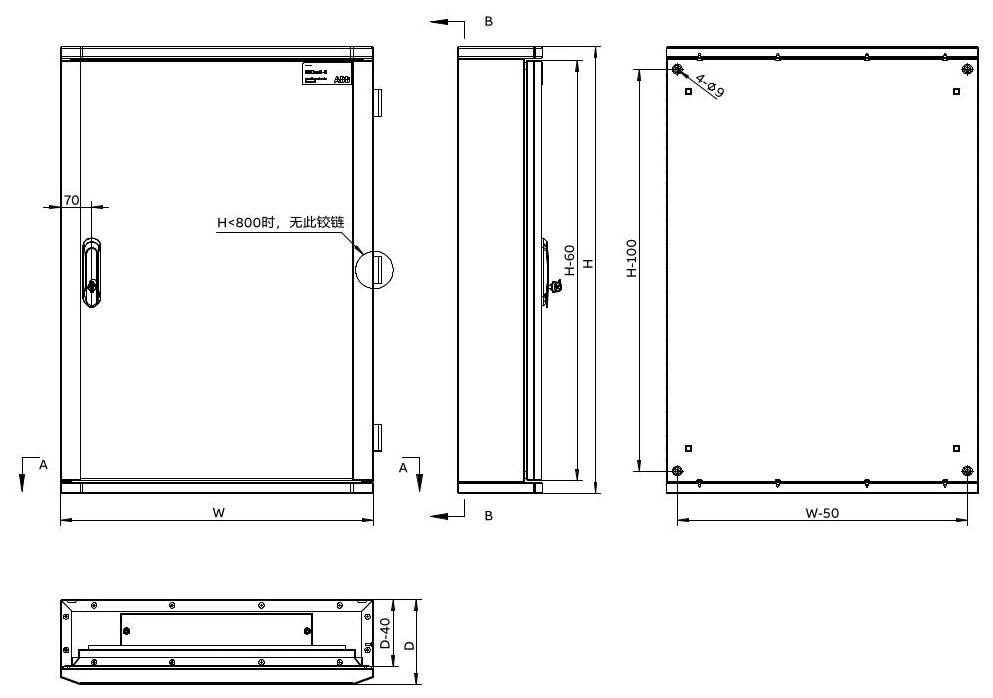

Cabinet dimensions (Wall-mounted box) | Recommended height | 500 - 1000 mm |
Recommended width | 400 - 800 mm | |
Recommended depth | 190/240/290 mm | |

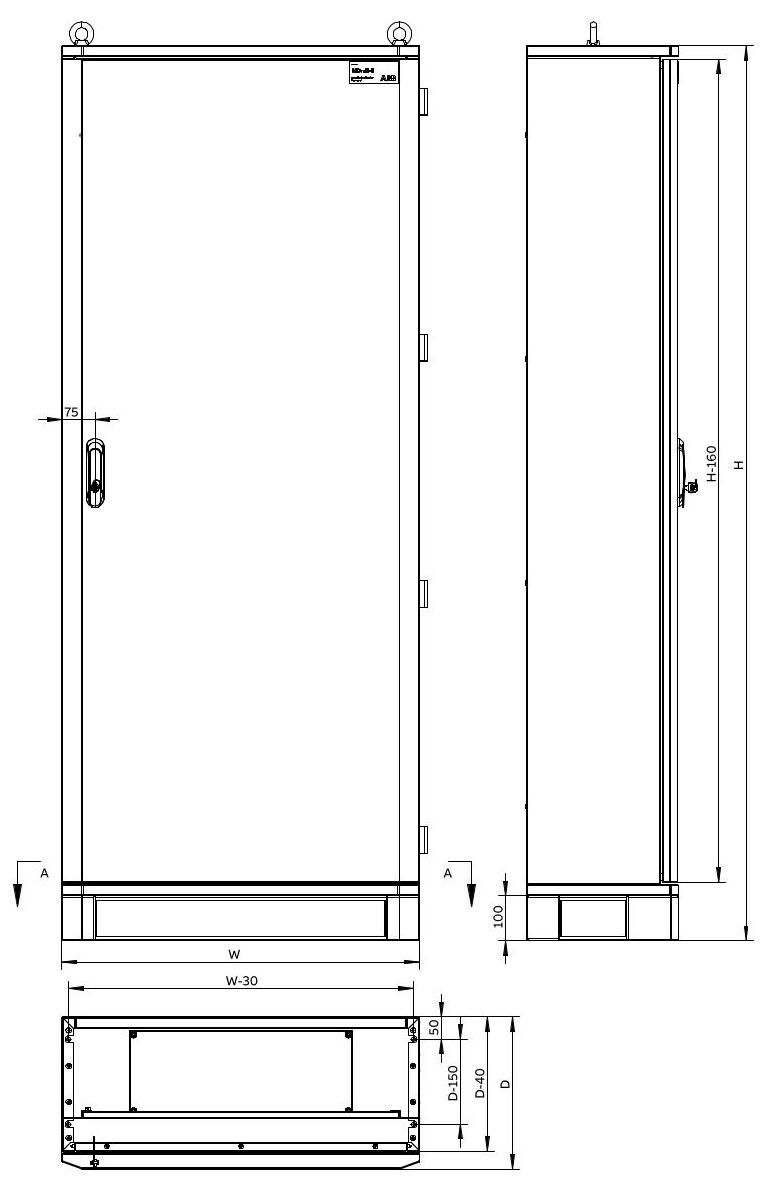

Cabinet dimensions (Standing cabinet) | Recommended height | 1400 - 2000 mm |
Recommended width | 400 - 800 mm | |
Recommended depth | 340/440 mm | |
Environmental conditions | ||
Minimum temperature | -5 ℃ | |
Short-time maximum temperature | +40 ℃ | |
Maximum average temperature in 24 hours | +35 ℃ | |
Maximum altitude | 2000 m | |
Humidity | 50% (Ambient temperature 40℃) | |
Note: The equipment should be derated when used at an ambient temperature higher than the above. | ||
Transportation temperature | ||
Maximum temperature |
| |
Minimum temperature | -25 °C | |
In a short time | +70°C (Not exceeding 24 hours) | |
Scheme number | L01 | |
Model | MDrail-E/SL | |

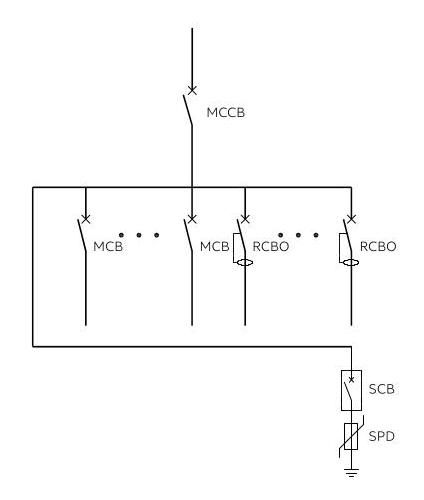

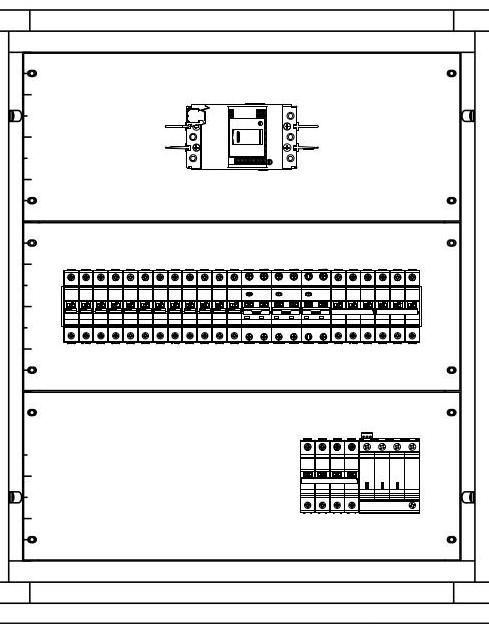

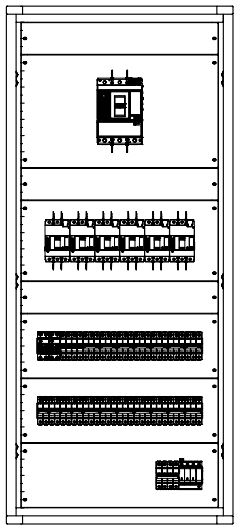

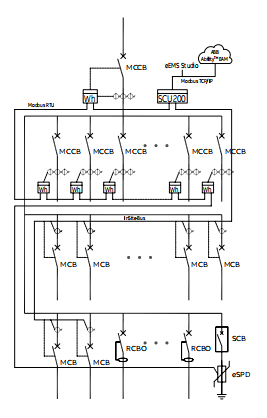

Primary circuit | Single-line diagram | Panel layout diagram |
Ordinary lighting distribution box |
|
|
Rated current (A) | 160 | |
Name | Model, specification and quantity | Installation kit |
Main components and functions - Incoming line molded case circuit breaker | Tmax XT1 | Molded case circuit breaker (horizontally installed) |
Incoming line isolating switch | / | |
Feeder molded case circuit breaker | / | |
Feeder miniature circuit breaker | S200 series | Modular DIN rail components |
Feeder residual current circuit breaker | GS201/DS201, S200+GDA/DDA | |
Surge protector | OVR T2 3N QS | |
Surge backup protection circuit breaker | POD T2 | |
Cabinet size HxWxD (mm) | 700x600x190 | |
Cabinet installation space HxW (mm) | 600x550 | |
Remarks | The effective installation width of each row of modular DIN rail components is 24M (1M = 17.5mm): The installation height of modular DIN rail components ≤ 40A can be selected as 150mm. | |
Scheme number | P01 | |
Model | MDrail-E/SP | |

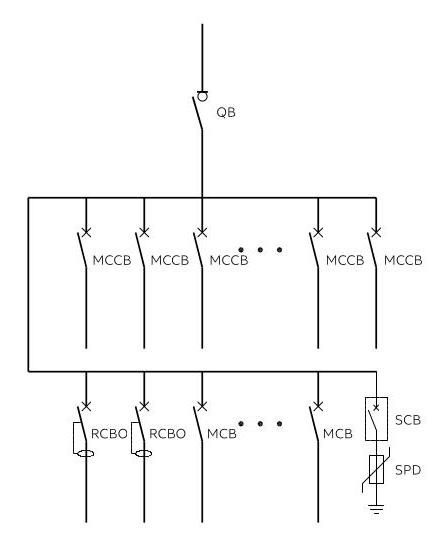

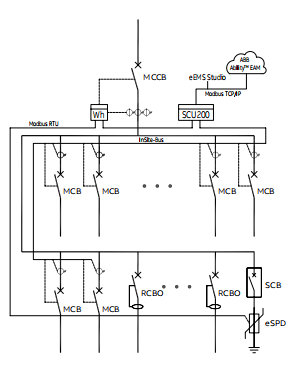

Primary circuit | Single-line diagram | Panel layout diagram |
Ordinary power distribution box (mixed installation of lighting, air conditioning...) |
|
|
Rated current (A) | 250 | |
Name | Model and specification | Installation kit |
Main components and functions - Incoming line molded case circuit breaker | / | |
Incoming line isolating switch | OT250 | Isolating switch (horizontally installed) |
Feeder molded case circuit breaker | Tmax XT1 | Molded case circuit breaker (vertically installed) |
Feeder miniature circuit breaker | S200 series | Modular DIN rail components |
Feeder residual current circuit breaker | GS201/DS201, S200+GDA/DDA | |
Surge protector | OVR T2 3N QS | |
Surge backup protection circuit breaker | POD T21 | |
Cabinet size HxWxD (mm) | 1000x700x190 | |
Cabinet installation space HxW (mm) | 900x650 | |
Remarks | The effective installation width of each row of modular DIN rail components is 30M (1M = 17.5mm): The installation height of modular DIN rail components ≤40A can be selected as 150mm; A maximum of 6 3P Tmax XT1 molded case circuit breakers can be vertically installed in each row. | |
Scheme number | P02 | |
Model | MDrail-E/GP | |

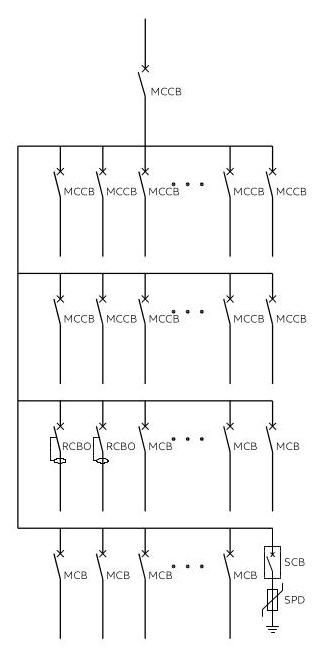

Primary circuit | Single-line diagram | Panel layout diagram |
Ordinary power distribution cabinet (mixed installation of lighting, air conditioning...) |
|  |
Rated current (A) | 320 | |
Name | Model and specification | Height of installation kit (mm) |
Incoming line molded case circuit breaker | Tmax XT5 | Molded case circuit breaker (vertically installed) |
Incoming line isolating switch | / | |
Feeder molded case circuit breaker | Tmax XT1 | Molded case circuit breaker (vertically installed) |
Feeder miniature circuit breaker | S200 series | Modular DIN rail components |
Main components and functions - Feeder residual current circuit breaker | GS201/DS201, S200+GDA/DDA | |
Surge protector | OVR T2 3N QS1 | |
Surge backup protection circuit breaker | POD T21 | |
Cabinet size HxWxD (mm) | 1600x700x340 (height H does not include 100mm base) | |
Cabinet installation space HxW (mm) | 1500x640 | |
Remarks | The effective installation width of each row of modular DIN rail components is 28M (1M = 17.5mm): The installation height of modular DIN rail components ≤40A can be selected as 150mm; A maximum of 6 3P Tmax XT1 molded case circuit breakers can be vertically installed in each row. | |
Scheme number | P03 | |
Model | MDrail-E/GP | |

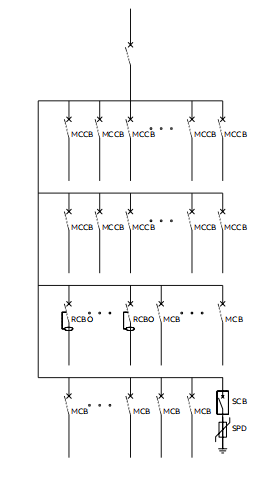

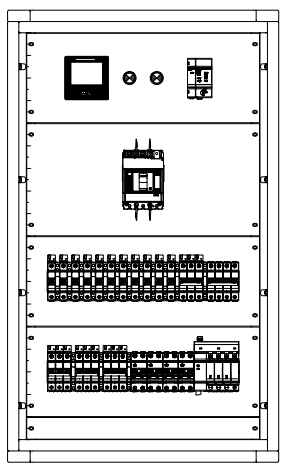

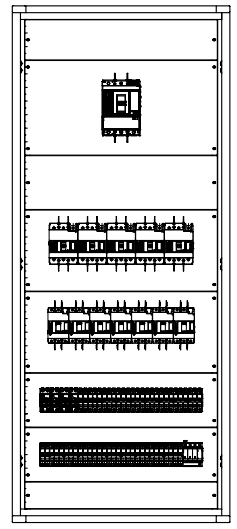

Primary circuit | Single-line diagram | Panel layout diagram |
Fire protection power distribution cabinet |
|  |
Rated current (A) | 400 | |
Name | Model and specification | Height of installation kit (mm) |
Main components and functions - Incoming line molded case circuit breaker | Tmax XT5 | Molded case circuit breaker (vertically installed) |
Incoming line isolating switch | / | |
Feeder molded case circuit breaker | Tmax XT2 | Molded case circuit breaker (vertically installed) |
Feeder miniature circuit breaker | S200 series | Modular DIN rail components |
Feeder residual current circuit breaker | GS201/DS201, S200+GDA/DDA | |
Surge protector | OVR T2 3N QS | |
Surge backup protection circuit breaker | POD T21 | |
Cabinet dimensions HxWxD (mm) | 1900x700x340 (Height H does not include 100mm base) | |
Cabinet installation space HxW (mm) | 1800x640 | |
Remarks | The effective installation width of each row of modular DIN rail components is 28M (1M = 17.5mm); The installation height of modular DIN rail components ≤40A can be selected as 150mm; A maximum of 5 three-pole Tmax XT2 molded case circuit breakers can be vertically installed in each row. | |
Scheme number | P04 | |
Model | MDrail-E/GP | |

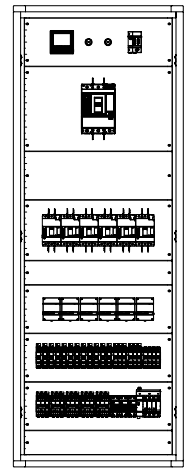

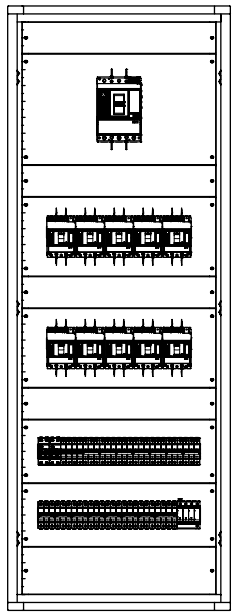

Primary circuit | Single-line diagram | Panel layout diagram |
Ordinary power distribution cabinet |
|
|
Rated current (A) | 2023/6/29 | |
Name | Model, specification and quantity | Height of installation kit (mm) |
Main components and functions - Incoming molded case circuit breaker | Tmax XT5/XT6 | Molded case circuit breaker (vertically installed) 700 |
Incoming disconnector | / | |
Feeder molded case circuit breaker | Tmax XT3/XT1 | Molded case circuit breaker (vertically installed) |
Feeder miniature circuit breaker | S200 series | Modular DIN rail components |
Feeder residual current circuit breaker | GS201/DS201, S200+GDA/DDAn | |
Surge protector | OVR T2 3N QS1 | |
Surge backup protection circuit breaker | POD T21 | |
Cabinet size HxWxD (mm) | 1900x800x340 (Height H does not include 100mm base) | |
Cabinet installation space HxW (mm) | 1800x740 | |
Remarks | The effective installation width of each row of modular DIN rail components is 34M (1M = 17.5mm); The installation height of modular DIN rail components ≤40A can be selected as 150mm; A maximum of 5 three-pole Tmax XT3 molded case circuit breakers or 7 three-pole Tmax XT1 molded case circuit breakers can be vertically installed in each row. | |
Scheme number | A01 | |
Model | MDrail-E/SA | |

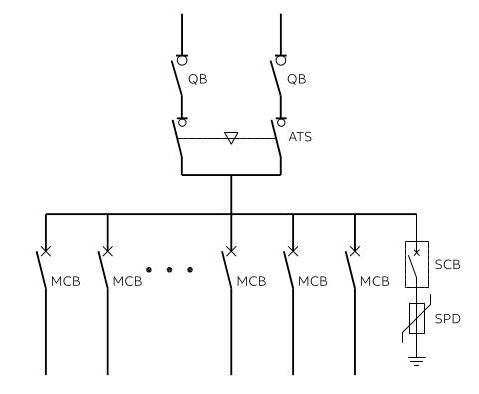

Primary circuit | Single-line diagram | Panel layout diagram |
Fire-fighting equipment power supply box |
|
|
Rated current (A) | 2*80 | |
Name | Model, specification and quantity | Installation kit |
Incoming line molded case circuit breaker | / | |
Main components and functions - Incoming line isolating switch | OT80 | Isolating switch (horizontally installed) |
Automatic transfer switch | OTM80F4C20D380C | Automatic transfer switch (horizontally installed) |
Feeder molded case circuit breaker | / | |
Feeder miniature circuit breaker | S200 series | Modular DIN rail components |
Feeder residual current circuit breaker | / | |
Surge protector | OVR T2 3N QS | |
Surge backup protection circuit breaker | POD T2 | |
Cabinet size HxWxD (mm) | 800x600x240 | |
Cabinet installation space HxW (mm) | 700x550 | |
Remarks | The effective installation width of each row of modular DIN rail components is 24M (1M = 17.5mm); the installation height of modular DIN rail components ≤ 40A can be selected as 150mm. | |
Scheme number | A02 | |
Model | MDrail-E/SA | |

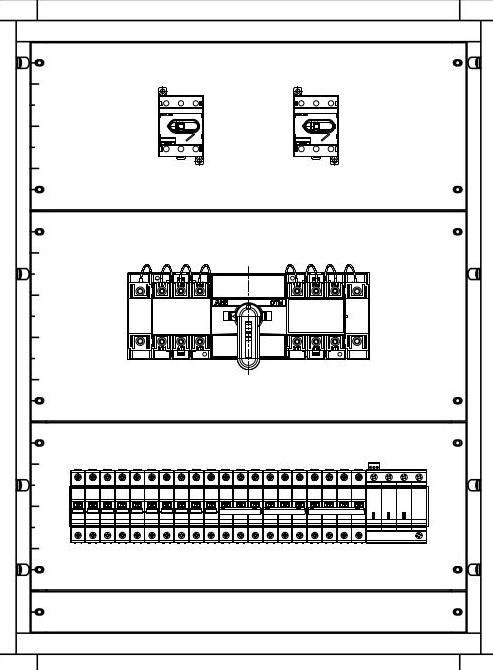

Primary circuit | Single-line diagram | Panel layout diagram |

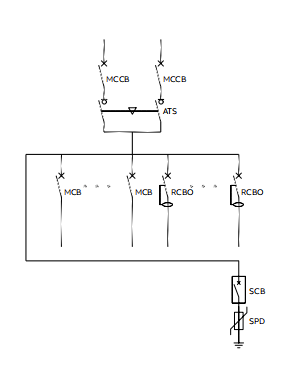

Emergency lighting distribution box |
|
|
Rated current (A) | 2*125 | |
Name | Model, specification and quantity | Installation kit |
Incoming line molded case circuit breaker | Tmax XT1 | Molded case circuit breaker (vertically installed) |
Incoming line isolating switch | / | |
Automatic transfer switch | OTM125F4C20D380C | Automatic transfer switch (horizontally installed) |
Feeder molded case circuit breaker | / | |
Main components and functions - Feeder miniature circuit breaker | S200 series | Modular DIN rail components |
Feeder residual current circuit breaker | GS201/DS201, S200+GDA/DDA | |
Surge protector | OVR T2 3N QS1 | |
Surge backup protection circuit breaker | POD T21 | |
Cabinet size HxWxD (mm) | 1000x600x240 | |
Cabinet installation space HxW (mm) | 900x550 | |
Remarks | The effective installation width of each row of modular DIN rail components is 24M (1M = 17.5mm); the installation height of modular DIN rail components ≤ 40A can be selected as 150mm. | |
Dual Power Supply Switching
Scheme number | A03 | |
Model | MDrail-E/GA | |
Primary circuit | Single-line diagram | Panel layout diagram |

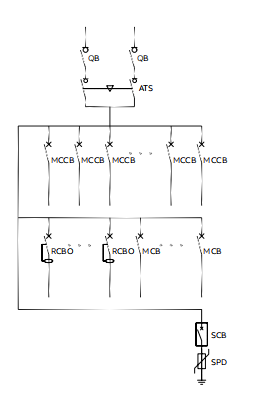

Elevator power distribution cabinet |
|  |
Rated current (A) | 2*250 | |
Name | Model, specification and quantity | Height of installation kit (mm) |
Incoming line molded case circuit breaker | / | |
Incoming line isolating switch | OT2502 | Isolating switch (horizontally installed) |
Automatic transfer switch | OTM250E4C10D380C1 | Automatic transfer switch (horizontally installed) |
Feeder molded case circuit breaker | Tmax XT2n | Molded case circuit breaker (vertically installed) |
Main components and functions - Feeder miniature circuit breaker | S200 series n | Modular DIN rail components |
Feeder residual current circuit breaker | GS201/DS201, S200 + GDA/DDAn | |
Surge protector | OVR T2 3N QS1 | |
Surge backup protection circuit breaker | POD T21 | |
Cabinet dimensions HxWxD (mm) | 1600x700x340 (height H does not include 100mm base) | |
Cabinet installation space HxW (mm) | 1500x640 | |
Remarks | The effective installation width of each row of modular DIN rail components is 28M (1M = 17.5mm); The installation height of modular DIN rail components ≤40A can be selected as 150mm; A maximum of 5 3P Tmax XT2 molded case circuit breakers can be vertically installed in each row. | |
Scheme number | A04 | |
Model | MDrail-E/GA | |

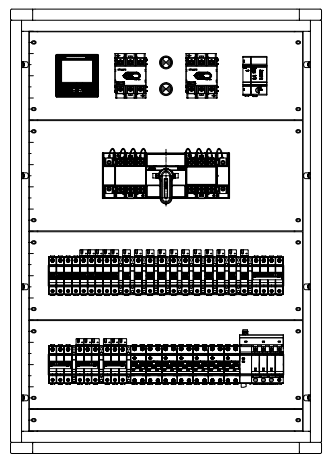

Primary circuit | Single-line diagram | Panel layout diagram |
Rated current (A) of the key power distribution cabinet for power |
|
|
2*630 | ||
Name | Model, specification and quantity | Height of installation kit (mm) |
Incoming line molded case circuit breaker | / | |
Incoming line isolating switch | OT6302 | Isolating switch (horizontally installed) |
Main components and functions - Automatic transfer switch | OTM630E4C10D380C1 | Automatic transfer switch (horizontally installed) |
Feeder molded case circuit breaker | Tmax XT3/XT1n | Molded case circuit breaker (vertically installed) |
Feeder miniature circuit breaker | S200 series n | Modular DIN rail components |
Feeder residual current circuit breaker | GS201/DS201, S200+GDA/DDAn | |
Surge protector | OVR T2 3N QS1 | |
Surge backup protection circuit breaker | POD T21 | |
Cabinet dimensions HxWxD (mm) | 1900x800x440 (height H does not include 100mm base) | |
Cabinet installation space HxW (mm) | 1800x740 | |
Remarks | The effective installation width of each row of modular DIN rail components is 34M (1M = 17.5mm): The installation height of modular DIN rail components ≤ 40A can be selected as 150mm; A maximum of 5 three-pole Tmax XT3 molded case circuit breakers or 7 three-pole Tmax XT1 molded case circuit breakers can be vertically installed in each row. | |
Scheme number | M01 | |
Model | MDrail-E/SM | |

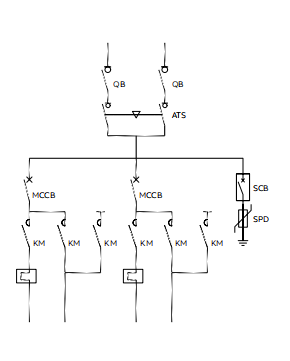

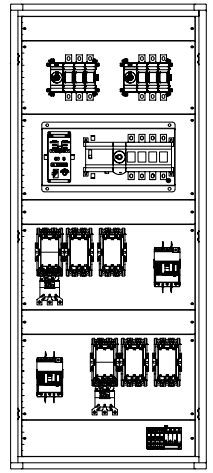

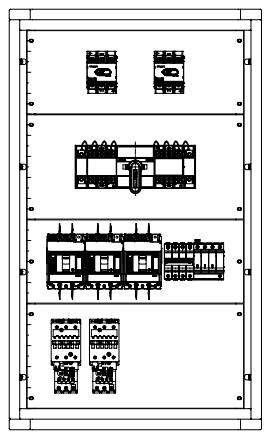

Primary circuit | Single-line diagram | Panel layout diagram |

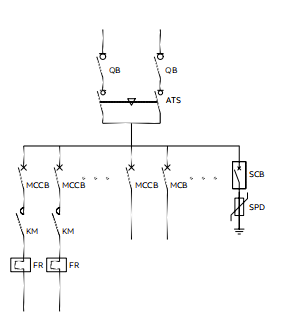

Fire protection power control box, direct starting (fan) |
|
|
Rated current (A) | 2*100 | |
Name | Model, specification and quantity | Height of installation kit (mm) |
Incoming line molded case circuit breaker | / | |
Incoming line isolating switch | OT100 | Isolating switch (horizontally installed) |
Automatic transfer switch | OTM100F4C20D380C | Automatic transfer switch (horizontally installed) |
Control molded case circuit breaker | Tmax XT2 | |
Control miniature circuit breaker | S200 series | Modular DIN rail components |
Main components and functions: Contactor + overload relay | AX + TAn | Contactor (vertically installed) |
Surge protector | OVR T2 3N QS1 | |
Surge backup protection circuit breaker | POD T21 | |
Cabinet size HxWxD (mm) | 1000x600x240 | |
Cabinet installation space HxW (mm) | 900x550 | |
Remarks | The effective installation width of each row of modular DIN rail components is 24M (1M = 17.5mm); A maximum of 4 3P Tmax XT2 molded case circuit breakers can be vertically installed in each row: Below AX25+TA25 is 200mm, below AX40+TA42 is 250mm, and below AX80+TA75 is 300mm. | |
Scheme number | M02 | ||
Model | MDrail-E/SM | ||

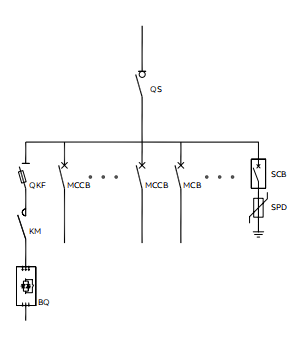

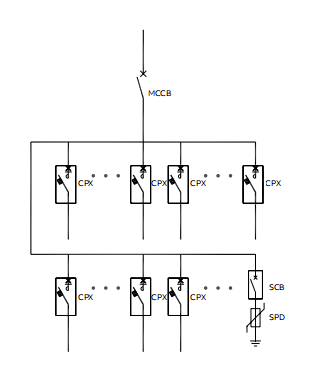

Primary circuit | Single-line diagram | Panel layout diagram | |
Ordinary power control box, direct starting (fan) |
|
| |
Rated current (A) | 160 | ||
Name | Model, specification and quantity | Installation kit | |
Incoming line molded case circuit breaker | Tmax XT1 | Molded case circuit breaker (horizontal installation) | |
Incoming line disconnector | / | ||
Automatic transfer switch | / | ||
Control molded case circuit breaker | / | ||
Main components and function control miniature circuit breaker | S200 series | Modular DIN rail components | |
Control and protection switch | CPX | Molded case circuit breaker (vertical installation) | |
Surge protector | OVR T2 3N QS | ||
Surge backup protection circuit breaker | POD T21 | ||
Cabinet size HxWxD (mm) | 1000x700x240 | ||
Cabinet installation space HxW (mm) | 900x650 | ||
Remarks | The effective installation width of each row of modular DIN rail components is 30M (1M = 17.5mm); a maximum of 4 CPX control and protection switches can be vertically installed in each row, and the distance below CPX25 (11kW) is 300mm. | ||
Scheme number | M03 | |
Model | MDrail-E/GM | |

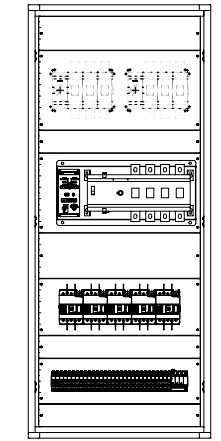

Primary circuit | Single-line diagram | Panel layout diagram |
Fire protection power control cabinet, star-delta starting (water pump/one for use and one for standby) |
|
|
Rated power (kW) | 2*90 | |
Name | Model, specification and quantity | Installation kit |
Incoming line molded case circuit breaker | / | |
Incoming line isolating switch | OT400 | Isolating switch (horizontally installed) |
Automatic transfer switch | OTM400E4C10D380C | Automatic transfer switch (horizontally installed) |
Main components and function control molded case circuit breaker | Tmax XT4 | Molded case circuit breaker (vertically installed) |
Control miniature circuit breaker | / | |
Contactor + overload relay | AX185 + TA200DU-175 | Contactor (vertically installed) |
Surge protector | OVR T2 3N QS | |
Surge backup protection circuit breaker | POD T21 | |
Cabinet size HxWxD (mm) | 1900x800x440 (height H does not include 100mm base) | |
Cabinet installation space HxW (mm) | 1800x740 | |
Remarks | Up to 5 3P Tmax XT3/XT4 molded case circuit breakers can be vertically installed in each row; below AX150+TA110 is 400mm; below AX205+TA200 is 450mm. | |
Scheme number | M04 | |
Model | MDrail-E/GM | |

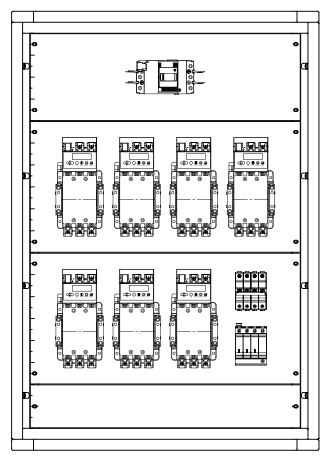

Primary circuit | Single-line diagram | Panel layout diagram |

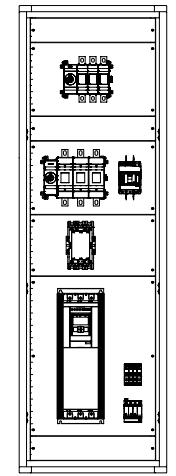

Ordinary power control cabinet with soft starter (cooling pump) |  |
|
Rated power (kW) | 110 | |
Name | Model, specification and quantity | Height of installation kit (mm) |
Incoming line molded case circuit breaker | / | |
Incoming line disconnector | OT400 | Disconnector (horizontally installed) |
Main components and functions: Disconnector fuse switch | OS400 | Disconnector fuse switch (horizontally installed) |
Control molded case circuit breaker | Tmax XT | |
Control soft starter | PSE210-600-70 | Soft starter (vertically installed) |
Contactor | AX2051 | Contactor (vertically installed) |
Surge protector | OVR T2 3N QS1 | |
Surge backup protection circuit breaker | POD T21 | |
Cabinet dimensions HxWxD (mm) | 1900x600x440 (height H does not include 100mm base) | |
Cabinet installation space HxW (mm) | 1800x540 | |
Remarks | The effective installation width of each row of modular DIN rail components is 22M (1M = 17.5mm); a maximum of 4 3P Tmax XT3/XT4 molded case circuit breakers can be vertically installed in each row. | |
Scheme number | D01 | |
Model | MDrail-E/SD | |

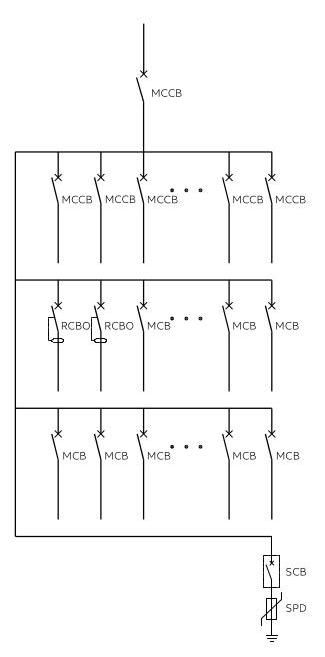

Primary circuit | Single-line diagram | Panel layout diagram |
Digital lighting distribution box |
|
|
Rated current (A) | 160 | |
Name | Model, specification and quantity | Height of installation kit (mm) |
Incoming line molded case circuit breaker | Tmax XT21 | Molded case circuit breaker (vertically installed) 250 |
Incoming line isolating switch | / | |
Automatic transfer switch | / | |
Feeder molded case circuit breaker | ||
Main components and functions - Feeder miniature circuit breaker | n | Modular DIN rail components |
Feeder residual current circuit breaker | GS201/DS201, S200+GDA/DDAn | |
Surge backup protection circuit breaker | POD T21 | |
Intelligent surge protector | eOVR T2 3N QS1 | |
Digital multi-function meter | M1M 20 I/O1 | Secondary control components |
Current transformer | LNS3 | |
Rail-mounted electricity meter | / | |
Digital component InSite pro M Digital terminal | Control unit SCU 2001 | |
Power supply module PSU151 | ||
Input/output module DM** | ||
Intelligent signal monitoring module SSDn | Installed on the side of MCB S200 | |
Intelligent monitoring mechanism module SATDn | Installed on the side of MCB S200 | |
Monitoring sensor CMS-100PS/101PS/102PSn | Installed on the upper end of MCB_S200 | |
Cabinet size HxWxD (mm) | 1000x600x240 | |
Cabinet installation space HxW (mm) | 900x550 | |
Remarks | Glass door (secondary control components such as multi-function meters are installed on the front panel) and metal door options are available; Optional incoming line load measurement: Electric energy metering module EM10, supporting current transformers 3*CT - S20/CT - S50/CT - S80; InSite - Bus internal data communication cable INS105 (flat cable, 5m), connector kit INS135 (used for fixed connection between CMS sensors, I/O modules and communication cables, 35 pieces per set). | |
Scheme number | D02 | ||
Model | MDrail-E/GD | ||
Primary circuit | Single-line diagram | Panel layout diagram | |
Digital power distribution cabinet |
|
| |
Rated current (A) | 630 | ||
Name | Model and specification | Quantity | Installation kit |
Incoming line molded case circuit breaker | Tmax XT5/XT6 | 1 | Molded case circuit breaker (vertically installed) |
Main components and functions - Incoming line isolating switch | / | ||
Automatic transfer switch | / | ||
Feeder molded case circuit breaker | Tmax XT1 | n | Molded case circuit breaker (vertically installed) |
Feeder miniature circuit breaker | S200 series | n | Modular DIN rail components |
Feeder residual current circuit breaker | GS201/DS201, S200+GDA/DDA | n | |
Surge backup protection circuit breaker | POD T2 | 1 | |
Intelligent surge protector | eOVR T2 3N OS | 1 | |
Digital multifunctional meter | M1M 201/O | 1 | Secondary control components |
Current transformer | LNS | 3 | |
Rail-mounted electricity meter | EO | n | Modular DIN rail components |
Digital component InSite pro M Digital terminal | Control unit SCU 200 | 1 | |
Power supply module PSU15 | 1 | ||
Input/output module DM** | |||
Intelligent signal monitoring module SSD | n | Installed on the side of MCB S200 | |
Intelligent monitoring mechanism module SATC | n | Installed on the side of MCB S200 | |
Monitoring sensor CMS-100PS/101PS/102PS | n | Installed on the upper end of MCB S200 | |
Cabinet size HxWxD (mm) | 1900x700x340 (Height H does not include 100mm base) | ||
Cabinet installation space HxW (mm) | 1800x640 | ||
Remarks | Glass door and metal door schemes (Secondary control components such as multifunctional meters are installed on the door panel) Optional: The HMI functional unit can be added according to project requirements; each SCU200 intelligent module can monitor 32 points (including single branch circuit loads, switch status, etc.) and 16 multifunctional meters. It is recommended to add intelligent control modules if the number of points exceeds 32. | ||
Scheme number | D03 | |
Model | MDrail-E/SD | |

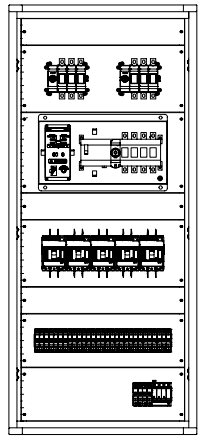

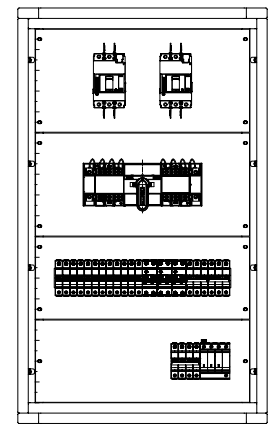

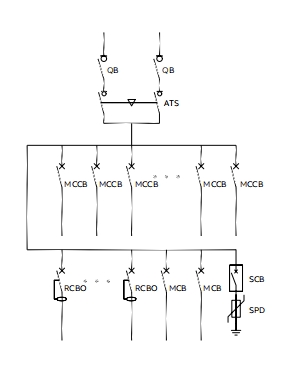

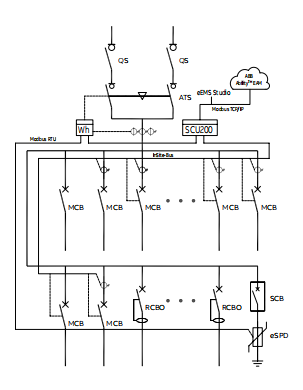

Primary circuit | Single-line diagram | Panel layout diagram |
Digital emergency lighting distribution box |
|  |
Rated current (A) | 2*125 | |
Name | Model, specification and quantity | Installation kit |
Incoming line molded case circuit breaker | / | |
Incoming line isolating switch | OT125 | Isolating switch (horizontally installed) |
Automatic transfer switch | OTM125F4C20D380C | Automatic transfer switch (horizontally installed) |
Feeder molded case circuit breaker | / | |
Main components and functions - Feeder miniature circuit breaker | S200 series | Modular DIN rail components |
Feeder residual current circuit breaker | GS201/DS201, S200+GDA/DDA | |
Surge backup protection circuit breaker | POD T21 | |
Intelligent surge protector | eOVR T2 3N QS1 | |
Digital multi-function meter | M1M 20 I/O1 | Secondary control components |
Current transformer | LNS3 | |
Rail-mounted electricity meter | / | |
Digital component InSite pro M - Digital terminal | Control unit SCU 2001 | |
Power supply module PSU151 | ||
Input/output module DM** | ||
Intelligent signal monitoring module SSDn | Installed on the side of MCB S200 | |
Intelligent monitoring mechanism module SATDn | Installed on the side of MCB S200 | |
Monitoring sensor CMS-100PS/101PS/102PSn | Installed on the upper end of MCB_S200 | |
Cabinet size HxWxD (mm) | 1000x700x240 | |
Cabinet installation space HxW (mm) | 900x650 | |
Remarks | Each SCU200 intelligent module can monitor 32 points (including single branch circuit load, switch status, etc.) and 16 multi-function meters. It is recommended to add an intelligent control module if the number of points exceeds 32. | |
Scheme number | D04 | |
Model | MDrail-E/SD | |

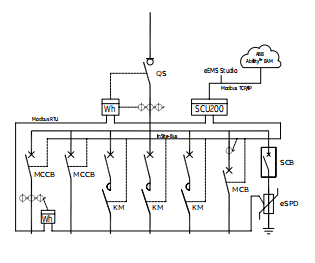

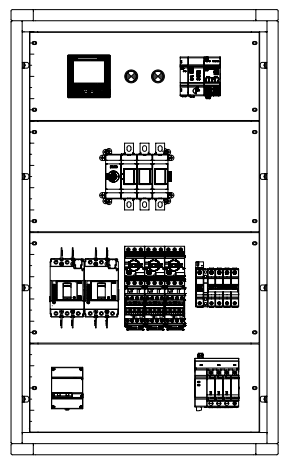

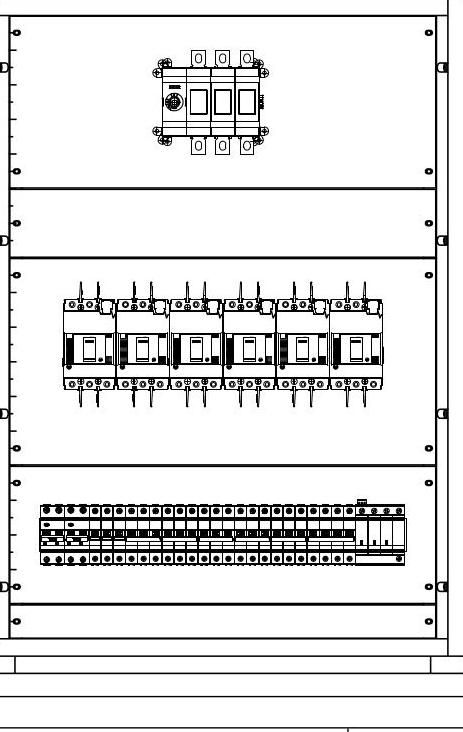

Primary circuit | Single-line diagram | Panel layout diagram |
Digital air-conditioning power distribution box |
|
|
Rated current (A) | 250 | |
Name | Model, specification and quantity | Installation kit |
Incoming line molded case circuit breaker | / | |
Incoming line isolating switch | OT250 | Isolating switch (horizontally installed) |
Automatic transfer switch | / | |
Feeder molded case circuit breaker | Tmax XT1 | Molded case circuit breaker (vertically installed) |
Main components and functions - Feeder miniature circuit breaker | S200 series n | Modular DIN rail components |
Motor protection circuit breaker | MS116/MS132+AXn | |
Surge backup protection circuit breaker | POD T21 | |
Intelligent surge protector | eOVR T2 3N QS1 | |
Digital multi-function meter | M1M 201/O1 | Secondary control components |
Current transformer | LNS3 | |
Rail-mounted electricity meter | EQn | Modular DIN rail components |
Digital component InSite pro M Digital terminal | Control unit SCU 2001 | |
Power supply module PSU151 | ||
Input/output module DM**1 | ||
Intelligent signal monitoring module SSDn | Installed on the side of MCB_S200 | |
Intelligent monitoring mechanism module SATDn | Installed on the side of MCB_S200 | |
Monitoring sensor CMS-100PS/101PS/102PSn | Installed on the upper end of MCB S200 | |
Cabinet size HxWxD (mm) | 1000x600x240 | |
Cabinet installation space HxW (mm) | 900x550 | |
Remarks | It is recommended to use the metal door scheme. There are many control circuits for air-conditioning outdoor units, indoor units, fresh air fans, etc. Secondary control components such as multi-function meters, buttons, and indicator lights are installed on the metal door panel. The input module DI11 is used to monitor the status of the automatic transfer switch and contactors, and to detect and count the energy consumption of energy efficiency meters such as water and gas meters through pulse input. | |
Note: 1) Maximum door opening angle is 180°
2) Generally, the height H should be 100~200mm larger than the width w.
Height | Width W [mm] | Depth D [mm] |
500/600/700/800/900/1000 | 400/500/600/700/800 | 190/240/290 |
500/600/700/800/900/1000 | 600+300/700+300/800+300 | 190/240/290 |
Note: 1) The maximum door opening angle is 180°
Height | Width W [mm] | Depth D [mm] |
1400/1700/2000 | 600/700/800 | 340/440 |
Regular applications | Names of main component solutions | ABB core product series |
Digitalization and energy efficiency management | Intelligent energy efficiency meters | M4M, M1M, EQ |
Terminal digital system components | InSite pro M | |
Incoming line switches, load protection and isolation protection | Molded case circuit breakers | Tmax, Tmax XT, Formula A, Formula DSP |
Isolating switches, isolating switch fuse - combinations | OT, OS series | |
Line protection, load and personal protection | Miniature circuit breakers | S200, SH200, SE200 |
Residual current operated circuit breakers | ||
Miniature isolating switches | ||
Dual - power switching | Automatic transfer switches for dual - power supply | OTM_20D/21D, DPT - CB010/011, ATS - CB021, TruOne |
Lightning protection | Surge protective devices | OVR QS |
Backup protection circuit breakers | POD | |
Motor control and protection | Control and protection switches | CPX |
Contactors | AX, AF series | |
Thermal overload relays | TA and accessories | |
Motor starters | MS and accessories | |
Soft starters | PSR, PSE, PSTX | |
Arc fault protection | Arc fault protectors | S - ARC, DS - ARC |
Precision power distribution | Hot - swappable busbar systems | SmissLine TP series |
Medical IT | Medical power supplies and monitoring | H+line series |
Command functions | Button indicating devices | Buttons and emergency stops, indicator lights, selector switches |
