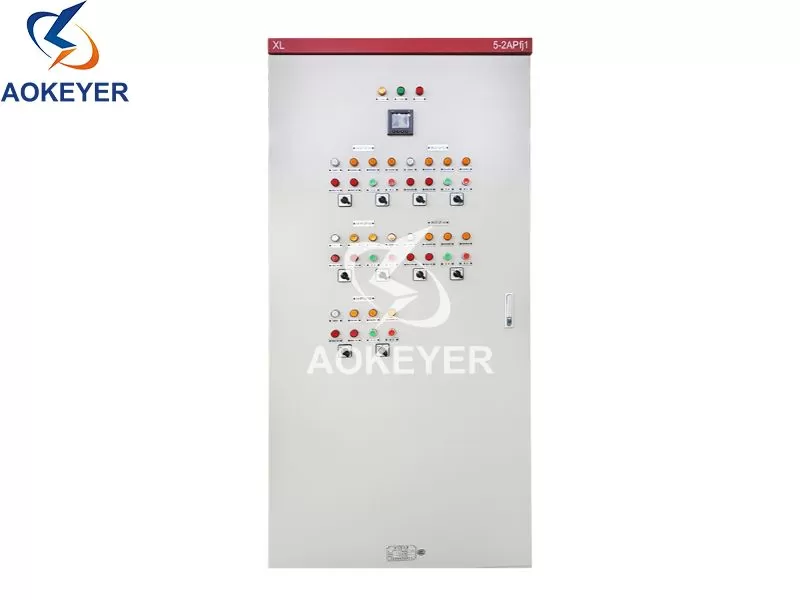

XL-21 power distribution box is suitable for ac 50 (60) HZ, voltage to 690V, power supply system, for power or lighting power distribution, suitable for industrial and mining enterprises and various civil buildings, with overload, short circuit and leakage protection. This product meets the standard of GB 7251.1 Low Pressure Complete Switchgear and Control Equipment.
Download Brochure
The 100A~630A Low Voltage Distribution Box, a type of capacitor compensation cabinet, is designed for safe and reliable power distribution in industrial plants, commercial buildings, and civil infrastructures. Suitable for AC 50/60Hz systems with voltages up to 690V, this distribution box ensures efficient power management for both lighting and electrical equipment.
With advanced overload, short-circuit, and leakage protection, it guarantees safety and stability across all installations. Ideal for factories, offices, mining facilities, and other demanding environments, this distribution box provides a modular and customizable solution for your power distribution needs.
Rated Current: 100A~630A, adjustable to suit your load requirements
Voltage Rating: Up to 690V AC, compatible with global low-voltage systems
Frequency: AC 50/60Hz, suitable for international standards
Protection: Overload, short-circuit, and leakage protection included
Modular Design: Flexible configurations for easy installation and maintenance
Applications: Industrial plants, commercial buildings, data centers, mining operations
This low voltage distribution box is ideal for a wide range of applications:
Industrial Factories: Power supply for machinery, lighting, and production lines
Commercial Buildings: Efficient distribution for offices, shopping centers, and hotels
Mining & Processing Plants: Reliable and safe power management in harsh environments
Civil Infrastructure: Schools, hospitals, and public utilities
Renewable Energy Projects: Solar and wind power low-voltage distribution
Reliable Safety Protection – Integrated overload, short-circuit, and leakage protection ensures operational safety.
International Compatibility – Suitable for AC 50/60Hz, voltages up to 690V, meeting IEC and CE requirements.
Flexible Installation – Modular and fixed configurations available to fit different facility layouts.
Industrial & Commercial Use – Designed for high-performance applications in factories, offices, and mining sites.
Customizable Solutions – OEM and ODM options available to match your project specifications.

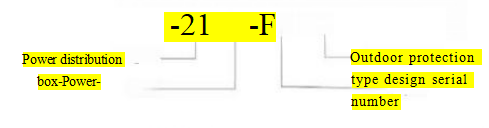

■ Rated operating voltage: 380V (690V)
■ Rated operating voltage: 50 HZ (60 HZ)
■ The maximum rated working current is 630A
■ Rated short time (1S) tolerance current 30 KA
■ Rated peak tolerance current of 63 KA
■ Protection grade IP20, P30, IP40, IP54
■ The ambient temperature is not higher than +40℃ and not lower than -5℃, and the average temperature within 24 hours is not higher than +300℃.
■ The relative humidity of the ambient air is not higher than 50% at +40℃. At lower temperatures, the relative humidity can be higher, but the condensation caused by temperature changes should be taken into account (For example, 90% at +200℃).
■ The equipment should be installed in a place without severe vibration and impact, and in a place where the electrical components are not corroded
■ The inclination of the equipment installation to the ground should not exceed 5 degrees
■ If the user has special requirements, they can negotiate with the manufacturer to solve

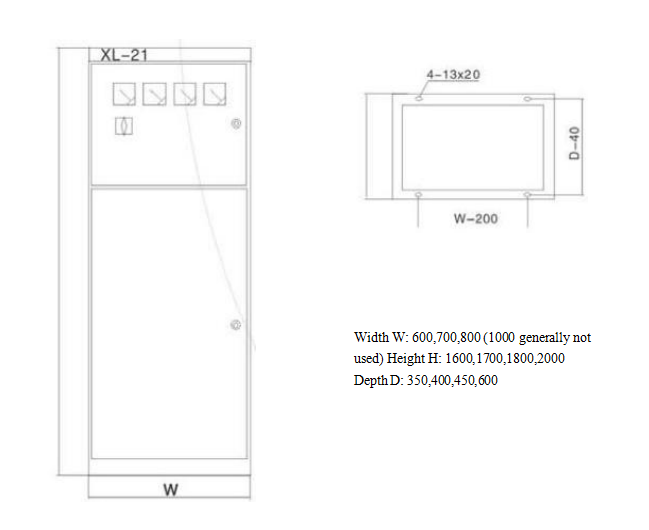

The box is made of high quality steel bending, with electrostatic spraying surface treatment and floor installation. The door is generally a single door, which can also be divided into upper and lower doors. In order to improve the protection level after the door is opened, the second door can be installed, so that the operating parts of the components expose the second door, which will greatly improve the personal safety of the operators.
Add a canopy on the top of the outdoor protective power distribution box, the door and box adopt U-shaped double fold edge, and glue strip, and the protection level reaches IP54.
■ After the goods arrive at the site, check whether the packaging is in good condition, whether the product has a collision phenomenon, if there is any problem, inform the manufacturer in time
■ The product is installed on the trough steel base or cement base, can be welded or bolted connection mode, the trough steel base user self-provided
■ The box should be dry and clean, the operation of the components is flexible, there should be no lag or excessive operation force phenomenon.
■ Measure the insulation resistance value with 500V megohm.
The user shall provide the following information when ordering
■ Primary system diagram and a secondary schematic diagram
■ The entry and exit line mode of the products
■ Code code or sample plate painted on the surface
■ Special requirements that do not comply with the normal use of the product.
