Aluminum Alloy Cable Tray
Aluminum Alloy Cable Tray
LQJ Series of aluminum cable are new varieties of products resarched and produced by our factory and Qinhua university. with the rapid development of modern industry, the requirement of power cable, control cable and communication cable increases So quickly, therefore cables are widely used. They can be used for the factory and the ship, So that the cable laying of the oil extraction terrace in the sea reaches standardization , and general purpose. They give the convinience to the project design, construction installlation and safe production.
The aluminim cable produced by our factory is adopted with the same effect by the standarization of American material, having the function of high touch-resistence. Because of the reasonable design of the cross section of aluminum material , the integral structire is So compact, flexible and changeable in installation that it has such advantages as heavy load, ligh weight, convenient installation and beautiful modelling, holding a safe lead at home and adroad.
Download Brochure

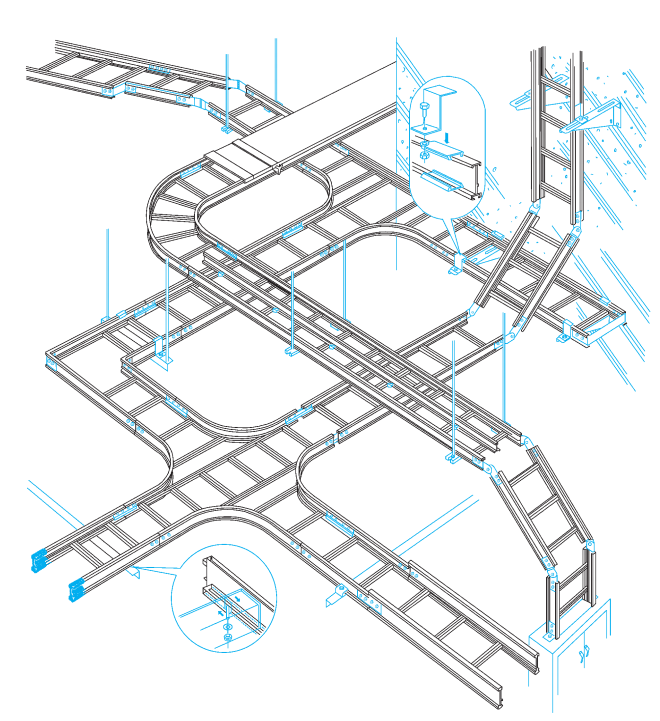

NEWLY-PRODUCED SERIES OF HIGH ROTPROOF
ALUNIMIUM ALLOY ELECTRIC CABLES BRIDGE FROMES

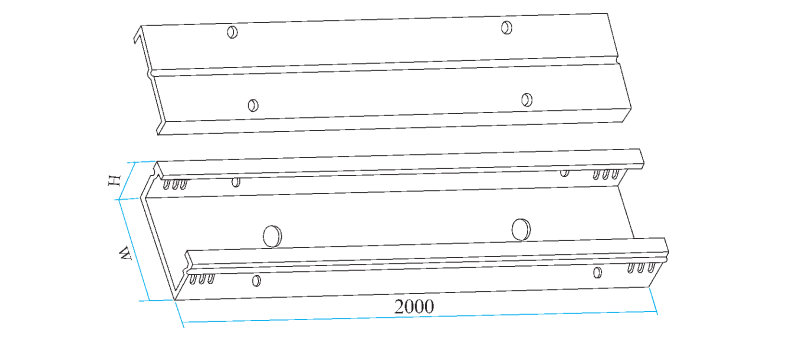

LQJ-WC Wiring Cable Tray Model
| Model | H | W | Weight |
| LQJ-WC-2 . 5 -5 | 25 | 50 | 2 .73 |
| LQJ-WC-2.5 - 10 | 100 | 4 . 61 | |
| LQJ-WC-2 .5 - 15 | 150 | 5 . 07 | |
| LQJ-WC-2.5 -20 | 200 | 7 . 67 | |
| LQJ-WC5 -5 | 50 | 50 | 3 . 20 |
| LQJ-WC5- 10 | 100 | 5 . 12 | |
| LQJ-WC5- 15 | 150 | 6.96 | |
| LQJ-WC5-20 | 200 | 8 . 19 | |
| LQJ-WC10-5 | 100 | 6 . 18 | |
| LQJ-WC10- 10 | 150 | 8 . 02 | |
| LQJ-WC10- 15 | 200 | 9 . 24 | |
| LQJ-WC10-20 | 250 | 11 . 08 |

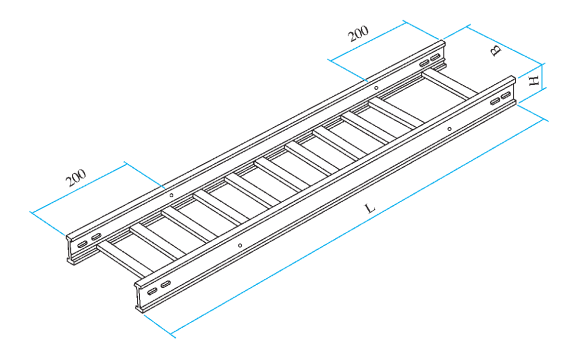

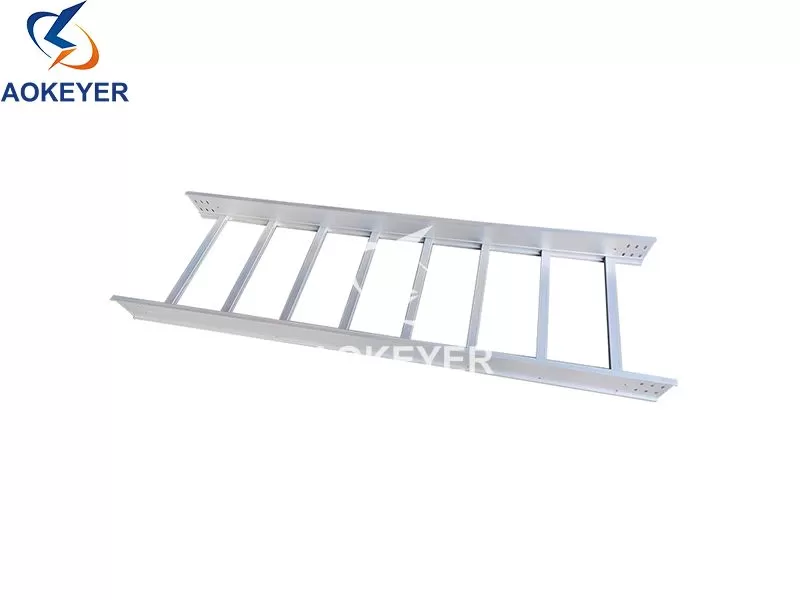

LQJ-T Ladder Frame
| Model | B | H | (kg) | Cover |
| LQJ-T-6-10 | 100 | 60 | 6.33 | 2.71 |
| LQJ-T-6-20 | 200 | 7.12 | 4.72 | |
| LQJ-T-6-30 | 300 | 7.79 | 6.68 | |
| LQJ-T-6-40 | 400 | 8.88 | 8.66 | |
| LQJ-T-11-20 | 200 | 110 | 9.44 | 4.72 |
| LQJ-T-11-30 | 300 | 10.06 | 6.68 | |
| LQJ-T-11-40 | 400 | 11.54 | 8.66 | |
| LQJ-T-11-50 | 500 | 12.21 | 12.75 | |
| LQJ-T-11-60 | 600 | 12.86 | 15.11 | |
| LQJ-T-11-80 | 800 | 14.20 | 23.13 | |
| LQJ-T-11-100 | 1000 | 15.54 | 28.63 | |
| LQJ-T-14-40 | 400 | 140 | 13.13 | 8.66 |
| LQJ-T-14-50 | 600 | 14.45 | 15.11 | |
| LQJ-T-14-60 | 800 | 15.80 | 23.13 | |
| LQJ-T-14-80 | 1000 | 17.14 | 28.63 | |
| LQJ-T-14-100 | 400 | 180 | 15.91 | 8.66 |
| LQJ-T-18-60 | 600 | 17.59 | 15.11 | |
| LQJ-T-18-80 | 800 | 19.16 | 23.13 | |
| LQJ-T-18-100 | 1000 | 20.88 | 28.63 | |
| LQJ-T-20-40 | 400 | 200 | 16.24 | 8.66 |
| LQJ-T-20-60 | 600 | 19.58 | 15.11 | |
| LQJ-T-20-80 | 800 | 21.59 | 23.13 | |
| LQJ-T-20-100 | 1000 | 23.58 | 28.63 |

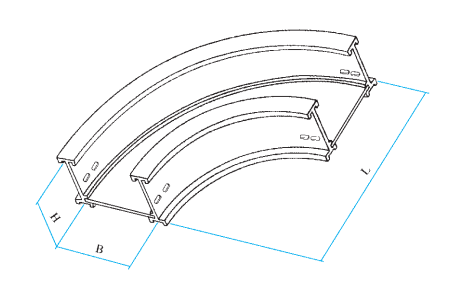

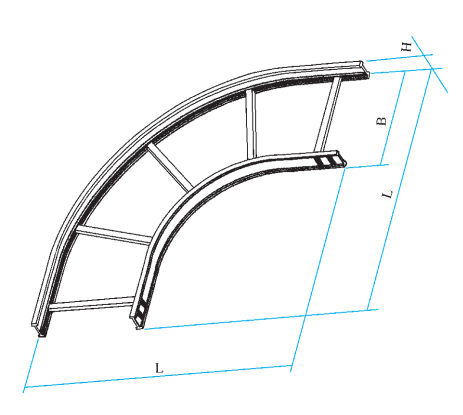

LQJ-RT Horizontal Elbow
| Model | B | H | L R=300 | (kg) | Cover |
| LQJ-RT-6-10 | 100 | 60 | 600 | 3.51 | 0.84 |
| LQJ-RT-6-20 | 200 | 700 | 3.68 | 1.62 | |
| LQJ-RT-6-30 | 300 | 800 | 4.52 | 2.51 | |
| LQJ-RT-6-40 | 400 | 900 | 5.35 | 4.70 | |
| LQJ-RT-11-20 | 200 | 110 | 700 | 4.82 | 1.62 |
| LQJ-RT-11-30 | 300 | 800 | 5.88 | 2.51 | |
| LQJ-RT-11-40 | 400 | 900 | 6.86 | 4.70 | |
| LQJ-RT-11-50 | 500 | 1000 | 8.26 | 6.24 | |
| LQJ-RT-11-60 | 600 | 1100 | 10.08 | 8.72 | |
| LQJ-RT-11-80 | 800 | 1200 | 12.74 | 13.40 | |
| LQJ-RT-11-100 | 1000 | 1300 | 15.68 | 16.02 | |
| LQJ-RT-14-40 | 400 | 140 | 900 | 9.24 | 4.70 |
| LQJ-RT-14-50 | 600 | 1100 | 10.64 | 8.72 | |
| LQJ-RT-14-60 | 800 | 1300 | 15.26 | 13.40 | |
| LQJ-RT-14-80 | 1000 | 1500 | 18.06 | 16.02 | |
| LQJ-RT-14-100 | 400 | 180 | 900 | 11.62 | 4.70 |
| LQJ-RT-18-60 | 600 | 1100 | 13.02 | 8.72 | |
| LQJ-RT-18-80 | 800 | 1300 | 17.64 | 13.40 | |
| LQJ-RT-18-100 | 1000 | 1500 | 20.44 | 16.02 | |
| LQJ-RT-20-40 | 400 | 200 | 900 | 14.00 | 4.70 |
| LQJ-RT-20-60 | 600 | 1100 | 15.40 | 8.72 | |
| LQJ-RT-20-80 | 800 | 1300 | 20.02 | 13.40 | |
| LQJ-RT-20-100 | 1000 | 1500 | 22.82 | 16.02 |

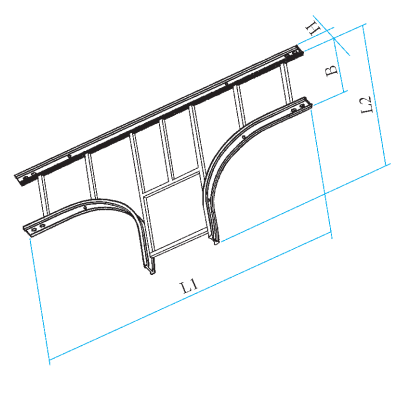

LQJ-ST Horizontal Elbow
| Model | B | H | L1 R=300 | L2 R=300 | (kg) | Cover |
| LQJ-ST-6-10 | 100 | 60 | 1100 | 600 | 4.98 | 1.52 |
| LQJ-ST-6-20 | 200 | 1200 | 700 | 5.85 | 2.93 | |
| LQJ-ST-6-30 | 300 | 1300 | 800 | 6.84 | 4.52 | |
| LQJ-ST-6-40 | 400 | 1400 | 900 | 7.28 | 8.46 | |
| LQJ-ST-11-20 | 200 | 110 | 1200 | 700 | 7.83 | 2.93 |
| LQJ-ST-11-30 | 300 | 1300 | 800 | 8.74 | 4.52 | |
| LQJ-ST-11-40 | 400 | 1400 | 900 | 9.98 | 8.46 | |
| LQJ-ST-11-50 | 500 | 1500 | 1000 | 10.64 | 11.22 | |
| LQJ-ST-11-60 | 600 | 1600 | 1100 | 11.87 | 12.54 | |
| LQJ-ST-11-80 | 800 | 1800 | 1200 | 15.45 | 24.11 | |
| LQJ-ST-11-100 | 1000 | 2000 | 1300 | 19.02 | 28.83 | |
| LQJ-ST-14-40 | 400 | 140 | 1400 | 900 | 12.01 | 8.46 |
| LQJ-ST-14-50 | 600 | 1600 | 1100 | 14.56 | 12.45 | |
| LQJ-ST-14-60 | 800 | 1800 | 1300 | 17.29 | 24.11 | |
| LQJ-ST-14-80 | 1000 | 2000 | 1500 | 19.72 | 28.83 | |
| LQJ-ST-14-100 | 400 | 180 | 1400 | 900 | 14.38 | 8.46 |
| LQJ-ST-18-60 | 600 | 1600 | 1100 | 16.93 | 12.54 | |
| LQJ-ST-18-80 | 800 | 1800 | 1300 | 19.66 | 24.1l | |
| LQJ-ST-18-100 | 1000 | 2000 | 1500 | 22.09 | 28.83 | |
| LQJ-ST-20-40 | 400 | 200 | 1400 | 900 | 17.70 | 8.46 |
| LQJ-ST-20-60 | 600 | 1600 | 1100 | 21.32 | 12.54 | |
| LQJ-ST-20-80 | 800 | 1800 | 1300 | 26.21 | 24.11 | |
| LQJ-ST-20-100 | 1000 | 2000 | 1500 | 31.74 | 28.83 |

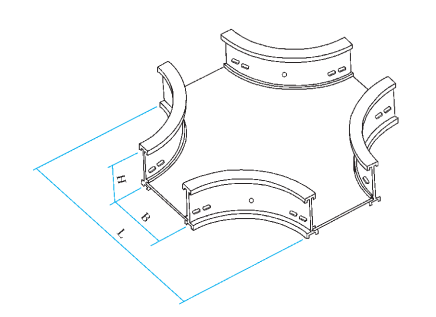

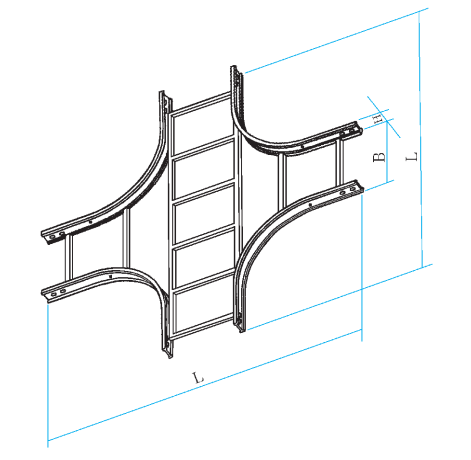

LQJ-ST4 Horizontal cross
| Model | B | H | L R=300 | (kg) | Cover |
| LQJ-ST4-6-10 | 100 | 60 | 1100 | 6.60 | 2.10 |
| LQJ-ST4-6-20 | 200 | 1200 | 7.80 | 4.05 | |
| LQJ-ST4-6-30 | 300 | 1300 | 9.02 | 6.27 | |
| LQJ-ST4-6-40 | 400 | 1400 | 10.64 | 11.73 | |
| LQJ-ST4-11-20 | 200 | 110 | 1200 | 9.77 | 4.05 |
| LQJ-ST4-11-30 | 300 | 1300 | 10.95 | 6.27 | |
| LQJ-ST4-11-40 | 400 | 1400 | 12.59 | 11.73 | |
| LQJ-ST4-11-50 | 500 | 1500 | 13.88 | 15.60 | |
| LQJ-ST4-11-60 | 600 | 1600 | 15.15 | 21.78 | |
| LQJ-ST4-11-80 | 800 | 1800 | 18.60 | 33.48 | |
| LQJ-ST4-11-100 | 1000 | 2000 | 22.50 | 40.09 | |
| LQJ-ST4-14-40 | 400 | 140 | 1400 | 13.41 | 11.73 |
| LQJ-ST4-14-50 | 600 | 1600 | 15.96 | 21.78 | |
| LQJ-ST4-14-60 | 800 | 1800 | 18.69 | 33.48 | |
| LQJ-ST4-14-80 | 1000 | 2000 | 22.80 | 40.09 | |
| LQJ-ST4-14-100 | 400 | 180 | 1400 | 15.78 | 11.73 |
| LQJ-ST4-18-60 | 600 | 1600 | 18.33 | 21.78 | |
| LQJ-ST4-18-80 | 800 | 1800 | 21.06 | 33.48 | |
| LQJ-ST4-18-100 | 1000 | 2000 | 24.21 | 40.09 | |
| LQJ-ST4-20-40 | 400 | 200 | 1400 | 21.90 | 11.73 |
| LQJ-ST4-20-60 | 600 | 1600 | 25.76 | 21.78 | |
| LQJ-ST4-20-80 | 800 | 1800 | 30.90 | 33.48 | |
| LQJ-ST4-20-100 | 1000 | 2000 | 36.75 | 40.09 |

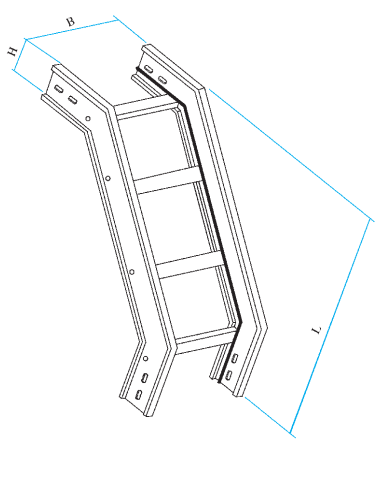

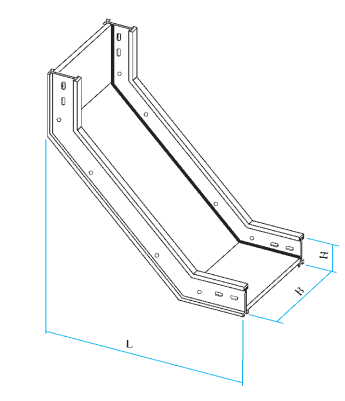

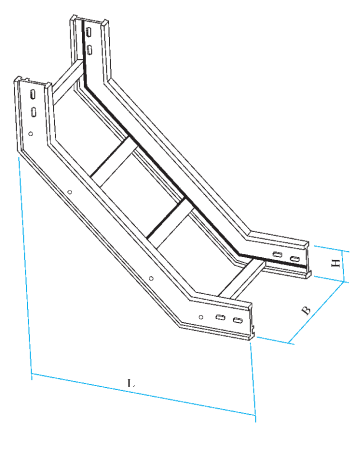

LQJ-TRT vertical Elbow
| Model | B | H | L R=300 R=600 | (kg) | Cover | |||
| LQJ-TRT-6-10 | 100 | 60 | 560 | 860 | 1.40 | 1.58 | 0.91 | 1.32 |
| LQJ-TRT-6-20 | 200 | 1.73 | 3.00 | 1.48 | 2.15 | |||
| LQJ-TRT-6-30 | 300 | 2.04 | 3.56 | 2.05 | 2.98 | |||
| LQJ-TRT-6-40 | 400 | 2.39 | 4.05 | 3.49 | 5.08 | |||
| LQJ-TRT-11-20 | 200 | 110 | 610 | 910 | 2.39 | 3.45 | 1.62 | 2.29 |
| LQJ-TRT-11-30 | 300 | 2.70 | 4.01 | 2.24 | 3.18 | |||
| LQJ-TRT-11-40 | 400 | 3.00 | 4.50 | 3.81 | 5.43 | |||
| LQJ-TRT-11-50 | 500 | 3.35 | 5.10 | 4.66 | 6.63 | |||
| LQJ-TRT-11-60 | 600 | 3.68 | 5.55 | 6.86 | 9.76 | |||
| LQJ-TRT-11-80 | 800 | 4.32 | 6.71 | 8.95 | 12.73 | |||
| LQJ-TRT-11-100 | 1000 | 4.99 | 7.80 | 11.02 | 15.78 | |||
| LQJ-TRT-14-40 | 400 | 140 | 640 | 940 | 3.00 | 4.80 | 3.91 | 5.53 |
| LQJ-TRT-14-50 | 600 | 3.60 | 5.55 | 7.11 | 10.01 | |||
| LQJ-TRT-14-60 | 800 | 4.35 | 6.98 | 9.27 | 13.05 | |||
| LQJ-TRT-14-80 | 1000 | 5.10 | 8.06 | 11.42 | 16.18 | |||
| LQJ-TRT-14-100 | 400 | 180 | 680 | 980 | 3.05 | 4.86 | 4.22 | 5.84 |
| LQJ-TRT-18-60 | 600 | 3.65 | 5.72 | 7.57 | 10.47 | |||
| LQJ-TRT-18-80 | 800 | 4.37 | 7.04 | 9.87 | 13.65 | |||
| LQJ-TRT-18-100 | 1000 | 5.15 | 8.12 | 12.15 | 16.91 | |||
| LQJ-TRT-20-40 | 400 | 200 | 700 | 1000 | 5.94 | 8.55 | 4.34 | 5.96 |
| LQJ-TRT-20-60 | 600 | 6.90 | 10.20 | 7.78 | 10.68 | |||
| LQJ-TRT-20-80 | 800 | 7.89 | 11.85 | 10.15 | 13.93 | |||
| LQJ-TRT-20-100 | 1000 | 8.85 | 13.47 | 12.50 | 17.26 | |||
LQJ-ART vertical Elbow
| Model | B | H | L R=300 R=600 | (kg) | Cover | |||
| LQJ-ART-6-10 | 100 | 60 | 560 | 860 | 1.40 | 1.58 | 0.81 | 1.22 |
| LQJ-ART-6-20 | 200 | 1.73 | 3.00 | 1.32 | 1.99 | |||
| LQJ-ART-6-30 | 300 | 2.04 | 3.56 | 1.83 | 2.76 | |||
| LQJ-ART-6-40 | 400 | 2.39 | 4.05 | 3.09 | 4.71 | |||
| LQJ-ART-11-20 | 200 | 110 | 610 | 910 | 2.39 | 3.45 | 1.32 | 1.99 |
| LQJ-ART-11-30 | 300 | 2.70 | 4.01 | 1.82 | 2.76 | |||
| LQJ-ART-11-40 | 400 | 3.00 | 4.50 | 3.09 | 4.71 | |||
| LQJ-ART-11-50 | 500 | 3.35 | 5.10 | 3.76 | 5.73 | |||
| LQJ-ART-11-60 | 600 | 3.68 | 5.55 | 5.54 | 8.44 | |||
| LQJ-ART-11-80 | 800 | 4.32 | 6.71 | 7.23 | 11.01 | |||
| LQJ-ART-11-100 | 1000 | 4.99 | 7.80 | 8.90 | 13.66 | |||
| LQJ-ART-14-40 | 400 | 140 | 640 | 940 | 3.00 | 4.80 | 3.09 | 4.71 |
| LQJ-ART-14-50 | 600 | 3.60 | 5.55 | 5.54 | 8.44 | |||
| LQJ-ART-14-60 | 800 | 4.35 | 6.98 | 7.23 | 11.01 | |||
| LQJ-ART-14-80 | 1000 | 5.10 | 8.06 | 8.90 | 13.66 | |||
| LQJ-ART-14-100 | 400 | 180 | 680 | 980 | 3.05 | 4.86 | 3.09 | 4.71 |
| LQJ-ART-18-60 | 600 | 3.65 | 5.72 | 5.54 | 8.44 | |||
| LQJ-ART-18-80 | 800 | 4.37 | 7.04 | 7.23 | 11.01 | |||
| LQJ-ART-18-100 | 1000 | 5.15 | 8.12 | 8.90 | 13.66 | |||
| LQJ-ART-20-40 | 400 | 200 | 700 | 1000 | 5.94 | 8.55 | 3.09 | 4.71 |
| LQJ-ART-20-60 | 600 | 6.90 | 10.20 | 5.54 | 8.44 | |||
| LQJ-ART-20-80 | 800 | 7.89 | 11.85 | 7.23 | 11.01 | |||
| LQJ-ART-20-100 | 1000 | 8.85 | 13.47 | 8.90 | 13.66 | |||

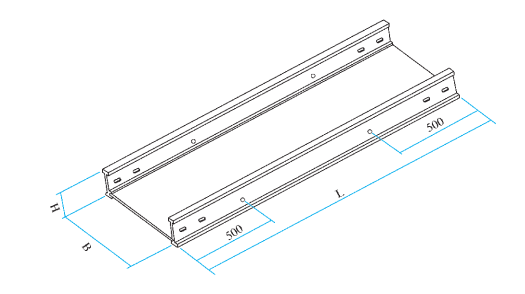

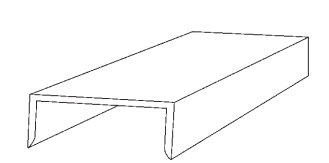

LQJ-C Trovgh-shaped Frame
| Mode | B | H | (kg) | Cover |
| LQJ-C-6-10 | 100 | 60 | 10.09 | 2.71 |
| LQJ-C-6-20 | 200 | 11.10 | 4.72 | |
| LQJ-C-6-30 | 300 | 12.09 | 6.68 | |
| LQJ-C-6-40 | 400 | 13.13 | 8.66 | |
| LQJ-C-11-20 | 200 | 110 | 14.55 | 4.72 |
| LQJ-C-11-30 | 300 | 15.57 | 6.68 | |
| LQJ-C-11-40 | 400 | 16.58 | 8.66 | |
| LQJ-C-11-50 | 500 | 19.22 | 12.75 | |
| LQJ-C-11-60 | 600 | 21.69 | 15.11 | |
| LQJ-C-11-80 | 800 | 29.85 | 23.13 | |
| LQJ-C-11-100 | 1000 | 35.46 | 28.63 | |
| LQJ-C-14-40 | 400 | 140 | 19.78 | 8.66 |
| LQJ-C-14-50 | 600 | 21.80 | 15.11 | |
| LQJ-C-14-60 | 800 | 30.27 | 23.13 | |
| LQJ-C-14-80 | 1000 | 36.05 | 28.63 | |
| LQJ-C-14-100 | 400 | 180 | 24.10 | 8.66 |
| LQJ-C-18-60 | 600 | 26.13 | 15.11 | |
| LQJ-C-18-80 | 800 | 30.96 | 23.13 | |
| LQJ-C-18-100 | 1000 | 36.86 | 28.63 | |
| LQJ-C-20-40 | 400 | 200 | 23.58 | 8.66 |
| LQJ-C-20-60 | 600 | 31.25 | 15.11 | |
| LQJ-C-20-80 | 800 | 40.31 | 23.13 | |
| LQJ-C-20-100 | 1000 | 46.95 | 28.63 |
LQJ-RC Horizontal Elbow
| Model | B | H | L R=300 | (kg) | Cover |
| LQJ-RC-6-10 | 100 | 60 | 600 | 3.75 | 0.84 |
| LQJ-RC-6-20 | 200 | 700 | 4.36 | 1.62 | |
| LQJ-RC-6-30 | 300 | 800 | 5.60 | 2.51 | |
| LQJ-RC-6-40 | 400 | 900 | 6.99 | 4.70 | |
| LQJ-RC-11-20 | 200 | 110 | 700 | 6.04 | 1.62 |
| LQJ-RC-11-30 | 300 | 800 | 7.05 | 2.51 | |
| LQJ-RC-11-40 | 400 | 900 | 8.23 | 4.70 | |
| LQJ-RC-11-50 | 500 | 1000 | 9.91 | 6.24 | |
| LQJ-RC-11-60 | 600 | 1100 | 12.56 | 8.72 | |
| LQJ-RC-11-80 | 800 | 1200 | 16.85 | 13.40 | |
| LQJ-RC-11-100 | 1000 | 1300 | 23.88 | 16.02 | |
| LQJ-RC-14-40 | 400 | 140 | 900 | 14.70 | 4.70 |
| LQJ-RC-14-50 | 600 | 1100 | 12.76 | 8.72 | |
| LQJ-RC-14-60 | 800 | 1300 | 18.30 | 13.40 | |
| LQJ-RC-14-80 | 1000 | 1500 | 24.23 | 16.02 | |
| LQJ-RC-14-100 | 400 | 180 | 900 | 16.26 | 4.70 |
| LQJ-RC-18-60 | 600 | 1100 | 15.62 | 8.72 | |
| LQJ-RC-18-80 | 800 | 1300 | 21.16 | 13.40 | |
| LQJ-RC-18-100 | 1000 | 1500 | 24.52 | 16.02 | |
| LQJ-RC-20-40 | 400 | 200 | 900 | 16.80 | 4.70 |
| LQJ-RC-20-60 | 600 | 1100 | 19.19 | 8.72 | |
| LQJ-RC-20-80 | 800 | 1300 | 24.70 | 13.40 | |
| LQJ-RC-20-100 | 1000 | 1500 | 32.93 | 16.02 |

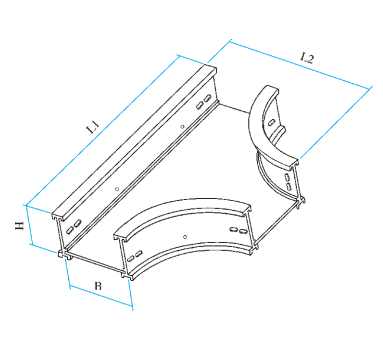

LQJ-SC Horizontal Elbow
| Model | B | H | L1 R=300 | L2 R=300 | (kg) | Cover |
| LQJ-SC-6-10 | 100 | 60 | 1100 | 600 | 5.73 | 1.52 |
| LQJ-SC-6-20 | 200 | 1200 | 700 | 7.98 | 2.92 | |
| LQJ-SC-6-30 | 300 | 1300 | 800 | 10.13 | 4.52 | |
| LQJ-SC-6-40 | 400 | 1400 | 900 | 11.90 | 8.46 | |
| LQJ-SC-11-20 | 200 | 110 | 1200 | 700 | 9.62 | 2.93 |
| LQJ-SC-11-30 | 300 | 1300 | 800 | 11.82 | 4.52 | |
| LQJ-SC-11-40 | 400 | 1400 | 900 | 14.64 | 8.46 | |
| LQJ-SC-11-50 | 500 | 1500 | 1000 | 21.26 | 11.22 | |
| LQJ-SC-11-60 | 600 | 1600 | 1100 | 25.04 | 12.54 | |
| LQJ-SC-11-80 | 800 | 1800 | 1200 | 33.11 | 24.11 | |
| LQJ-SC-11-100 | 1000 | 2000 | 1300 | 44.22 | 28.83 | |
| LQJ-SC-14-40 | 400 | 140 | 1400 | 900 | 14.90 | 8.46 |
| LQJ-SC-14-50 | 600 | 1600 | 1100 | 22.71 | 12.45 | |
| LQJ-SC-14-60 | 800 | 1800 | 1300 | 33.29 | 24.11 | |
| LQJ-SC-14-80 | 1000 | 2000 | 1500 | 44.52 | 28.83 | |
| LQJ-SC-14-100 | 400 | 180 | 1400 | 900 | 17.25 | 8.46 |
| LQJ-SC-18-60 | 600 | 1600 | 1100 | 24.05 | 12.54 | |
| LQJ-SC-18-80 | 800 | 1800 | 1300 | 34.73 | 24.11 | |
| LQJ-SC-18-100 | 1000 | 2000 | 1500 | 44.67 | 28.83 | |
| LQJ-SC-20-40 | 400 | 200 | 1400 | 900 | 22.36 | 8.46 |
| LQJ-SC-20-60 | 600 | 1600 | 1100 | 46.52 | 12.54 | |
| LQJ-SC-20-80 | 800 | 1800 | 1300 | 43.88 | 24.11 | |
| LQJ-SC-20-100 | 1000 | 2000 | 1500 | 56.85 | 28.83 |
LQJ-Sc4 Horizontal cross
| Model | B | H | L R=300 | (kg) | Cover |
| LQJ-ST4-6-10 | 100 | 60 | 1100 | 8.10 | 2.10 |
| LQJ-ST4-6-20 | 200 | 1200 | 10.74 | 4.05 | |
| LQJ-ST4-6-30 | 300 | 1300 | 13.44 | 6.27 | |
| LQJ-ST4-6-40 | 400 | 1400 | 16.70 | 11.73 | |
| LQJ-ST4-11-20 | 200 | 110 | 1200 | 12.71 | 4.05 |
| LQJ-ST4-11-30 | 300 | 1300 | 15.39 | 6.27 | |
| LQJ-ST4-11-40 | 400 | 1400 | 18.65 | 11.73 | |
| LQJ-ST4-11-50 | 500 | 1500 | 24.23 | 15.60 | |
| LQJ-ST4-11-60 | 600 | 1600 | 28.05 | 21.78 | |
| LQJ-ST4-11-80 | 800 | 1800 | 41.84 | 33.48 | |
| LQJ-ST4-11-100 | 1000 | 2000 | 53.82 | 40.09 | |
| LQJ-ST4-14-40 | 400 | 140 | 1400 | 18.96 | 11.73 |
| LQJ-ST4-14-50 | 600 | 1600 | 28.35 | 21.78 | |
| LQJ-ST4-14-60 | 800 | 1800 | 41.84 | 33.48 | |
| LQJ-ST4-14-80 | 1000 | 2000 | 54.12 | 40.09 | |
| LQJ-ST4-14-100 | 400 | 180 | 1400 | 19.05 | 11.73 |
| LQJ-ST4-18-60 | 600 | 1600 | 28.44 | 21.78 | |
| LQJ-ST4-18-80 | 800 | 1800 | 41.93 | 33.48 | |
| LQJ-ST4-18-100 | 1000 | 2000 | 54.21 | 40.09 | |
| LQJ-ST4-20-40 | 400 | 200 | 1400 | 27.96 | 11.73 |
| LQJ-ST4-20-60 | 600 | 1600 | 38.66 | 21.78 | |
| LQJ-ST4-20-80 | 800 | 1800 | 53.84 | 33.48 | |
| LQJ-ST4-20-100 | 1000 | 2000 | 68.07 | 40.09 |

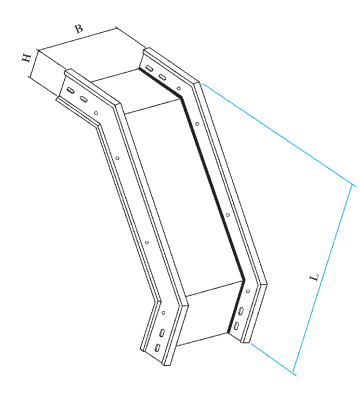

LQJ-TRC vertical Elbow
| Model | B | H | L R=300 R=600 | (kg) | Cover | |||
| LQJ-TRC-6-10 | 100 | 60 | 560 | 860 | 1.82 | 2.21 | 0.91 | 1.32 |
| LQJ-TRC-6-20 | 200 | 2.66 | 4.40 | 1.48 | 2.15 | |||
| LQJ-TRC-6-30 | 300 | 3.47 | 5.72 | 2.05 | 2.98 | |||
| LQJ-TRC-6-40 | 400 | 4.31 | 6.96 | 3.49 | 5.08 | |||
| LQJ-TRC-11-20 | 200 | 110 | 610 | 910 | 3.32 | 4.85 | 1.62 | 2.29 |
| LQJ-TRC-11-30 | 300 | 4.13 | 6.17 | 2.24 | 3.18 | |||
| LQJ-TRC-11-40 | 400 | 4.92 | 7.41 | 3.81 | 5.43 | |||
| LQJ-TRC-11-50 | 500 | 6.57 | 10.01 | 4.66 | 6.63 | |||
| LQJ-TRC-11-60 | 600 | 7.85 | 11.48 | 6.86 | 9.76 | |||
| LQJ-TRC-11-80 | 800 | 10.88 | 16.64 | 8.95 | 12.73 | |||
| LQJ-TRC-11-100 | 1000 | 13.17 | 20.25 | 11.02 | 15.78 | |||
| LQJ-TRC-14-40 | 400 | 140 | 640 | 940 | 4.92 | 7.71 | 3.91 | 5.53 |
| LQJ-TRC-14-50 | 600 | 7.50 | 11.78 | 7.11 | 10.01 | |||
| LQJ-TRC-14-60 | 800 | 10.91 | 16.91 | 9.27 | 13.05 | |||
| LQJ-TRC-14-80 | 1000 | 13.32 | 20.51 | 11.42 | 16.18 | |||
| LQJ-TRC-14-100 | 400 | 180 | 680 | 980 | 4.97 | 7.77 | 4.22 | 5.84 |
| LQJ-TRC-18-60 | 600 | 7.55 | 11.84 | 7.57 | 10.47 | |||
| LQJ-TRC-18-80 | 800 | 10.95 | 16.97 | 9.87 | 13.65 | |||
| LQJ-TRC-18-100 | 1000 | 13.37 | 20.57 | 12.15 | 16.91 | |||
| LQJ-TRC-20-40 | 400 | 200 | 700 | 1000 | 8.13 | 11.46 | 4.34 | 5.96 |
| LQJ-TRC-20-60 | 600 | 10.80 | 16.13 | 7.78 | 10.68 | |||
| LQJ-TRC-20-80 | 800 | 14.45 | 21.78 | 10.15 | 13.93 | |||
| LQJ-TRC-20-100 | 1000 | 17.07 | 25.92 | 12.50 | 17.26 | |||
LQJ-ARC Verical Elbow
| Model | B | H | L R=300 R=600 | (kg) | Cover | |||
| LQJ-ART-6-10 | 100 | 60 | 560 | 860 | 1.88 | 2.27 | 0.81 | 1.22 |
| LQJ-ART-6-20 | 200 | 2.76 | 4.50 | 1.32 | 1.99 | |||
| LQJ-ART-6-30 | 300 | 3.65 | 5.90 | 1.83 | 2.76 | |||
| LQJ-ART-6-40 | 400 | 4.26 | 7.20 | 3.09 | 4.71 | |||
| LQJ-ART-11-20 | 200 | 110 | 610 | 910 | 3.53 | 4.19 | 1.32 | 1.99 |
| LQJ-ART-11-30 | 300 | 4.44 | 6.48 | 1.82 | 2.76 | |||
| LQJ-ART-11-40 | 400 | 5.36 | 7.85 | 3.09 | 4.71 | |||
| LQJ-ART-11-50 | 500 | 7.31 | 10.73 | 3.76 | 5.73 | |||
| LQJ-ART-11-60 | 600 | 8.45 | 12.30 | 5.54 | 8.44 | |||
| LQJ-ART-11-80 | 800 | 12.33 | 18.08 | 7.23 | 11.01 | |||
| LQJ-ART-11-100 | 1000 | 13.30 | 22.07 | 8.90 | 13.66 | |||
| LQJ-ART-14-40 | 400 | 140 | 640 | 940 | 5.48 | 8.25 | 3.09 | 4.71 |
| LQJ-ART-14-50 | 600 | 8.60 | 12.89 | 5.54 | 8.44 | |||
| LQJ-ART-14-60 | 800 | 12.75 | 18.78 | 7.23 | 11.01 | |||
| LQJ-ART-14-80 | 1000 | 15.63 | 22.88 | 8.9 | 13.66 | |||
| LQJ-ART-14-100 | 400 | 180 | 680 | 980 | 4.97 | 7.77 | 3.09 | 4.71 |
| LQJ-ART-18-60 | 600 | 7.55 | 11.84 | 5.54 | 8.44 | |||
| LQJ-ART-18-80 | 800 | 10.95 | 16.97 | 7.23 | 11.01 | |||
| LQJ-ART-18-100 | 1000 | 13.37 | 20.57 | 8.90 | 13.66 | |||
| LQJ-ART-20-40 | 400 | 200 | 700 | 1000 | 8.64 | 12.21 | 3.09 | 4.71 |
| LQJ-ART-20-60 | 600 | 12.38 | 17.63 | 5.54 | 8.44 | |||
| LQJ-ART-20-80 | 800 | 17.09 | 24.30 | 7.23 | 11.01 | |||
| LQJ-ART-20-100 | 1000 | 20.39 | 29.09 | 8.90 | 13.66 | |||

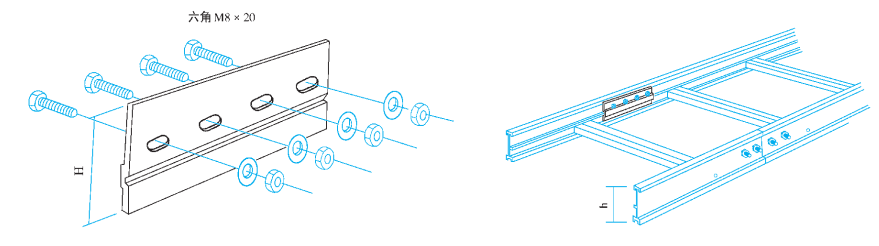

Connector Model LQJ-FJ- 01 A B C
| Model | h | H | unit/pc | Remark |
| LQJ-FJ-01A-60 | 60 | 46 | 9.80 | 4 holes in connectors |
| LQJ-FJ-01A-110 | 110 | 96 | 13.80 | |
| LQJ-FJ-01B-140 | 140 | 126 | 19.50 | |
| LQJ-FJ-01C-180 | 180 | 164 | 24.20 | 8 holes in connectors |
| LQJ-FJ-01C-200 | 200 | 184 | 28.50 |
Width Modulator Model LQJ-FJ-03
Model | Height | L | unit/price($) | Model | Height | L | unit/price($) | ||
| h | H | h | H | ||||||
| LQJ-FJ-03-1 | 60 | 47 | 50 | 6.60 | LQJ-FJ-03-19 | 180 | 165 | 100 | 37.20 |
| LQJ-FJ-03-2 | 100 | 9.80 | LQJ-FJ-03-20 | 150 | 46.20 | ||||
| LQJ-FJ-03-3 | 150 | 13.00 | LQJ-FJ-03-21 | 200 | 55.20 | ||||
| LQJ-FJ-03-4 | 200 | 16.20 | LQJ-FJ-03-22 | 300 | 64.20 | ||||
| LQJ-FJ-03-5 | 300 | 21.80 | LQJ-FJ-03-23 | 200 | 185 | 50 | 32.30 | ||
| LQJ-FJ-03-6 | 110 | 90 | 50 | 9.20 | LQJ-FJ-03-24 | 100 | 41.30 | ||
| LQJ-FJ-03-7 | 100 | 13.70 | LQJ-FJ-03-25 | 150 | 50.30 | ||||
| LQJ-FJ-03-8 | 150 | 18.20 | LQJ-FJ-03-26 | 200 | 59.30 | ||||
| LQJ-FJ-03-9 | 200 | 22.70 | LQJ-FJ-03-27 | 300 | 68.30 | ||||
| LQJ-FJ-03-10 | 250 | 27.20 | Remark4 holes in connectors of width modulator with a height of 60mm 110mm and 140mm.8 holes in connectors of width modulatorwith a height of 180mm and 200mm. | ||||||
| LQJ-FJ-03-11 | 300 | 31.70 | |||||||
| LQJ-FJ-03-12 | 400 | 36.20 | |||||||
| LQJ-FJ-03-13 | 140 | 127 | 50 | 18.00 | |||||
| LQJ-FJ-03-14 | 100 | 27.10 | |||||||
| LQJ-FJ-03-15 | 150 | 36.00 | |||||||
| LQJ-FJ-03-16 | 200 | 45.00 | |||||||
| LQJ-FJ-03-17 | 300 | 54.00 | |||||||
| LQJ-FJ-03-18 | 50 | 28.20 | |||||||

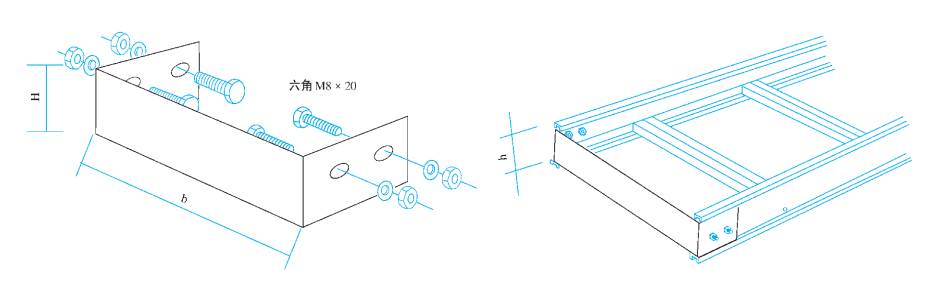

End Blockate Model LQJ-FJ-04
| Model | hHeight | H | b | (kg)Weight | Remarrk |
| LQJ-FJ-04-1 | 60 | 47 | 105 | 0.08 | 4 holes in connectors of width modulator with a height of 180mm and 200mm. |
| LQJ-FJ-04-2 | 205 | 0.15 | |||
| LQJ-FJ-04-3 | 305 | 0.23 | |||
| LQJ-FJ-04-4 | 405 | 0.30 | |||
| LQJ-FJ-04-5 | 110 | 97 | 205 | 0.33 | |
| LQJ-FJ-04-6 | 305 | 0.50 | |||
| LQJ-FJ-04-7 | 405 | 0.66 | |||
| LQJ-FJ-04-8 | 505 | 0.83 | |||
| LQJ-FJ-04-9 | 605 | 0.97 | |||
| LQJ-FJ-04-10 | 805 | 1.31 | |||
| LQJ-FJ-04-11 | 1005 | 1.64 | |||
| LQJ-FJ-04-12 | 140 | 127 | 405 | 1.22 | |
| LQJ-FJ-04-13 | 605 | 1.82 | |||
| LQJ-FJ-04-14 | 805 | 2.42 | |||
| LQJ-FJ-04-15 | 1005 | 3.02 | |||
| LQJ-FJ-04-16 | 180 | 165 | 405 | 1.16 | 8 holes in connectors of width modulator with a height of 60mm 110mm and140mm. |
| LQJ-FJ-04-17 | 605 | 1.73 | |||
| LQJ-FJ-04-18 | 805 | 2.29 | |||
| LQJ-FJ-04-19 | 1005 | 2.87 | |||
| LQJ-FJ-04-20 | 200 | 185 | 405 | 1.28 | |
| LQJ-FJ-04-21 | 605 | 1.91 | |||
| LQJ-FJ-04-22 | 805 | 2.54 | |||
| LQJ-FJ-04-23 | 1005 | 3.17 |

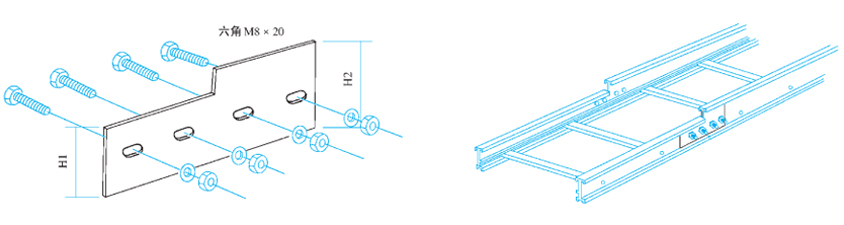

Height Modvlator Model LQJ-FJ-05
| Model | H₁ | H₂ | unit/price | Remark |
| LQJ-FJ-05-60/110 | 47 | 97 | 10.60 | From 60mm to 100mm |
| LQJ-FJ-05-60/140 | 47 | 127 | 15.10 | From 60mm to 140mm |
| LQJ-FJ-05-110/140 | 97 | 127 | 17.10 | From 110mm to 140mm |
| LQJ-FJ-05-140/180 | 127 | 165 | 21.80 | From 140mm to 180mm |
| LQJ-FJ-05-180/200 | 165 | 185 | 27.30 | From 180mm to 200mm |

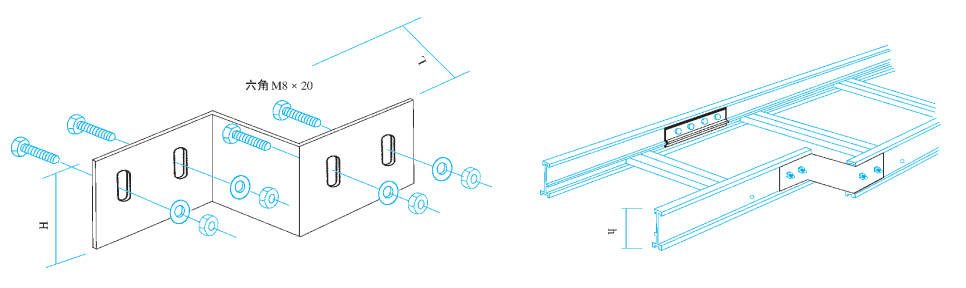

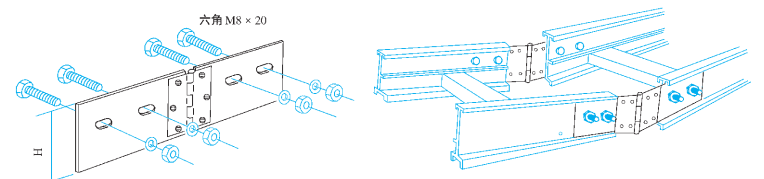

Angle Modvlator Model LQJ-FJ-05
| Model | H | unit/price | Remark |
| LQJ-FJ-06-60 | 47 | 18.10 | 4 holes in connectors |
| LQJ-FJ-06-110 | 97 | 31.20 | |
| LQJ-FJ-06-140 | 127 | 36.80 | |
| LQJ-FJ-06-180 | 165 | 42.70 | 8 holes in connectors |
| LQJ-FJ-06-200 | 185 | 48.30 |

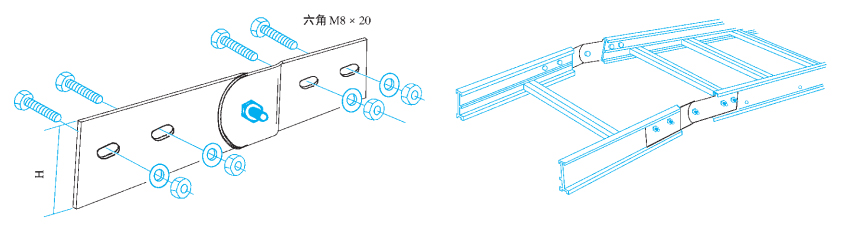

Horizontal Cornerninge Model LQJ-FJ-08
| Model | H | unit/price | Remark |
| LQJ-FJ-08-60 | 47 | 20.20 | 4 holes in connectors |
| LQJ-FJ-08-110 | 97 | 24.80 | |
| LQJ-FJ-08-140 | 127 | 35.80 | |
| LQJ-FJ-08-180 | 165 | 41.80 | 8 holes in connectors |
| LQJ-FJ-08-200 | 185 | 63.20 |

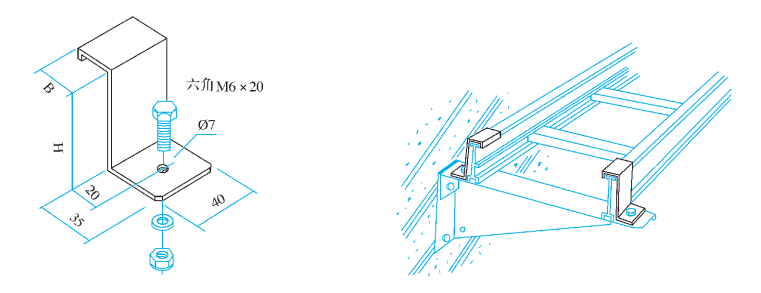

S-clamp Model LQJ-FJ-09
| Model | B | H | unit/price | Remark |
| LQJ-FJ-09-60 | 27 | 59.5 | 8.10 | 4 holes in connectors |
| LQJ-FJ-09-110 | 109.5 | 12.80 | ||
| LQJ-FJ-09-140 | 139.5 | 14.56 | ||
| LQJ-FJ-09-180 | 33 | 174.5 | 17.28 | 8 holes in connectors |
| LQJ-FJ-05-200 | 199.5 | 18.72 |

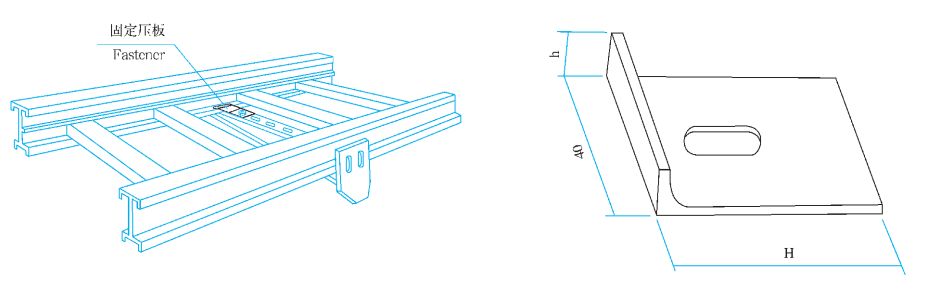

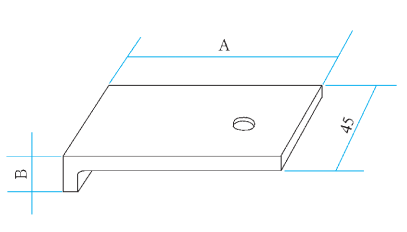

Fastenter Model LQJ-FJ- 10
 Model | H | h | unit/price | Remark |
| LQJ-FJ-10-1 | 43 | 14 | 4.8 | For 60、110、140 |
| LQJ-FJ-10-2 | 46 | 16 | 5.6 | for 180、200 |

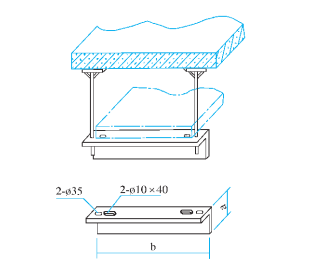

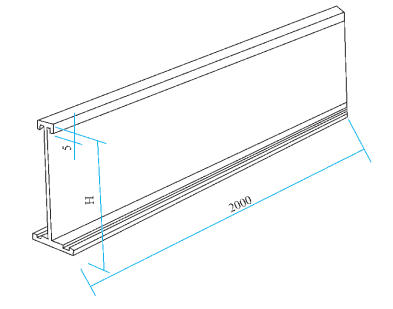

Separating Plate Model LQJ-FJ- 11
| Model | H | (kg) Weight |
| LQJ-FJ-11-60 | 37 | 1.62 |
| LQJ-FJ-11-110 | 87 | 2.67 |
| LQJ-FJ-11-140 | 117 | 3.30 |
| LQJ-FJ-11-180 | 157 | 4.20 |
| LQJ-FJ-11-200 | 177 | 4.58 |

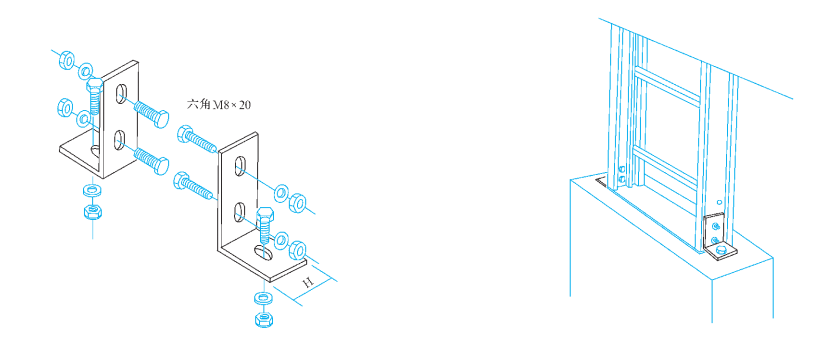

Holding-up Frames Model LQJ-FJ- 12
| Model | H | unit/price | Remark |
| LQJ-FJ-12-60 | 47 | 7.68 | 3 holes in connectors |
| LQJ-FJ-12-110 | 97 | 16.00 | |
| LQJ-FJ-12-140 | 127 | 20.80 | |
| LQJ-FJ-12-180 | 165 | 27.20 | 5 holes in connectors |
| LQJ-FJ-12-200 | 185 | 30.40 |

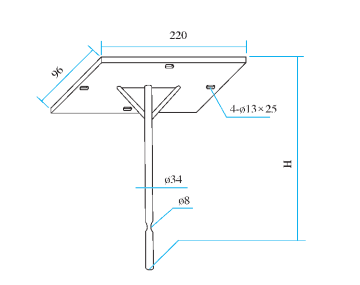

Suspending Lustellation Model LQJ-FJ- 13
| Model | Unit Price | Remark |
| LQJ-FJ-13-1 | 28.50 | for 60、110、140 |
| LQJ-FJ-13-2 | 31.60 | for 180、200 |

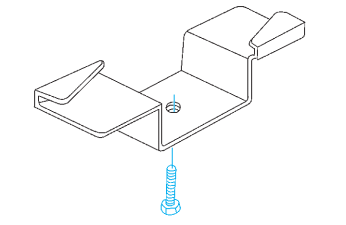

Convex Clip Model LQJ-FJ- 18
| Model | Unit Price | Remark |
| LQJ-FJ-18-1 | 67.5 | for 60、110、140 |
| LQJ-FJ-18-2 | 68.3 | for 180、200 |
Insulator Model LQJ-FJ- 19
| Model | UnitPrice | Remark |
| LQJ-FJ-19-1 | 4.6 | for 60、110、140 |
| LQJ-FJ-19-2 | 5.2 | for 180、200 |
Insulator Model LQJ-FJ-20
| Model | Unit Price | Remark |
| LQJ-FJ-20-1 | 2.4 | for 60、110、140 |
| LQJ-FJ-20-2 | 2.8 | for 180、200 |

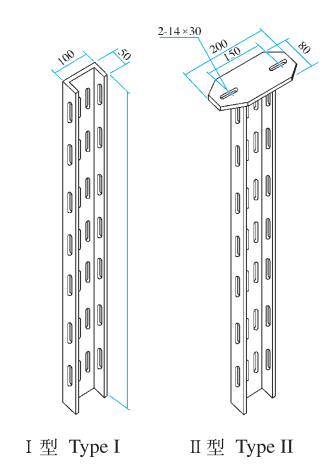

XQJ-LQJ-H-01A E-channel column Model LQJ-H- 01A
| Model | Specification | Wt kg/pc | Remark |
| LQJ-H-01A-3 | 300 | 1.30 | Additional 1kgper piece forType Ⅱ |
| LQJ-H-01A-5 | 500 | 2.16 | |
| LQJ-H-01A-8 | 800 | 3.46 | |
| LQJ-H-01A-10 | 1000 | 4.32 | |
| LQJ-H-01A-15 | 1500 | 6.48 | |
| LQJ-H-01A-20 | 2000 | 8.64 |

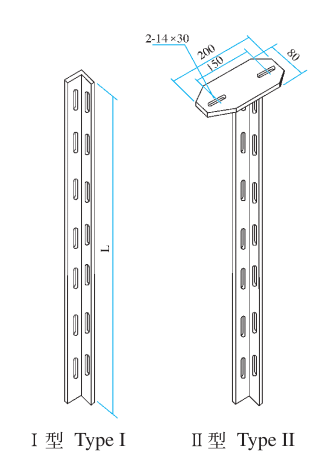

E-channel Column Model LQJ-H- 01B
| Model | Specification | Wt kg/pc | Remark |
| LQJ-H-01B-3 | 300 | 0.9 | Additional lkg per piece for Type Ⅱ |
| LQJ-H-01B-5 | 500 | 1.15 | |
| LQJ-H-01B-8 | 800 | 2 | |
| LQJ-H-01B-10 | 1000 | 3.05 | |
| LQJ-H-01B-15 | 1500 | 4.2 | |
| LQJ-H-01B-20 | 2000 | 5.9 |

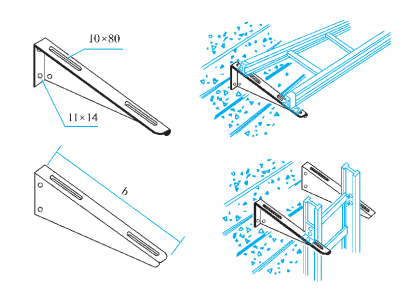

Corbel Model LQJ-TB-01
| Model | Specification | Wt kg/pc | Remark |
| LQJ-TB-01-150 | 250 | 0.77 | Linked tobolts M12 |
| LQJ-TB-01-200 | 300 | 0.83 | |
| LQJ-TB-01-300 | 400 | 0.97 | |
| LQJ-TB-01-400 | 500 | 1.15 | |
| LQJ-TB-01-500 | 600 | 1.38 | |
| LQJ-TB-01-600 | 700 | 1.61 | |
| LQJ-TB-01-800 | 900 | 2.08 | |
| LQJ-TB-01-1000 | 1100 | 2.68 |

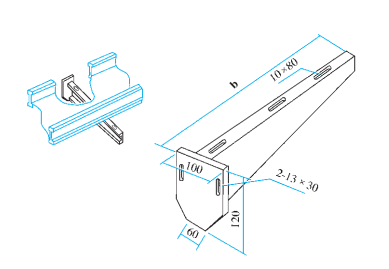

Corbel Model LQJ-TB-02
| Model | Specification | Wt kg/pc | Remark |
| LQJ-TB-02-150 | 250 | 2.4 | Linked tobolts M12 |
| LQJ-TB-02-200 | 300 | 2.7 | |
| LQJ-TB-02-300 | 400 | 3.3 | |
| LQJ-TB-02-400 | 500 | 3.9 | |
| LQJ-TB-02-500 | 600 | 4.5 | |
| LQJ-TB-02-600 | 700 | 5.6 | |
| LQJ-TB-02-800 | 900 | 6.3 | |
| LQJ-TB-02-1000 | 1100 | 7.5 |

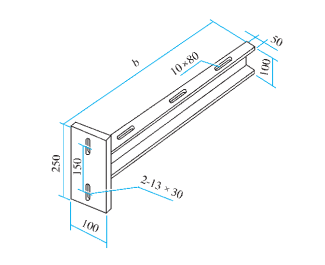

Corbel Model LQJ-TB-03
| Model | Specification | Wt kg/pc | Remark |
| LQJ-TB-03-150 | 250 | 0.59 | Linked tobolts M12×35 |
| LQJ-TB-03-200 | 300 | 0.62 | |
| LQJ-TB-03-300 | 400 | 0.85 | |
| LQJ-TB-03-400 | 500 | 1.08 | |
| LQJ-TB-03-500 | 600 | 1.31 | |
| LQJ-TB-03-600 | 700 | 1.54 | |
| LQJ-TB-03-800 | 900 | 2.01 | |
| LQJ-TB-03-1000 | 1100 | 2.46 |
Corbel Model LQJ-TB-04
| Model | Specification | Wt kg/pc | Remark |
| LQJ-TB-04-150 | 250 | 0.63 | Linked tobolts M8×25 |
| LQJ-TB-04-200 | 300 | 0.87 | |
| LQJ-TB-04-300 | 400 | 1.13 | |
| LQJ-TB-04-400 | 500 | 1.37 | |
| LQJ-TB-04-500 | 600 | 2.15 | |
| LQJ-TB-04-600 | 700 | 2.28 | |
| LQJ-TB-04-700 | 800 | 3.89 | |
| LQJ-TB-04-800 | 900 | 4.53 | |
| LQJ-TB-04-1000 | 1100 | 5.40 |

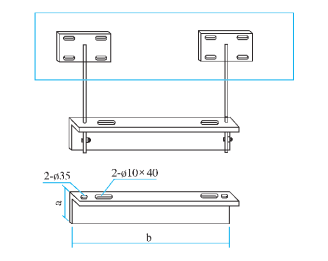

Cable Trays Beams and Sling Model XQJ-LQJ-H-02A-02B
| Model | b | a | Wtkg/pc |
| 02B-5 | 500 | 60 | 1.43 |
| 02B-6 | 600 | 60 | 1.72 |
| 02B-8 | 800 | 80 | 2.59 |
| 02B-10 | 1000 | 80 | 3.23 |
| 02B-12 | 1200 | 80 | 3.88 |
| Model | H | Wt kg/pc |
| 02A-5 | 500 | 2.68 |
| 02A-6 | 1000 | 4.59 |
| 02A-8 | 1500 | 6.50 |
| 02A-10 | 2000 | 8.42 |
| 02A-12 | 2500 | 10.33 |
Cable Trays Beams and Sling Model XQJ-LQJ-H-02B-02C
| Model | b | a | Wt kg/pc |
| 02B-5 | 500 | 60 | 1.43 |
| 02B-6 | 600 | 60 | 1.72 |
| 02B-8 | 800 | 80 | 2.59 |
| 02B-10 | 1000 | 80 | 3.23 |
| 02B-12 | 1200 | 80 | 3.88 |
| Model | H | Wt kg/pc |
| 02C-5 | 500 | 2.51 |
| 02C-6 | 1000 | 4.46 |
| 02C-8 | 1500 | 6.47 |
| 02C-10 | 2000 | 8.34 |
| 02C-12 | 2500 | 10.31 |
TYPES AND TECHNICAL PARAMETRES
1. LQJ Series of aluminum alloydridge frames can be divided into ladder-shaped and troughshaped ones, separately representedby T 、 C.
2. Ladder-shapped frames have function ofbeing venfilated, non dust-proof and non-disfurbance proof.
3. The cable tray Length is not more than 6 meters. When it is more than 6 meters, we may accept special orders.

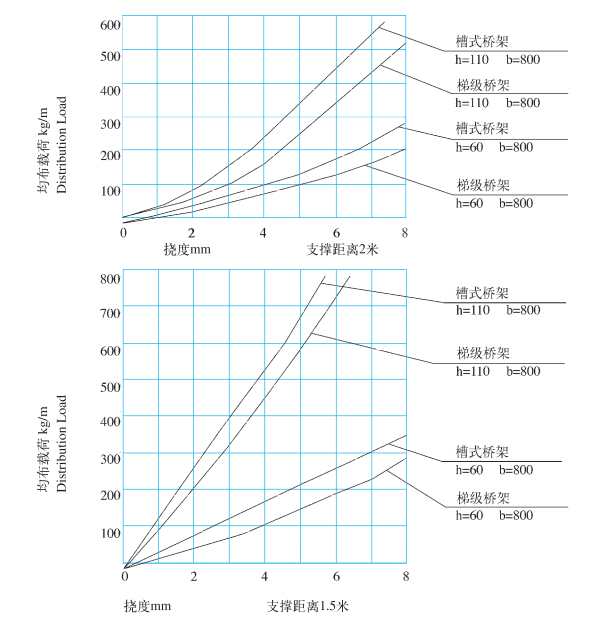

4. The functqdions ofthe ladder-shape, trough-shape refer to the following charts.
